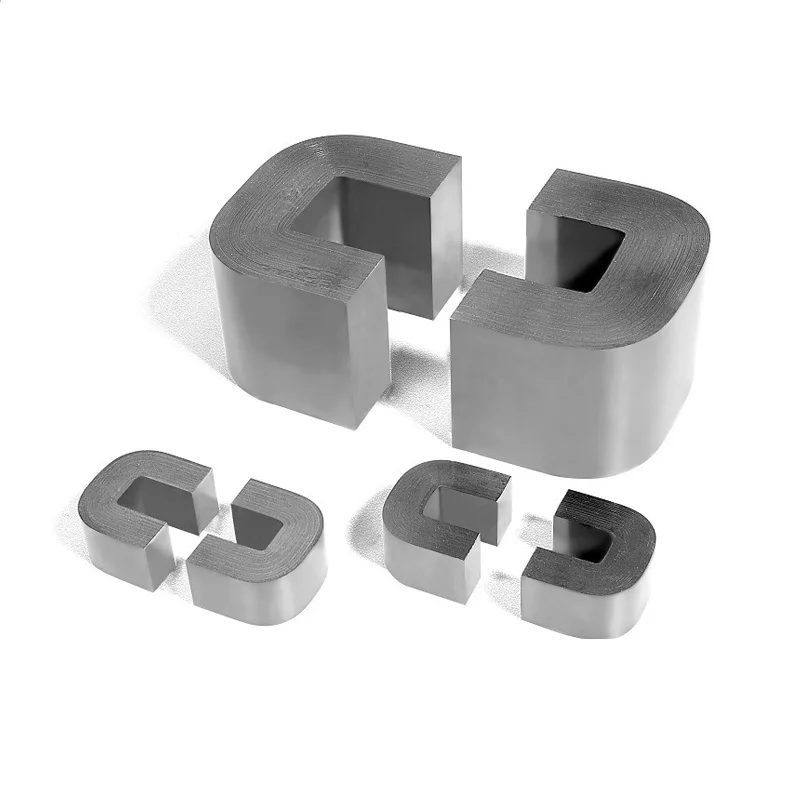

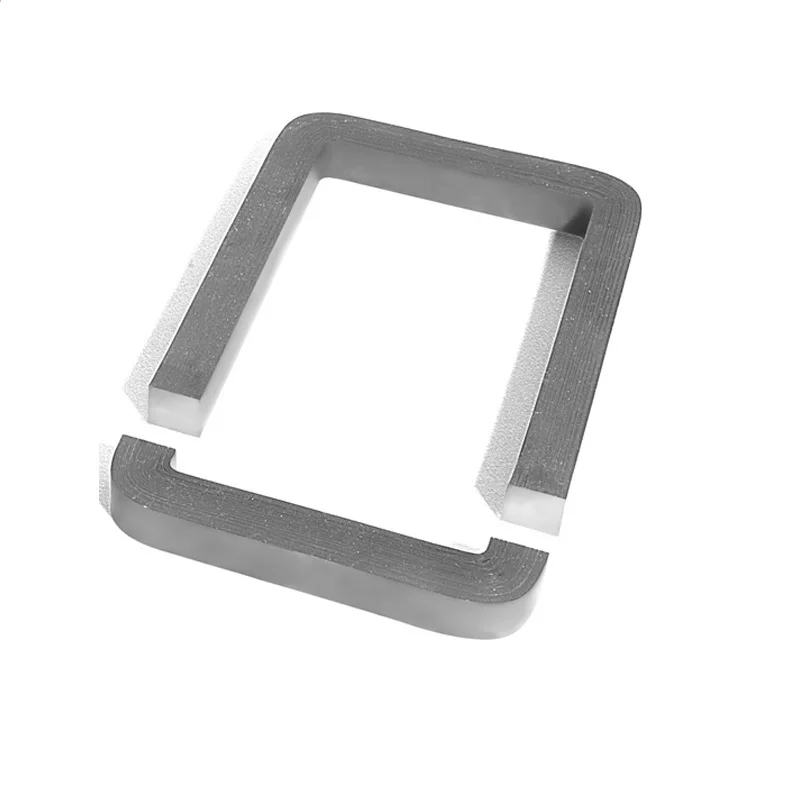

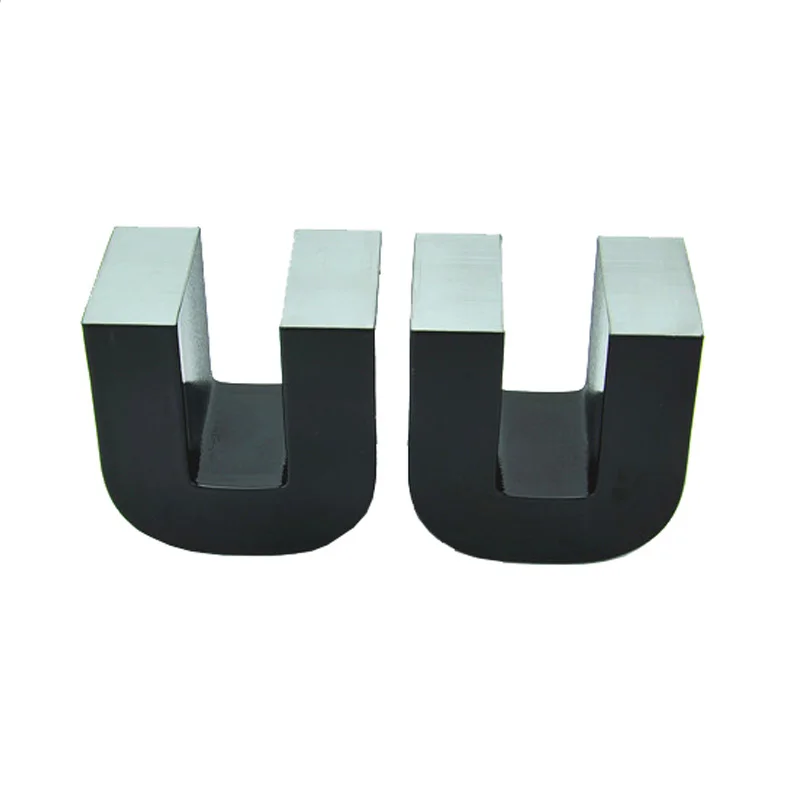

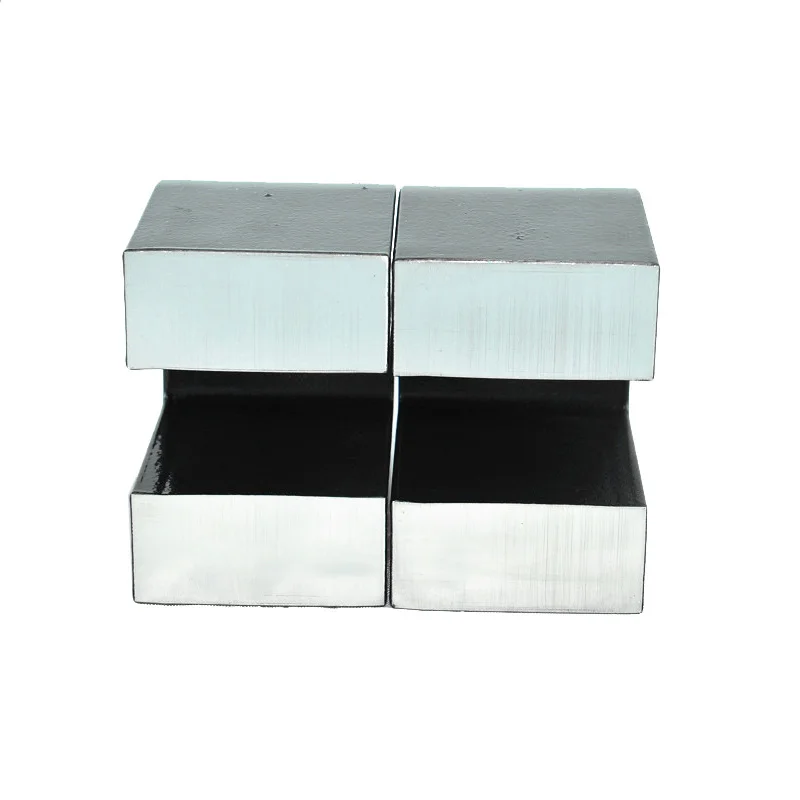

High Permeability Audio Transformer Nanocrystalline C Core
This premium nanocrystalline C core is specifically engineered for high-performance audio transformer applications, offering exceptional magnetic permeability and minimal core losses. The advanced nanocrystalline material structure ensures superior frequency response across the entire audio spectrum, making it ideal for high-fidelity sound equipment and professional audio devices. With its unique C-shaped design, this core provides excellent electromagnetic coupling and efficient power transfer, while minimizing signal distortion and maintaining audio clarity. The core's outstanding thermal stability and resistance to saturation make it perfect for both input and output transformers in audio amplifiers, mixing consoles, and other professional sound equipment. Its compact size and high efficiency help reduce overall device dimensions without compromising performance. Whether you're designing premium audio equipment or upgrading existing systems, this nanocrystalline C core delivers the exceptional performance demanded by audiophile-grade applications.
- Overview
- Recommended Products
Products Description
Material |
High quality CRGO steel with low iron-loss and high permeability |
Features |
Lower core loss, no
leakage magnetic flux,
excellent DC bias
characteristics, high
magnetic permeability
range from 250 to 1200.
|
Applications |
50Hz and 400Hz transformers.current transformers.chokes and other magnetic
components of
electronic equipments.
|
Manufacturing Process
Smashing → Laser-welding → Slitting →Winding →Chamfering→ Annealing → Varnish → Testing → Packing

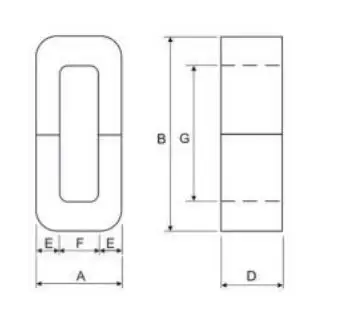

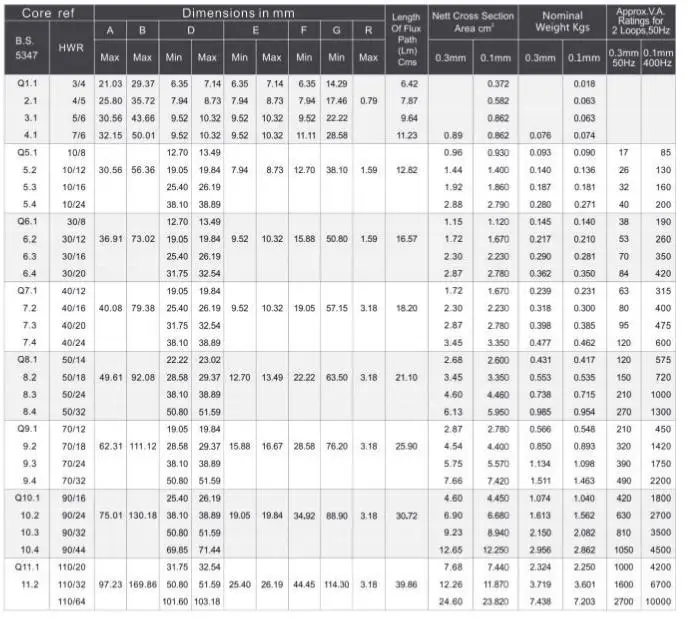

Product Paramenters
Model |
Core Size (MM) |
Finished Size (MM) |
Cross Area (cm2) |
Average Path Length(CM) |
One-turn Loop Independence AL(μH) 1Khz,0.25V |
||||||||
OD |
ID |
H |
OD |
ID |
H |
Ae |
Lm |
AL(min) |
|||||
EK0603 |
6.0 |
3.0 |
3.2 |
6.5 |
2.5 |
3.8 |
0.037 |
1.41 |
13.0 |
||||
EK0903 |
9.0 |
5.0 |
3.2 |
9.5 |
4.5 |
3.8 |
0.050 |
2.20 |
11.5 |
||||
EK1003 |
10.0 |
7.0 |
3.2 |
10.5 |
6.5 |
3.8 |
0.037 |
2.67 |
7.0 |
||||
EK1210 |
12.0 |
8.7 |
10.0 |
12.6 |
8.1 |
10.6 |
0.129 |
3.25 |
20.0 |
||||
EK1405 |
14.0 |
9.0 |
4.5 |
14.5 |
8.5 |
5.1 |
0.088 |
3.61 |
12.0 |
||||
EK2108 |
21.3 |
13.5 |
8.0 |
22.1 |
12.8 |
9.0 |
0.243 |
5.46 |
22.0 |
||||
EK4304 |
43.0 |
35.0 |
4.0 |
43.6 |
34.4 |
4.6 |
0.125 |
12.25 |
5.0 |
||||

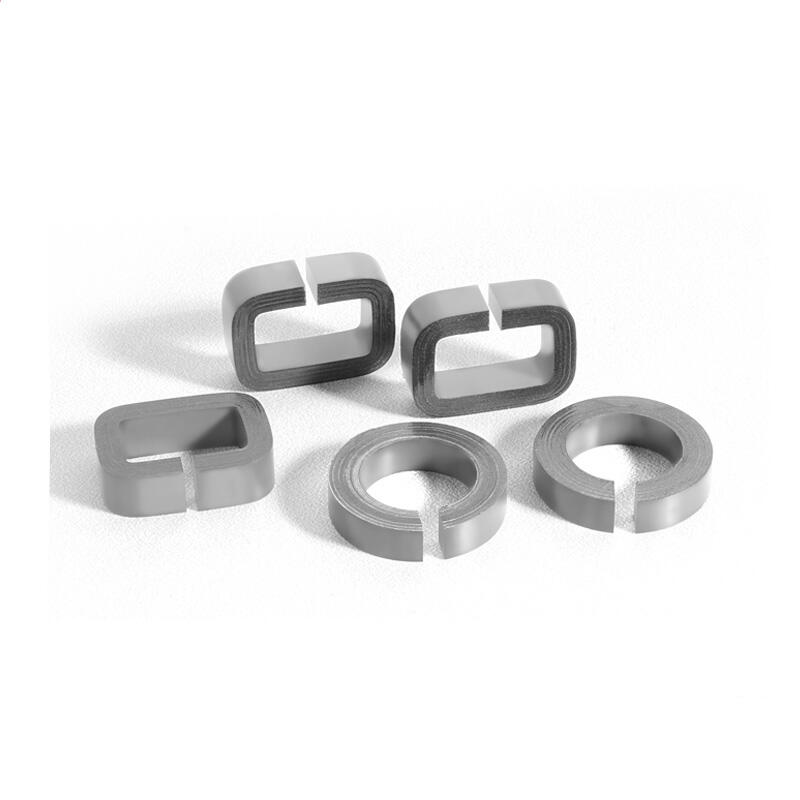

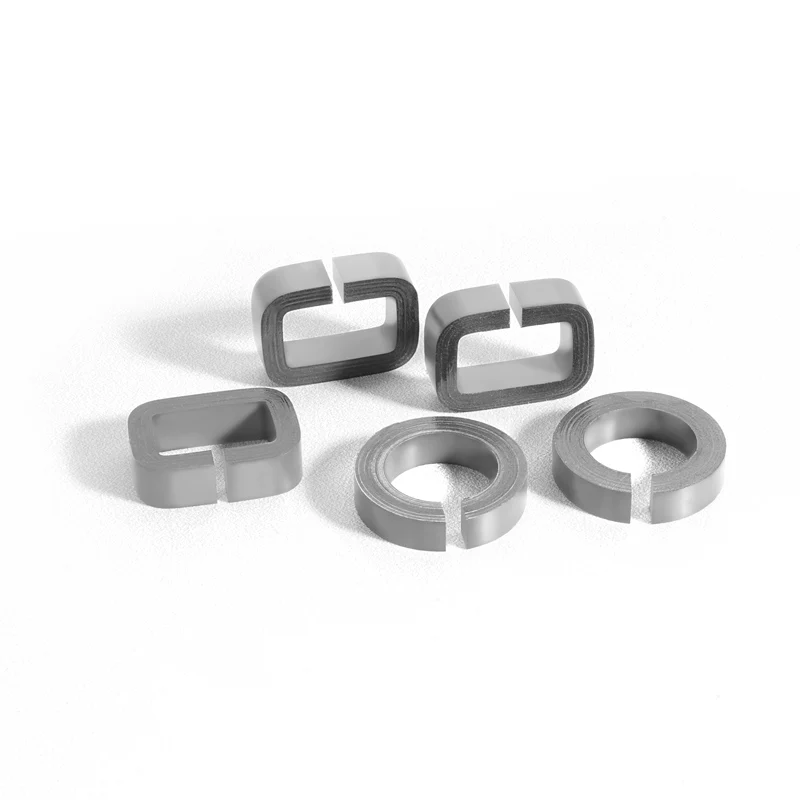

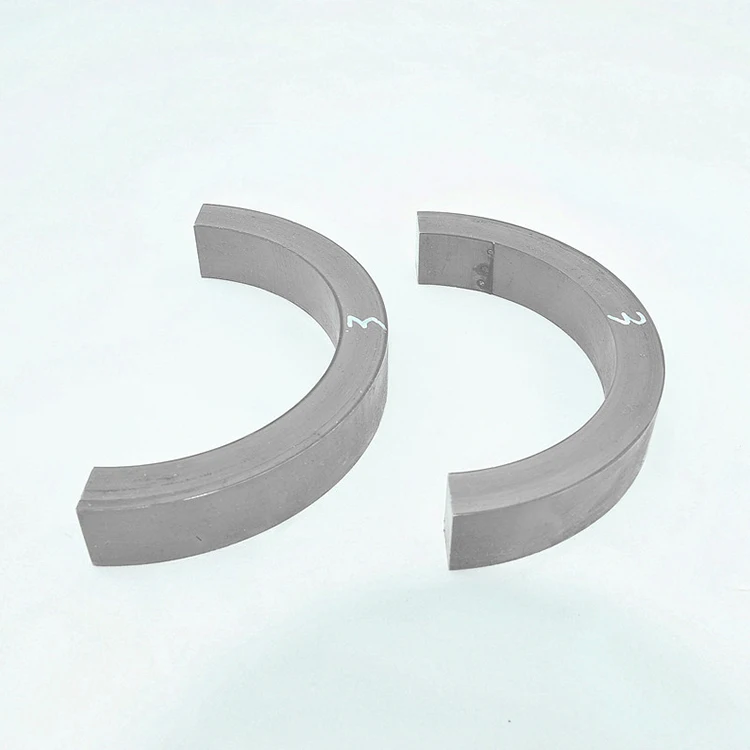

Two series of toroidal core
A series
B series core commonly used as a replacement of EI and other toroidal transformers with lower magnetic loss requirement.
Material thickness: 0.30mm, 0.27mm, 0.23mm
A round core wound by automatic machines with one continuous tape of CRGO silicon steel and annealed in a tunnel furnace under the protection of inert gases.
Material thickness: 0.30mm, 0.27mm, 0.23mm, 0.10mm, 0.08mm and 0.05mm.
B series
B series core commonly used as a replacement of EI and other toroidal transformers with lower magnetic loss requirement.
Material thickness: 0.30mm, 0.27mm, 0.23mm
Material
Product packaging
