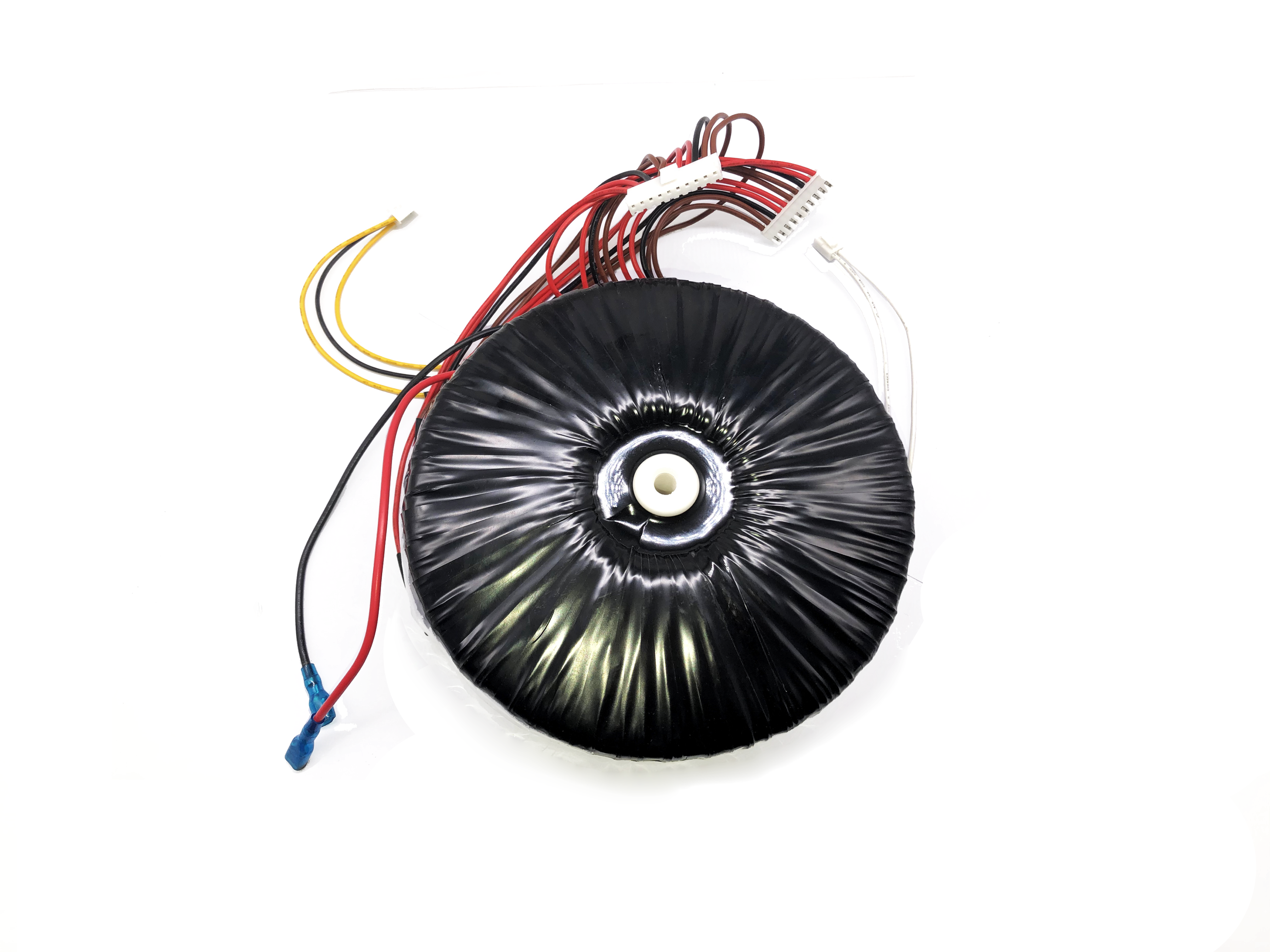

Power Transformer 300va 110v 220v for Audio Amplifier

This high-quality 300VA power transformer is specifically designed for audio amplifier applications, offering reliable voltage conversion between 110V and 220V. Built with premium copper windings and a robust steel core, it delivers clean, stable power while minimizing electromagnetic interference and hum. The transformer features excellent voltage regulation and thermal efficiency, making it ideal for both DIY audio projects and professional amplifier builds. Its compact design and standard mounting options allow for easy installation, while the fully enclosed construction provides enhanced safety and durability. Whether you're upgrading an existing amp or building a new system, this transformer ensures optimal performance for your audio equipment. Backed by rigorous quality testing, it maintains consistent output under varying load conditions and offers long-term reliability.

  • Overview
  • Recommended Products
cb136914ec2f5b1f76aac2f3755e9e0a.jpegphotobank.png11.jpgProduct Description
7aa2bb59ee5f77499c91805f00f29170.jpeg11e29d69778a74939a2d424e9832cde6.jpeg75ba1ac272105862633e32974d3a8438.jpegbad952dd4faa20780d344983cbcf8033.jpeg
Technical specifications:
* Input voltage: Customized
* Frequency: 50-60Hz
* Output voltage:Customized
* Test/insulating voltage:
4kV AC RMS
* Construction class: II
* Insulation class:
Ta 40°C/ class B (130°C),Class F(155°C), Class H(180°C)
* Ambient temp. (ta): 25°C
* Mounting:
Encapsulation With Housing

Power Transformer 300va 110v 220v for Audio Amplifier manufacture
*The parameter is only for reference as typical data, customized are welcomed.
*We are able to provide you 20VA to 25KVA toroidal transformer.
Rated Power (VA)
Voltage Regulation (%)
Efficiency (%)
Dimension(mm)
Weight (Kg)
Height(C)
Diameter(A)
30
16
83
30
80
0.60
100
11
88
42
100
1.30
150
7.30
90
45
115
1.85
200
6.2
91
53
123
2.30
250
5.60
92
53
128
2.60
300
5.30
93
55
135
3.00
400
4.60
94
60
140
3.80
500
4.30
95
66
146
4.50
800
4.0
95
85
160
7.00
1000
3.80
96
90
165
8.50
1200
3.30
96
95
168
9.00
1500
3.0
96
100
173
9.50
2000
2.90
96
110
183
13.00
4000
2.2
97
135
245
23.00
5000
2.1
98
145
270
28.00

Application:

Toroidal transformer are routinely replacing laminated frame types in the most demanding industry applications, including: medical, telecommunications, instrumentation, test equipment, lighting, process control, office and computer peripherals, audio and broadcast, as well as many others.
