EN
·Designed and tested according to EN61558.
·Up to 50% less weight than a similar conventional transformer
·Low magnetization currents and no- load losses
·Maximum ambient temperature ta=40℃/temperature class B(130℃)
R-type Transformer 220V to 110V/12V/24V. Low Noise Highly Efficient and Energy-saving Support Customization
- Premium Performance & Quiet Operation: High-grade materials + advanced winding tech, ultra-quiet running
- Superior Energy Efficiency: Reduces power consumption and lowers operating costs
- Compact & Durable Build: Space-saving design with excellent heat dissipation; robust for stable sensitive equipment use
- Customizable & Quality-Assured: Tailorable specs available; rigorous testing ensures long-term reliability in demanding environments
- Versatile Voltage Conversion: 220V input to 110V/12V/24V outputs, ideal for diverse electronic applications
- Overview
- Recommended Products
This versatile R-type transformer efficiently converts 220V input to multiple output options of 110V, 12V, or 24V, making it ideal for a wide range of electronic applications. Engineered with premium materials and advanced winding technology, it delivers exceptional performance while maintaining ultra-quiet operation. The transformer features superior energy efficiency to reduce power consumption and operating costs. Its robust construction ensures reliable voltage conversion and stable output for sensitive equipment. Perfect for industrial automation, lighting systems, and power supply applications. With customization options available, we can tailor the specifications to meet your exact requirements. The compact design saves installation space while providing excellent heat dissipation. Backed by rigorous quality testing, this transformer offers long-term durability and consistent performance in demanding environments.
Products Description
Products Description
Technical Data

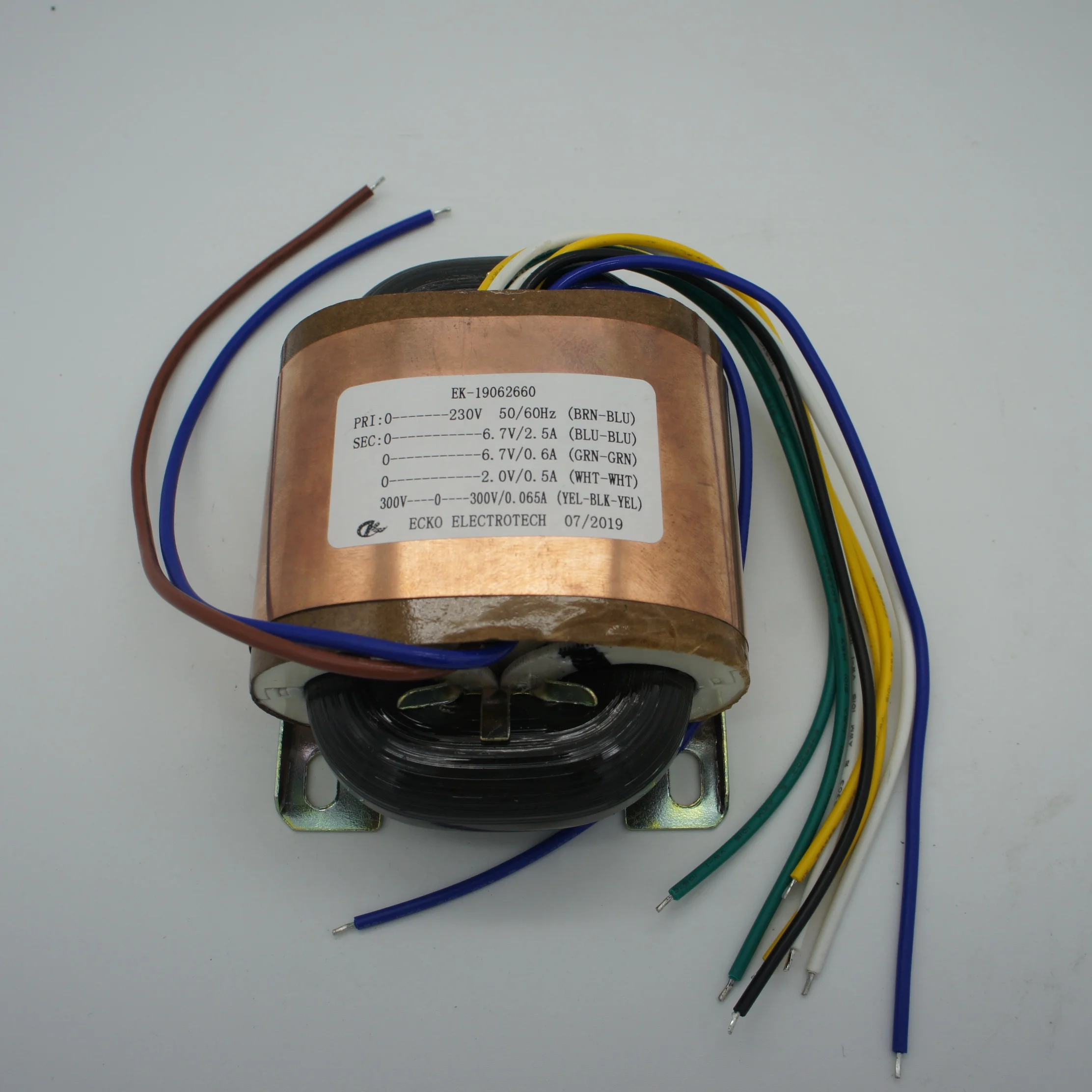

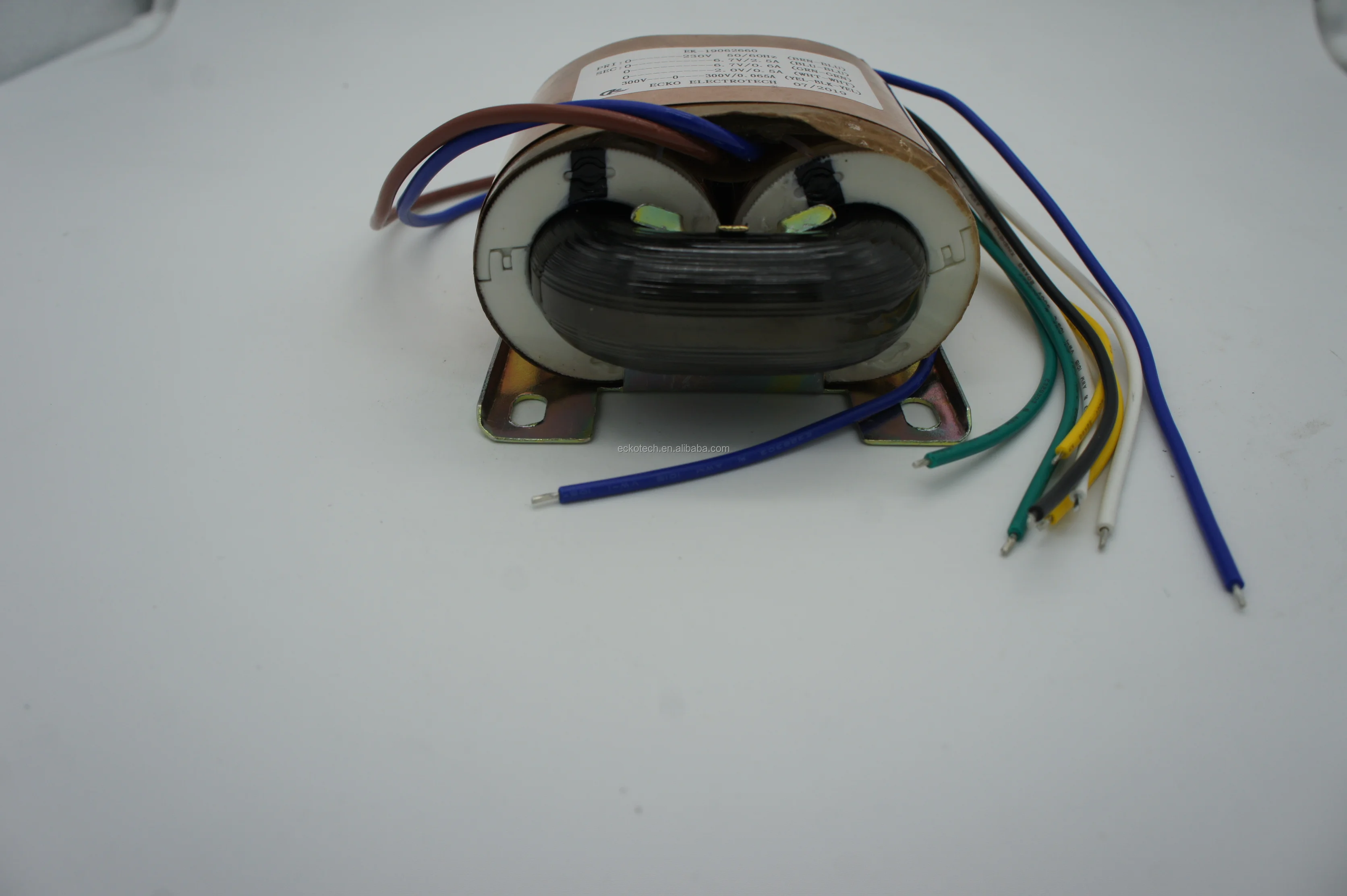

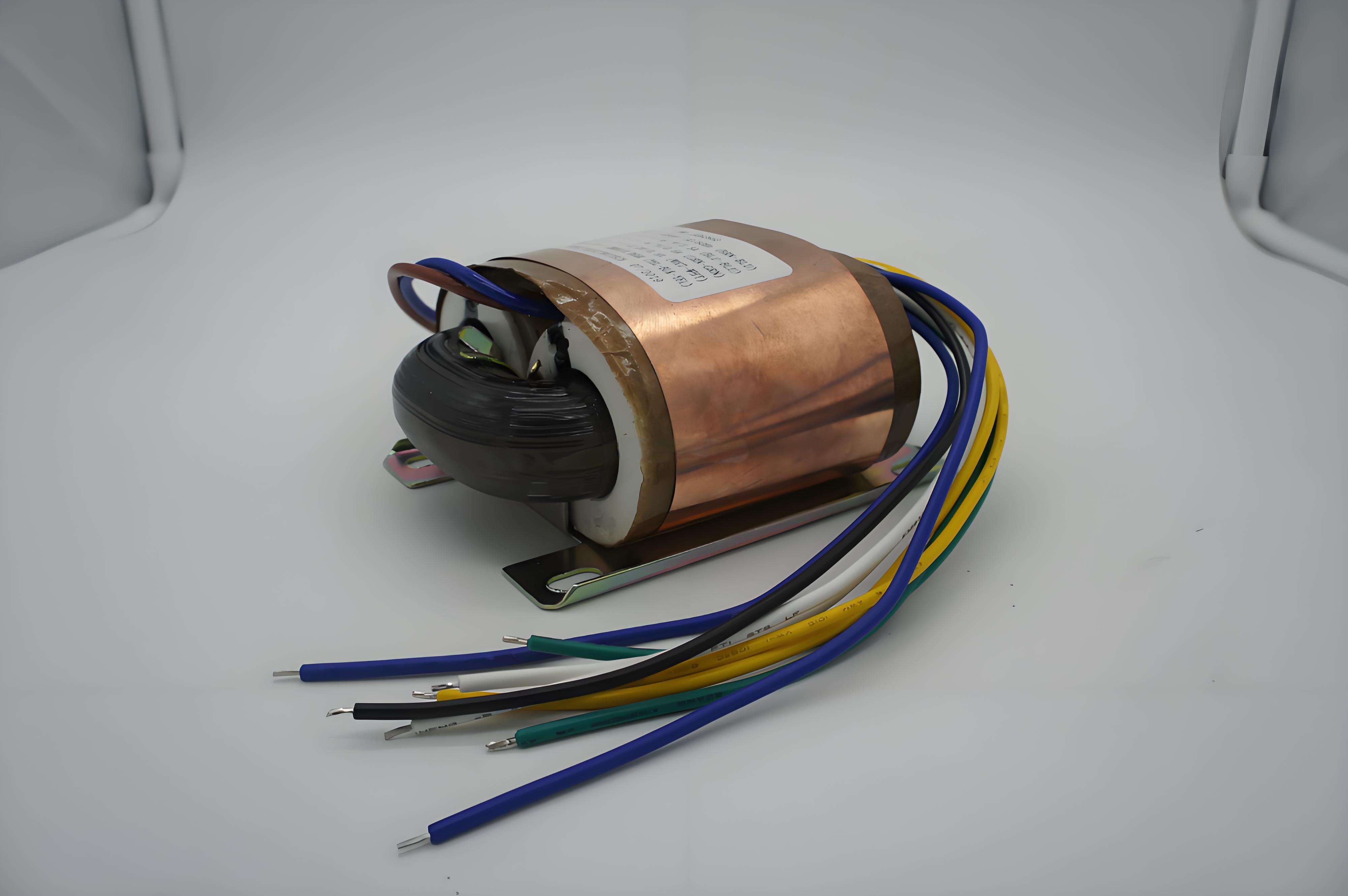

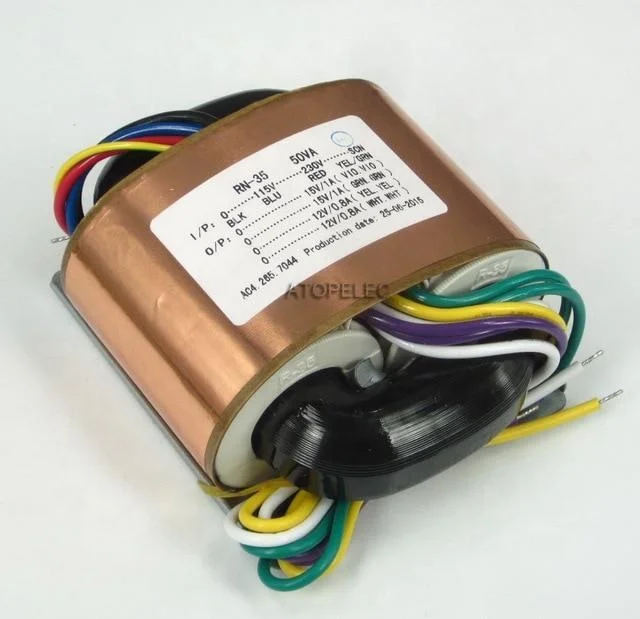

Details Images

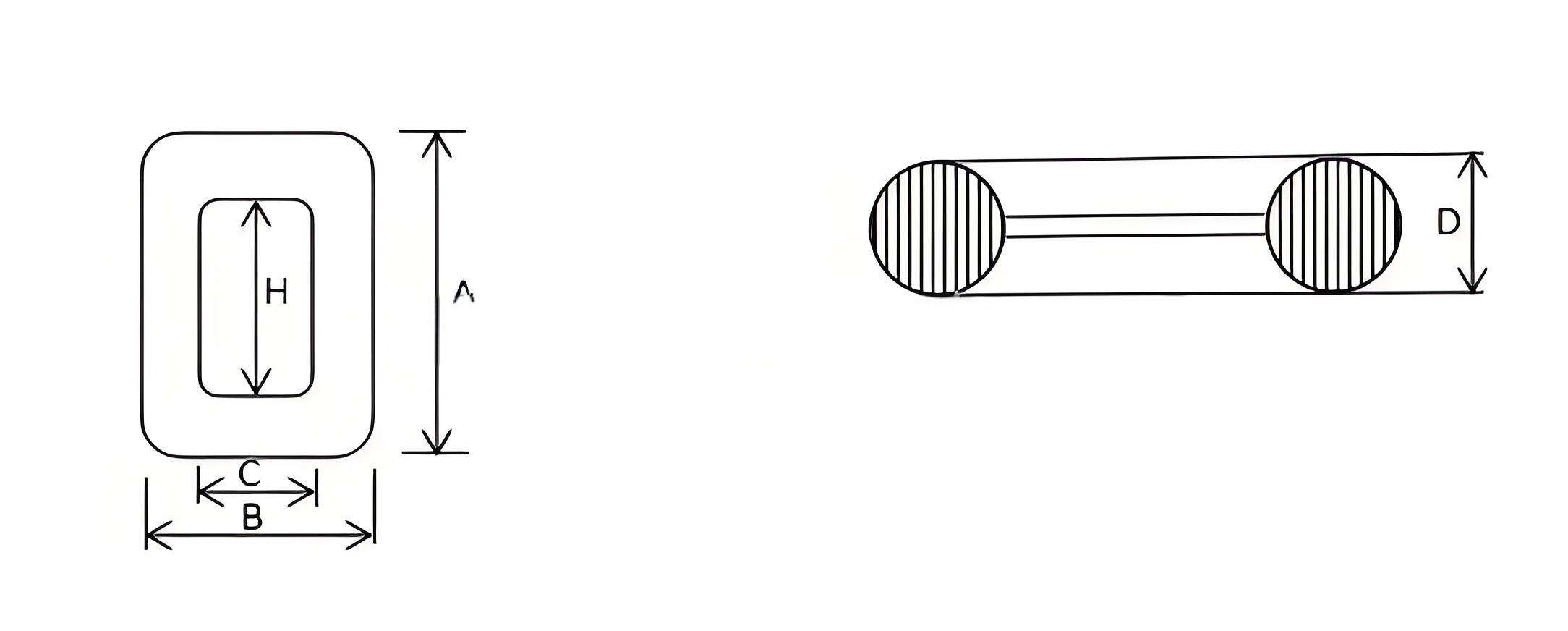

Parameter
型号 |
A/mm |
B/mm |
C/mm |
H/mm |
D/mm |
重量/kg |
容量/VA |
R5 |
59.2 |
36.0 |
11.8 |
35.0 |
13.2 |
0.13 |
4-7 |
R8 |
67.1 |
44.1 |
15.0 |
38.0 |
15.3 |
0.20 |
7-10 |
R10 |
72.8 |
46.8 |
16.0 |
42.0 |
16.2 |
0.25 |
8-15 |
R20 |
77.9 |
52.9 |
18.0 |
43.0 |
18.1 |
0.32 |
20-28 |
R25 |
82.0 |
54.5 |
17.0 |
44.5 |
19.5 |
0.38 |
22-30 |
R30 |
93.6 |
57.6 |
20.0 |
56.0 |
19.5 |
0.44 |
25-40 |
R35 |
95.8 |
60.3 |
21.0 |
56.5 |
20.3 |
0.50 |
30-45 |
R40 |
95.5 |
61.0 |
20.5 |
55.0 |
21.0 |
0.52 |
35-55 |
R45 |
91.8 |
64.3 |
22.5 |
50.0 |
21.5 |
0.54 |
40-60 |
R50 |
98.7 |
66.2 |
22.0 |
54.5 |
22.5 |
0.64 |
45-65 |
R80 |
121.7 |
69.7 |
23.0 |
75.0 |
23.8 |
0.86 |
70-95 |
R100 |
122.2 |
79.2 |
29.0 |
72.0 |
25.5 |
1.04 |
100-130 |
R160 |
135.7 |
84.2 |
31.0 |
82.5 |
27.2 |
1.28 |
150-200 |
R260 |
152.1 |
89.1 |
31.0 |
94.0 |
29.4 |
1.68 |
200-300 |
R320 |
158.7 |
98.2 |
37.0 |
97.5 |
31.0 |
1.99 |
280-380 |
R600 |
179.4 |
112.4 |
38.0 |
105.0 |
37.7 |
3.21 |
380-620 |
R800 |
191.5 |
124.5 |
38.0 |
105.0 |
44.0 |
4.57 |
500-950 |
R1000 |
213.5 |
130.5 |
44.0 |
127.0 |
44.2 |
5.16 |
650-1200 |
R1500 |
228.0 |
147.0 |
44.0 |
125.0 |
52.0 |
7.63 |
1200-1800 |
R2000 |
236.9 |
157.9 |
45.0 |
127.0 |
58.0 |
9.68 |
1600-2300 |
R2500 |
246.2 |
166.2 |
48.0 |
128.0 |
59.5 |
10.79 |
2200-2800 |
R3000 |
260.7 |
178.7 |
52.0 |
138.0 |
64.0 |
13.10 |
2700-3300 |
R3600 |
264.7 |
182.7 |
56.0 |
138.0 |
64.0 |
13.42 |
3300-4000 |
R5000 |
315.2 |
199.1 |
58.0 |
174.0 |
71.0 |
19.53 |
4500-5300 |
R6300 |
337.1 |
212.1 |
63.0 |
188.0 |
75.0 |
23.76 |
6000-6500 |
R7500 |
337.1 |
219.1 |
70.0 |
188.0 |
75.0 |
24.22 |
7000-8000 |
R10000 |
369.4 |
235.4 |
76.0 |
210.0 |
80.0 |
30.22 |
9500-10500 |

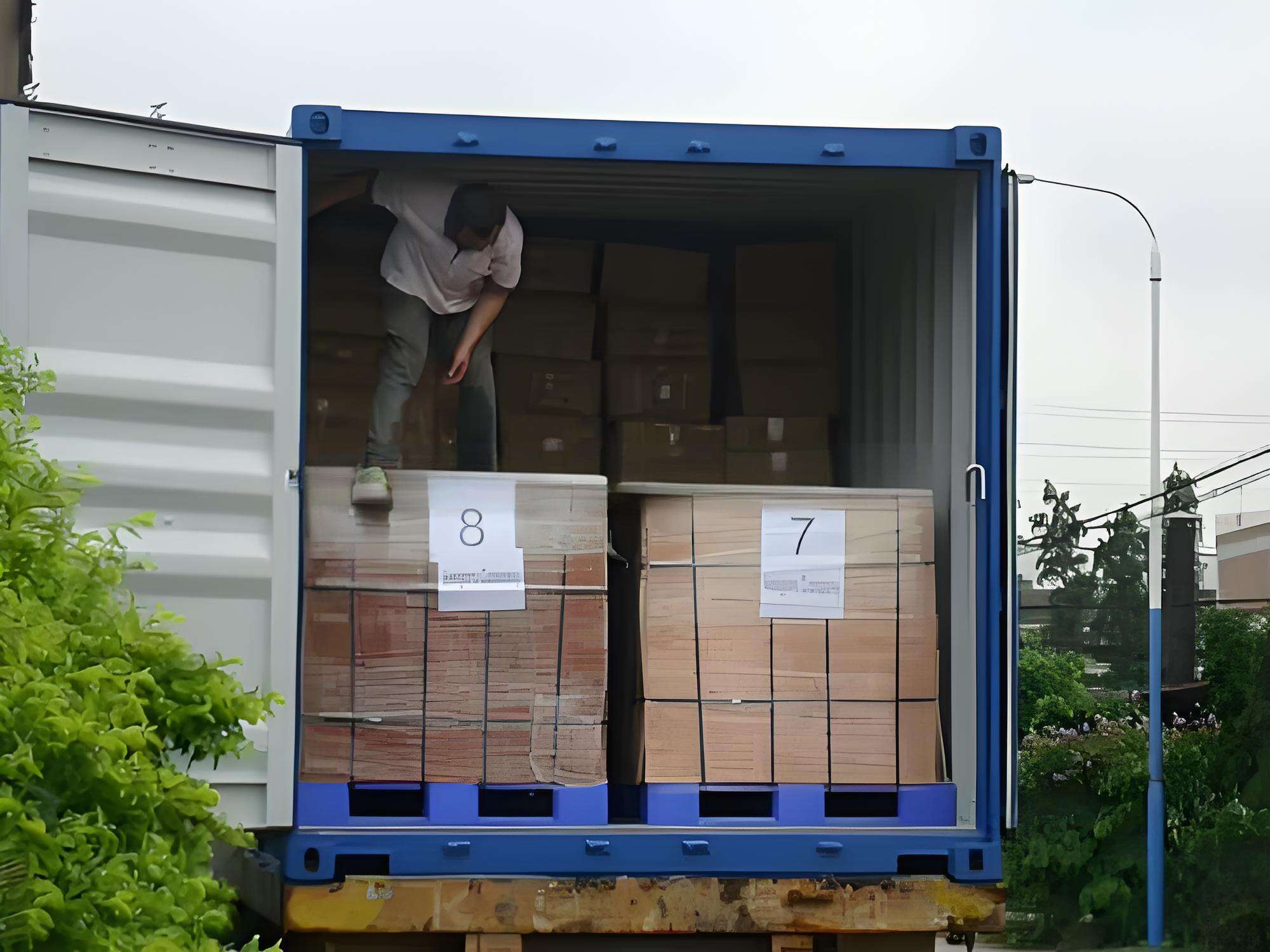

Packing&Shipping
