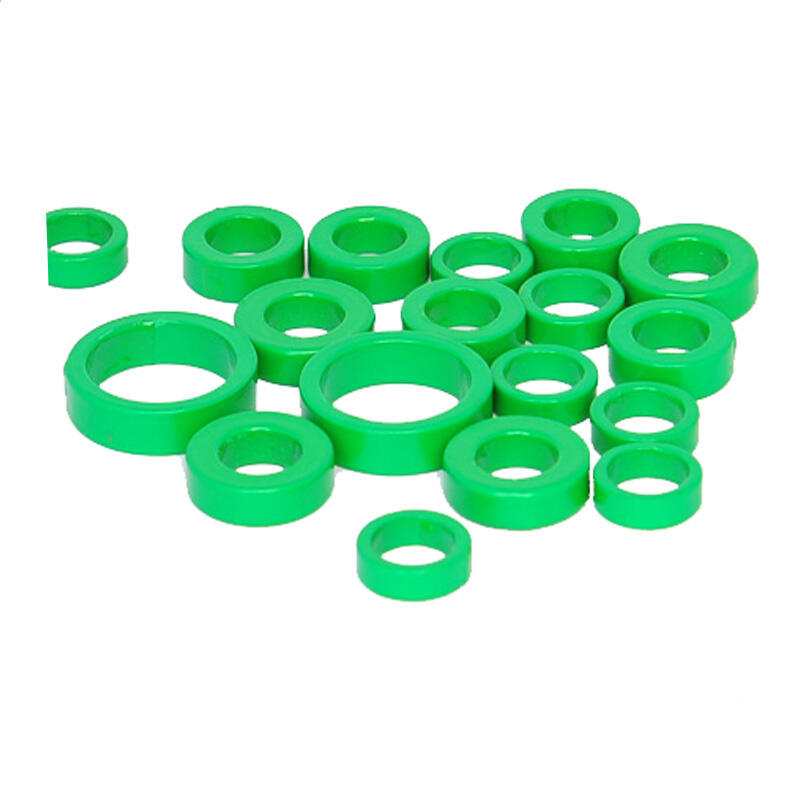

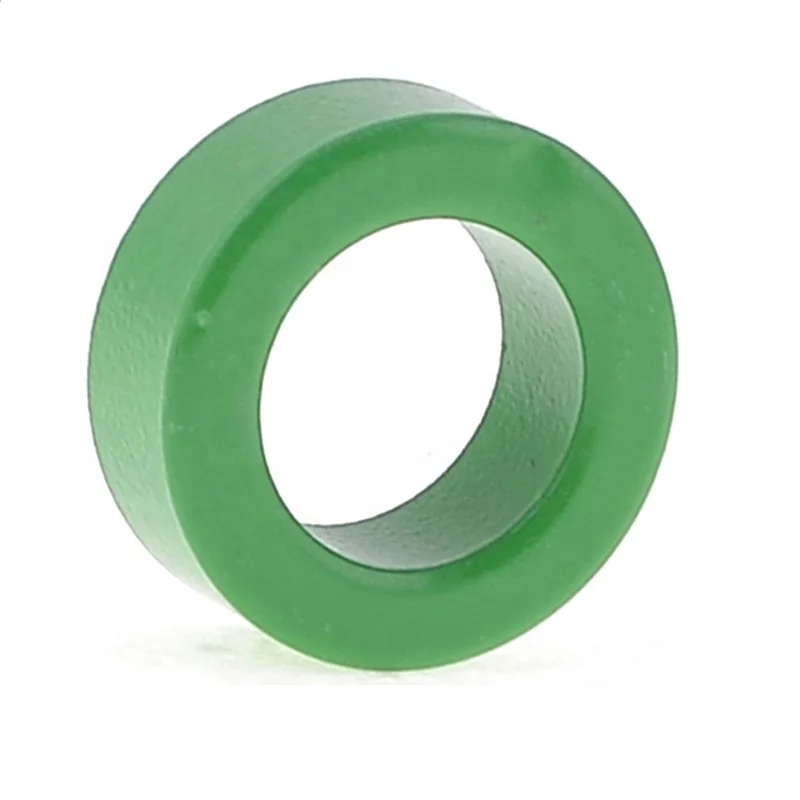

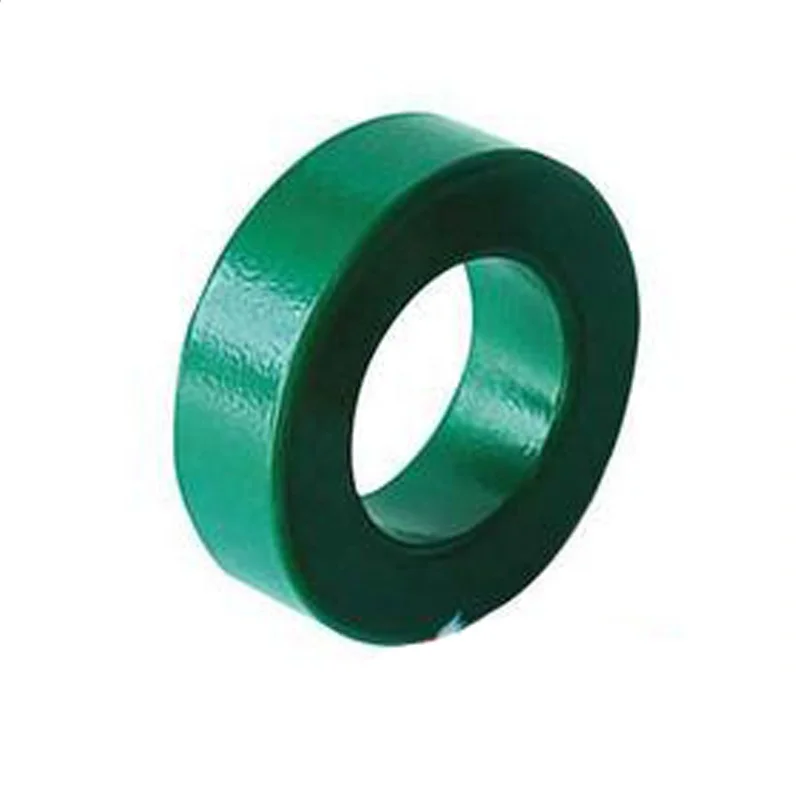

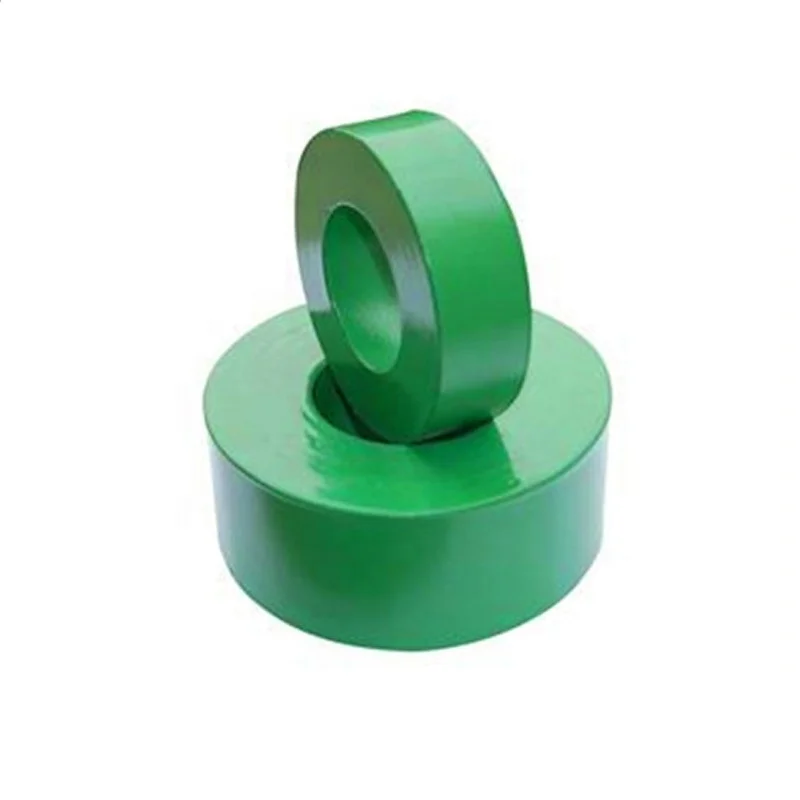

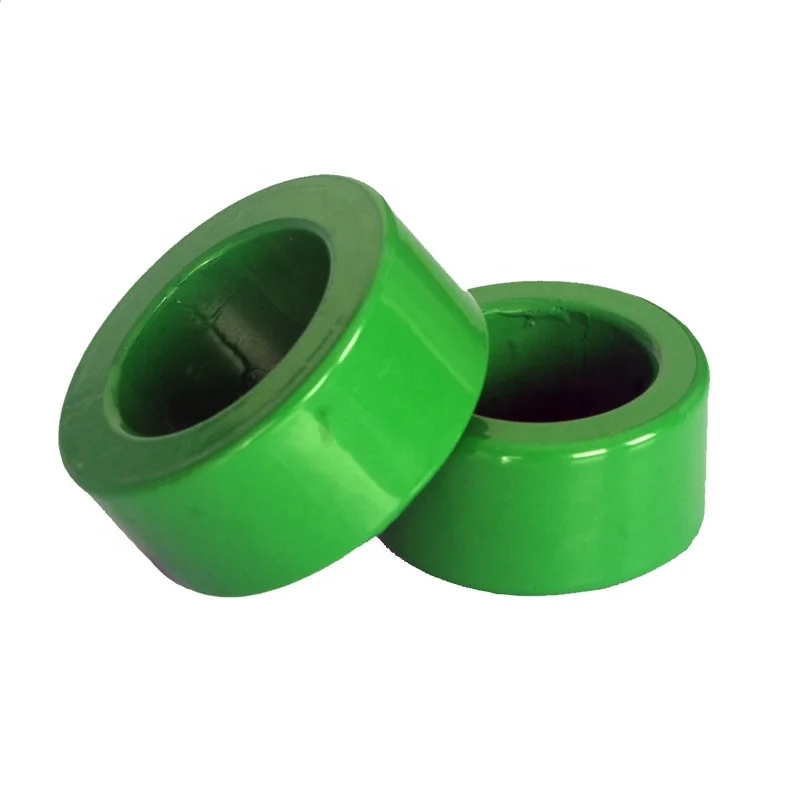

CRGO Silicon Steel Core for Toroidal Transformer
- Premium CRGO Material: Superior grain-oriented electrical steel for exceptional magnetic properties
- High Energy Efficiency: Minimal core losses & low hysteresis loss, ideal for efficient power transformation
- Optimized Toroidal Shape: Uniform magnetic flux distribution + reduced electromagnetic interference
- Stable & Reliable Performance: Precision-rolled structure ensures consistent electrical properties lifelong
- Customizable Dimensions: Multiple size options to fit specific toroidal transformer design needs
- Overview
- Recommended Products
Our premium Cold Rolled Grain Oriented (CRGO) Silicon Steel Core is specifically engineered for high-performance toroidal transformers. Made from superior grain-oriented electrical steel, these cores deliver exceptional magnetic properties and minimal core losses, making them ideal for efficient power transformation applications. The unique toroidal shape ensures uniform magnetic flux distribution and reduced electromagnetic interference. With excellent permeability and low hysteresis loss, these cores are perfect for various power supply units, audio equipment, and industrial control systems. The precision-rolled structure guarantees consistent electrical properties and reliable performance throughout the core's service life. Available in multiple dimensions to suit your specific transformer design requirements, our CRGO cores combine durability with outstanding magnetic characteristics for optimal transformer efficiency.
Certifications
Products Description
Material |
High quality CRGO steel with low iron-loss and high permeability |
Features |
Lower core loss, no
leakage magnetic flux,
excellent DC bias
characteristics, high
magnetic permeability
range from 250 to 1200.
|
Applications |
50Hz and 400Hz transformers.current transformers.chokes and other magnetic
components of
electronic equipments.
|
Manufacturing Process
Smashing → Laser-welding → Slitting →Winding →Chamfering→ Annealing → Varnish → Testing → Packing
Product Paramenters
Model |
Core Size (MM) |
Finished Size (MM) |
Cross Area (cm2) |
Average Path Length(CM) |
One-turn Loop Independence AL(μH) 1Khz,0.25V |
||||||||
OD |
ID |
H |
OD |
ID |
H |
Ae |
Lm |
AL(min) |
|||||
EK0603 |
6.0 |
3.0 |
3.2 |
6.5 |
2.5 |
3.8 |
0.037 |
1.41 |
13.0 |
||||
EK0903 |
9.0 |
5.0 |
3.2 |
9.5 |
4.5 |
3.8 |
0.050 |
2.20 |
11.5 |
||||
EK1003 |
10.0 |
7.0 |
3.2 |
10.5 |
6.5 |
3.8 |
0.037 |
2.67 |
7.0 |
||||
EK1210 |
12.0 |
8.7 |
10.0 |
12.6 |
8.1 |
10.6 |
0.129 |
3.25 |
20.0 |
||||
EK1405 |
14.0 |
9.0 |
4.5 |
14.5 |
8.5 |
5.1 |
0.088 |
3.61 |
12.0 |
||||
EK2108 |
21.3 |
13.5 |
8.0 |
22.1 |
12.8 |
9.0 |
0.243 |
5.46 |
22.0 |
||||
EK4304 |
43.0 |
35.0 |
4.0 |
43.6 |
34.4 |
4.6 |
0.125 |
12.25 |
5.0 |
||||
Two series of toroidal core
A series
B series core commonly used as a replacement of EI and other toroidal transformers with lower magnetic loss requirement.
Material thickness: 0.30mm, 0.27mm, 0.23mm
A round core wound by automatic machines with one continuous tape of CRGO silicon steel and annealed in a tunnel furnace under the protection of inert gases.
Material thickness: 0.30mm, 0.27mm, 0.23mm, 0.10mm, 0.08mm and 0.05mm.
B series
B series core commonly used as a replacement of EI and other toroidal transformers with lower magnetic loss requirement.
Material thickness: 0.30mm, 0.27mm, 0.23mm
Material
M3-0.23mm
|
||
Please let us know the below information
Toroidal Core Custom Form |
||
OD(MM) |
||
ID(MM) |
||
H(MM) |
||
Specified Material |
||
Performance Requirement |
||
Other requirement |
||
