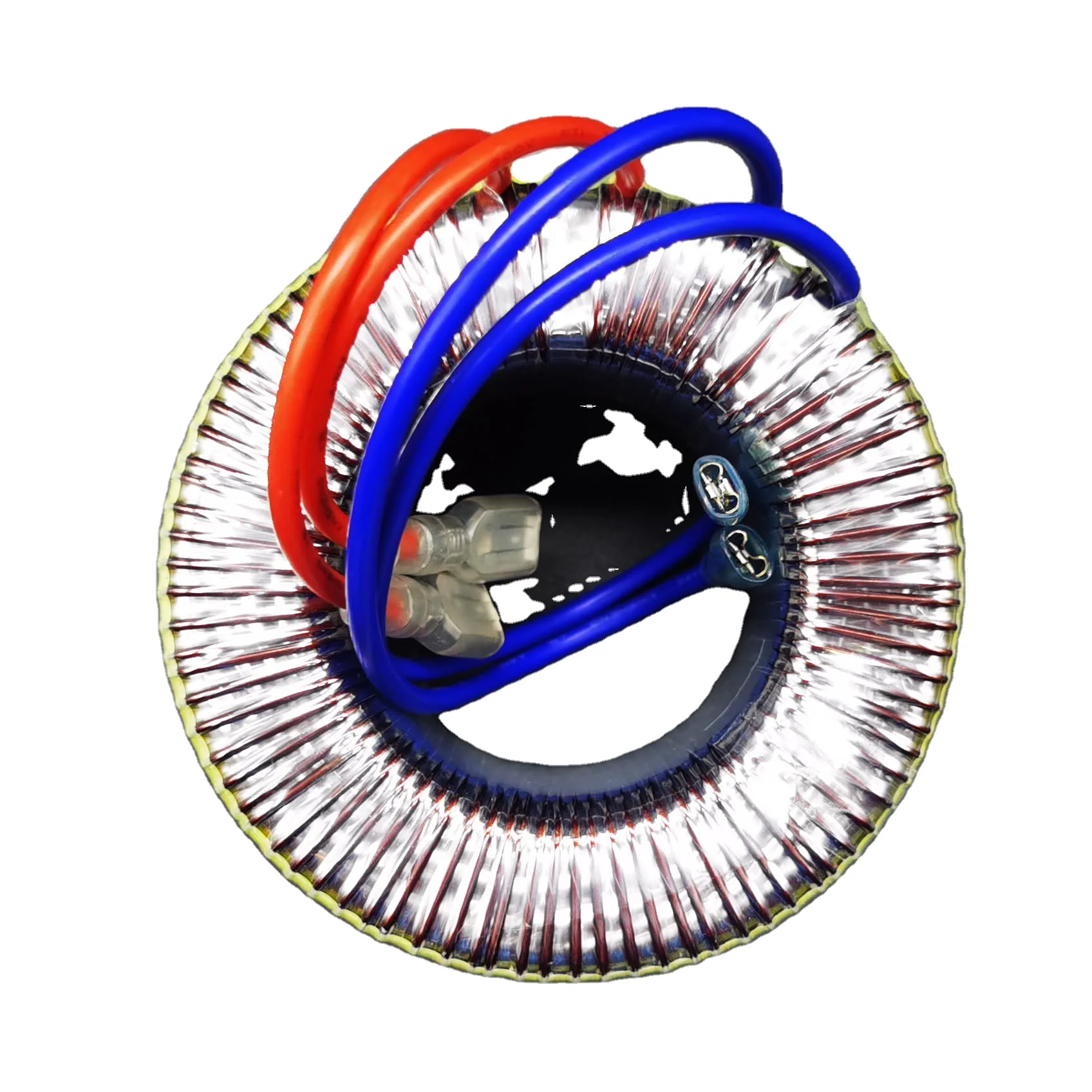

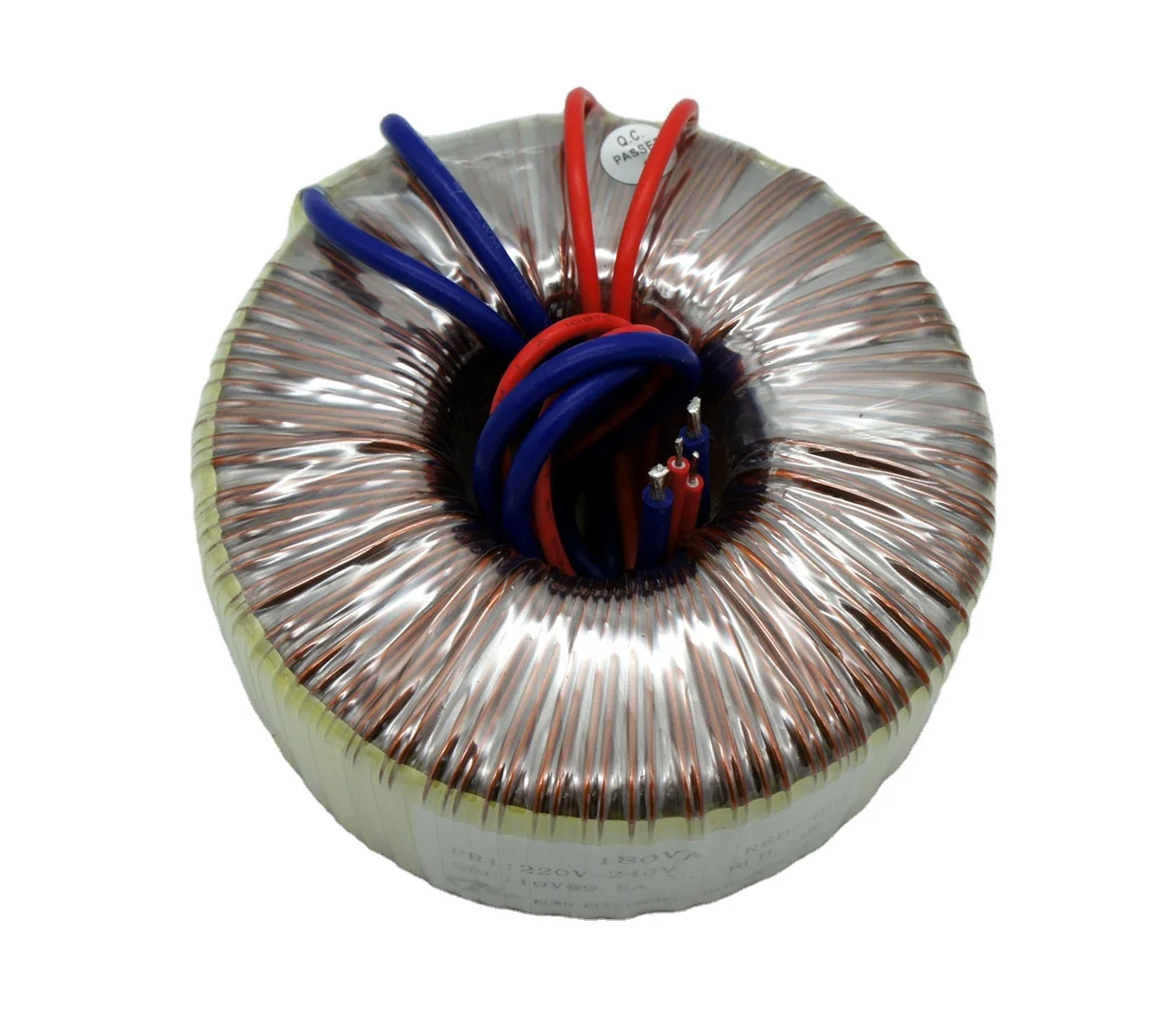

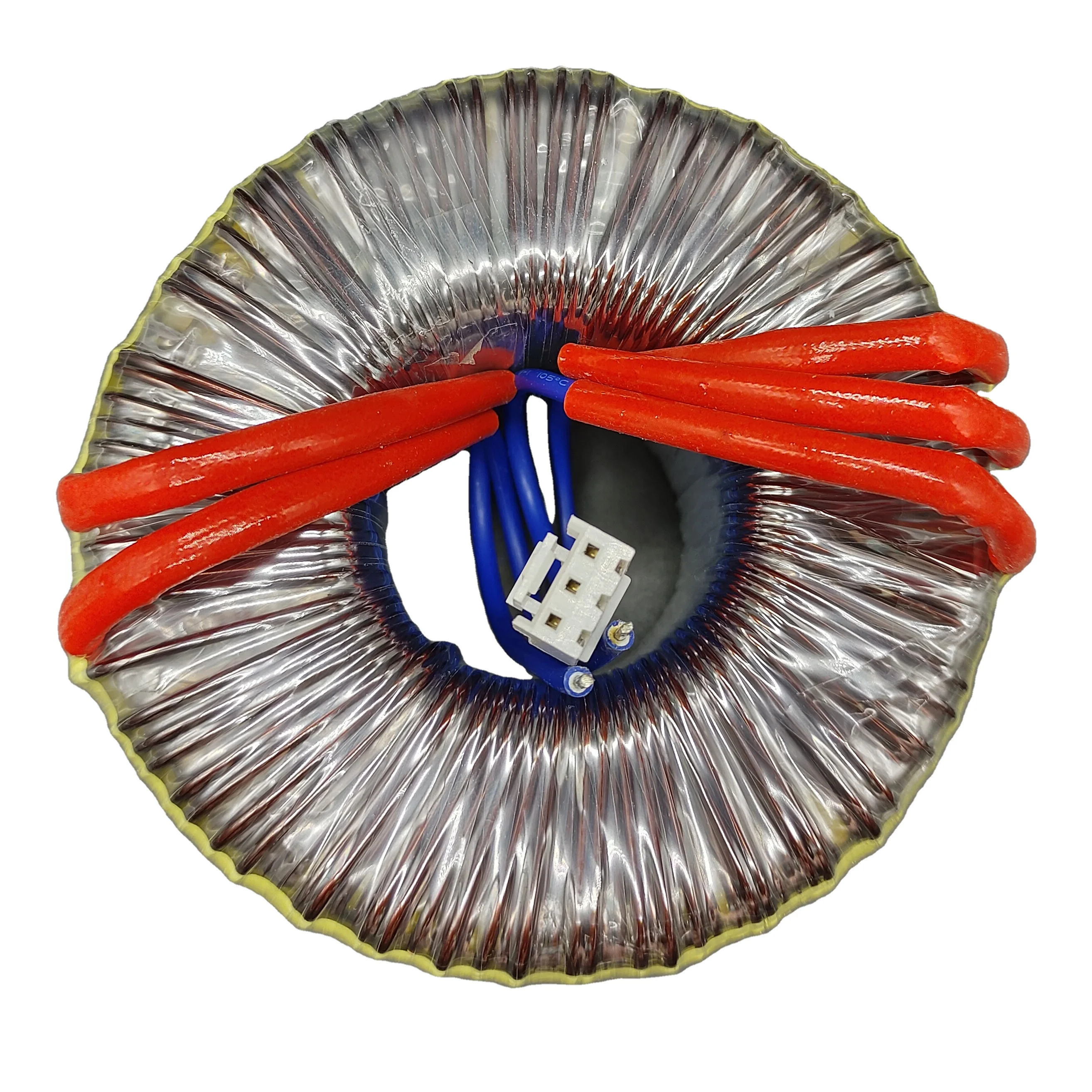

Customised 1500VA 58V 58V Toroidal Power Transformer Circuit Board Transformer Audio Output Toroidal Transformer

Customised 1500VA 58V 58V Toroidal Power Transformer Circuit Board Transformer Audio Output Toroidal Transformer

This premium 1500VA toroidal power transformer delivers stable 58V dual output, making it ideal for high-end audio applications and circuit board integration. Featuring superior copper windings and a high-grade silicon steel core, it offers excellent voltage regulation and minimal electromagnetic interference. The toroidal design ensures ultra-low noise, reduced heat generation, and compact installation compared to traditional transformers. Perfect for audio amplifiers, professional sound equipment, and precision electronics where clean power is essential. The transformer boasts 99% efficiency, silent operation, and robust magnetic shielding. Each unit undergoes strict quality testing to guarantee reliable performance and safety. Custom specifications are available to meet your specific requirements, backed by our professional engineering support.

Overview
Recommended Products

Customised 1500VA 58V 58V Toroidal Power Transformer Circuit Board Transformer Audio Output Toroidal Transformer manufacture

Product Introduction

Customised 1500VA 58V 58V Toroidal Power Transformer Circuit Board Transformer Audio Output Toroidal Transformer supplier

Frequency	50HZ/60HZ
Rated Power	20-25000VA
Wire	Copper
Process	Coil Winding
Insulation Class	Class B,Class F,Class E
Certification	CE,RoHs,ISO
Temperature rise	≤65°C
Core material	CRGO silicon steel core
Customized made	Yes

Application:
Medical equipment, Automatic control equipment, home appliances, audio amplifier, CCTV security, broadcasting system，solar power, wind power, telecommunications,etc

Product Features:
Long life
Energy conserving
High Efficiency
Low Temperature Operation
No Radiation, no noise
High standard, high quality

Customised 1500VA 58V 58V Toroidal Power Transformer Circuit Board Transformer Audio Output Toroidal Transformer details

Single-phase toroidal transformers, power range from 20VA to 5000VA. Designed and tested according to EN61558. Suitable forinstallation in electronically equipment.

Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.
Short circuit and overload protected with thermal fuse(or thermal switch) on primary side. Up to 50% less weight than a similar conventional transformer.

Lower magnetisation currents and no-load losses.

High-end silicon steel core

Core insulation

Copper wire winding

Customised 1500VA 58V 58V Toroidal Power Transformer Circuit Board Transformer Audio Output Toroidal Transformer factory

Lead wire fitting

Finished product

Testing

Model	Power (VA)	Dimension(MM)			Weight(KG)
Model	Power (VA)			OD	Weight(KG)	Height
EKT020	20	63	28	0.3
EKT050	50	72	40	0.6
EKT080	80	78	47	0.9
EKT100	100	92	48	1.1
EKT120	120	89	52	1.4
EKT160	200	99	52	1.8
EKT200	200	108	52	2.1
EKT250	250	110	66	2.3
EKT300	300	112	66	2.7
EKT400	400	130	70	3.8
EKT500	500	140	75	4.7
EKT600	600	145	78	5.5
EKT800	800	160	80	7.2
EKT1000	1000	170	90	9
EKT2000	2000	205	95	13.5
EKT3000	3000	220	120	18.5
EKT4000	4000	260	125	24
EKT4500	4500	285	130	25.5
EKT5000	5000	295	138	28.5
EKT6000	6000	300	145	34
