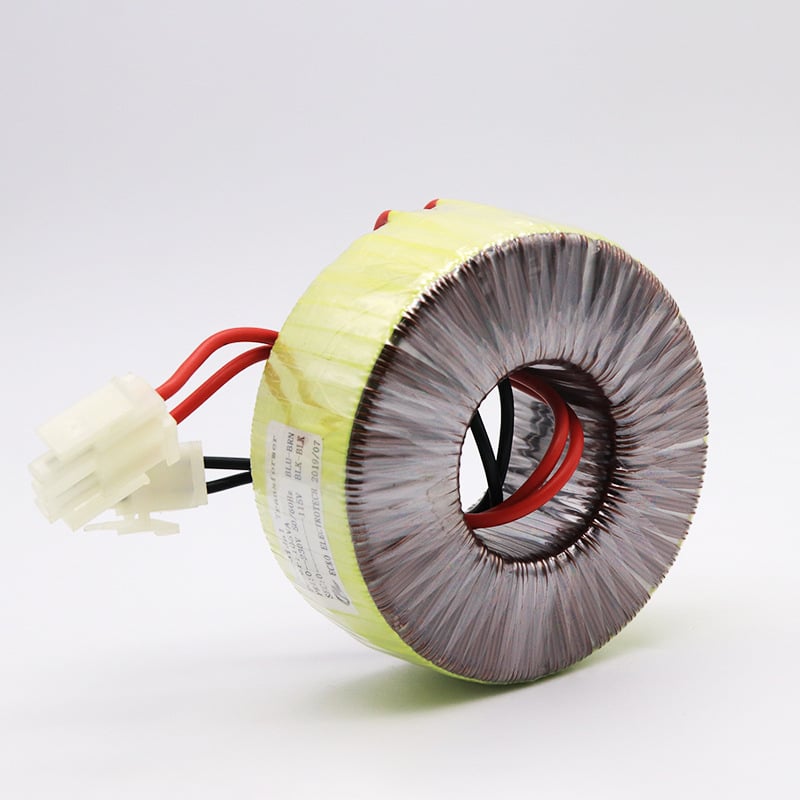

Custom Toroidal Transformer Manufacturer for Low-Noise Power Applications

Custom Toroidal Transformer Manufacturer for Low-Noise Power Applications

High-efficiency 50/60Hz toroidal transformers with customized input/output voltage, power rating, dimensions and mounting options for audio, industrial control and OEM power supply applications.

Overview
Recommended Products

This reliable step-up transformer efficiently converts 12V DC power to 240V AC output, making it an ideal solution for a wide range of applications. Perfect for powering household appliances, electronics, and tools when only a 12V DC power source is available, such as in vehicles, boats, or remote locations. The transformer features robust construction with built-in protection against overload, short circuit, and overheating to ensure safe operation. Its compact design and easy installation make it a practical choice for both permanent and portable power needs. Whether you're camping, working on the road, or need emergency backup power, this transformer delivers stable 240V AC power you can rely on. Compatible with most 240V devices within its rated capacity, it's an essential power conversion solution for mobile and off-grid applications.

Step up Transformer 12v Dc to 240v Ac details

Product Introduction

Frequency	50HZ/60HZ
Rated Power	20-25000VA
Wire	Copper
Process	Coil Winding
Insulation Class	Class B,Class F,Class E
Certification	CE,RoHs,ISO
Temperature rise	≤65°C
Core material	CRGO silicon steel core
Customized made	Yes

Application:
Medical equipment, Automatic control equipment, home appliances, audio amplifier, CCTV security, broadcasting system，solar power, wind power, telecommunications,etc

Product Features:
Long life
Energy conserving
High Efficiency
Low Temperature Operation
No Radiation, no noise
High standard, high quality

Step up Transformer 12v Dc to 240v Ac supplier

Step up Transformer 12v Dc to 240v Ac manufacture

Single-phase toroidal transformers, power range from 20VA to 5000VA. Designed and tested according to EN61558. Suitable forinstallation in electronically equipment.

Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.
Short circuit and overload protected with thermal fuse(or thermal switch) on primary side. Up to 50% less weight than a similar conventional transformer.

Lower magnetisation currents and no-load losses.

Step up Transformer 12v Dc to 240v Ac factory

High-end silicon steel core

Core insulation

Copper wire winding

Lead wire fitting

Finished product

Testing

Model	Power (VA)	Dimension(MM)			Weight(KG)
Model	Power (VA)			OD	Weight(KG)	Height
EKT020	20	63	28	0.3
EKT050	50	72	40	0.6
EKT080	80	78	47	0.9
EKT100	100	92	48	1.1
EKT120	120	89	52	1.4
EKT160	200	99	52	1.8
EKT200	200	108	52	2.1
EKT250	250	110	66	2.3
EKT300	300	112	66	2.7
EKT400	400	130	70	3.8
EKT500	500	140	75	4.7
EKT600	600	145	78	5.5
EKT800	800	160	80	7.2
EKT1000	1000	170	90	9
EKT2000	2000	205	95	13.5
EKT3000	3000	220	120	18.5
EKT4000	4000	260	125	24
EKT4500	4500	285	130	25.5
EKT5000	5000	295	138	28.5
EKT6000	6000	300	145	34
