Single-Phase Toroidal Power Transformer for Audio Amplifiers 12v 18v 480v Output 110v 220v 240v Input 50hz 60hz Frequency

Single-Phase Toroidal Power Transformer for Audio Amplifiers 12v 18v 480v Output 110v 220v 240v Input 50hz 60hz Frequency

Audio-Focused Low-Noise Performance: Toroidal design minimizes EMI and acoustic noise, delivers clean stable power for high-fidelity audio amplifiers.
Global Voltage & Frequency Compatibility: 110V/220V/240V input, 12V/18V/480V output options, supports 50Hz/60Hz for worldwide use.
Premium Amorphous Core Efficiency: Superior magnetic properties and ultra-low core losses, outperforming traditional silicon steel cores.
Compact High-Efficiency Build: Smaller size and lighter weight than standard transformers, with enhanced heat dissipation and voltage regulation.
Versatile Audio Applications: Perfect for DIY audio projects, professional amplifier builds, and audio equipment repair and upgrades.

Overview
Recommended Products

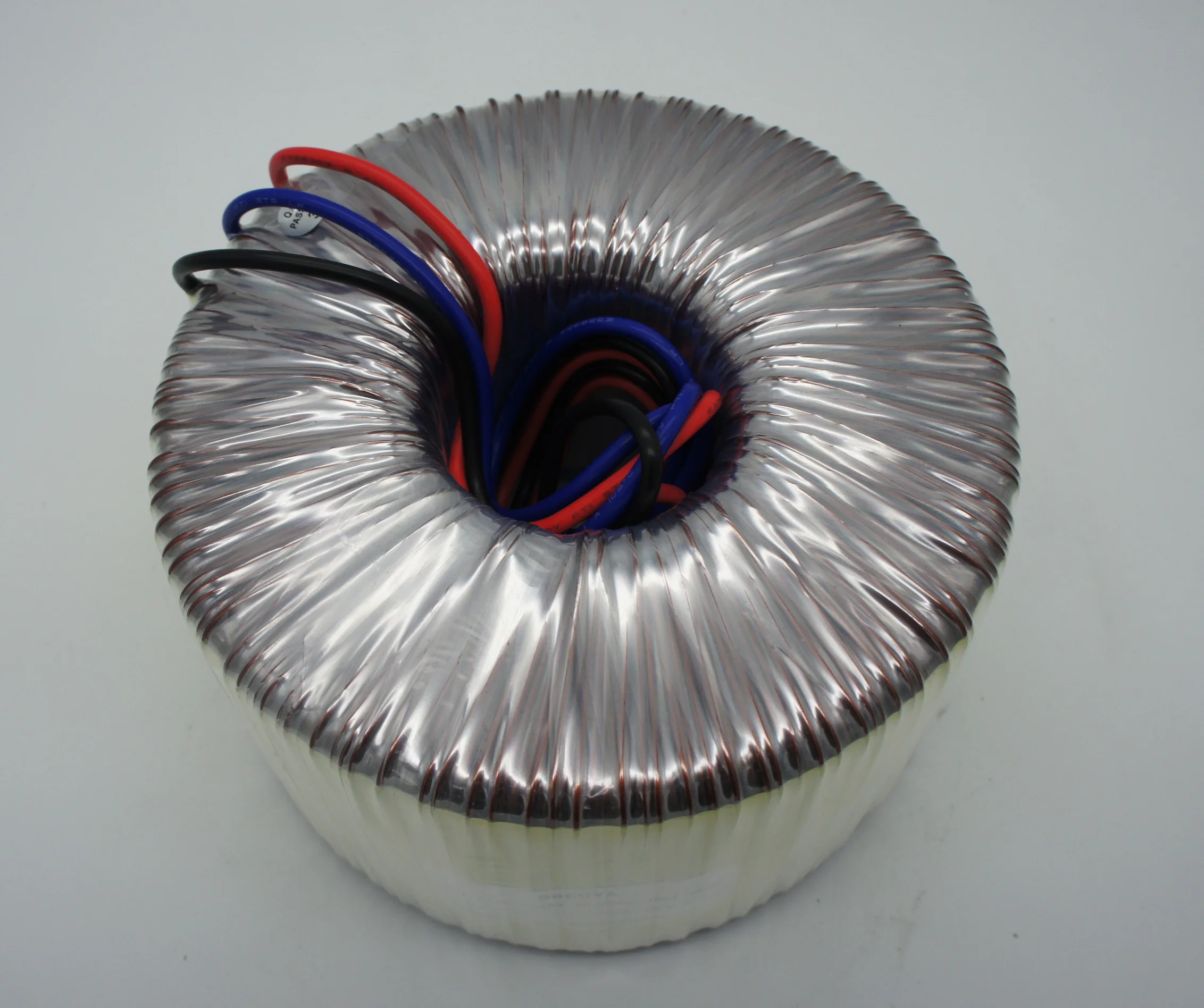

This high-quality toroidal power transformer is specifically designed for audio amplifier applications, delivering exceptional performance with minimal noise and electromagnetic interference. Available with multiple output voltage options including 12V, 18V, and 480V, it accommodates various audio system requirements. The transformer supports worldwide input voltages of 110V, 220V, and 240V, making it suitable for international use. Operating at both 50Hz and 60Hz frequencies, it ensures compatibility across different power grids. The toroidal design offers significant advantages over traditional transformers, including lower weight, reduced size, higher efficiency, and improved heat dissipation. With excellent voltage regulation and low stray magnetic fields, this transformer provides the clean, stable power supply essential for high-fidelity audio applications. Perfect for DIY audio projects, professional amplifier builds, and audio equipment repairs.

Single-Phase Toroidal Power Transformer for Audio Amplifiers 12v 18v 480v Output 110v 220v 240v Input 50hz 60hz Frequency details

Single-Phase Toroidal Power Transformer for Audio Amplifiers 12v 18v 480v Output 110v 220v 240v Input 50hz 60hz Frequency manufacture

Workshop/Production Line

Single-Phase Toroidal Power Transformer for Audio Amplifiers 12v 18v 480v Output 110v 220v 240v Input 50hz 60hz Frequency factory

Products Description

Frequency	50HZ/60HZ
Rated Power	3000VA
Wire	Copper
Process	Coil Winding
Insulation Class	Class B,Class F,Class E
Certification	CE,RoHs,ISO
Temperature rise	≤65°C
Core material	CRGO silicon steel core
Customized made	Yes

Single-Phase Toroidal Power Transformer for Audio Amplifiers 12v 18v 480v Output 110v 220v 240v Input 50hz 60hz Frequency supplier

Product Paramenters

Model	Power (VA)	Dimension(MM)			Weight(KG)
Model	Power (VA)			OD	Weight(KG)	Height
EKT020	20	63	28	0.3
EKT050	50	72	40	0.6
EKT080	80	78	47	0.9
EKT100	100	92	48	1.1
EKT120	120	89	52	1.4
EKT160	200	99	52	1.8
EKT200	200	108	52	2.1
EKT250	250	110	66	2.3
EKT300	300	112	66	2.7
EKT400	400	130	70	3.8
EKT500	500	140	75	4.7
EKT600	600	145	78	5.5
EKT800	800	160	80	7.2
EKT1000	1000	170	90	9
EKT2000	2000	205	95	13.5
EKT3000	3000	220	120	18.5
EKT4000	4000	260	125	24
EKT4500	4500	285	130	25.5
EKT5000	5000	295	138	28.5
EKT6000	6000	300	145	34
