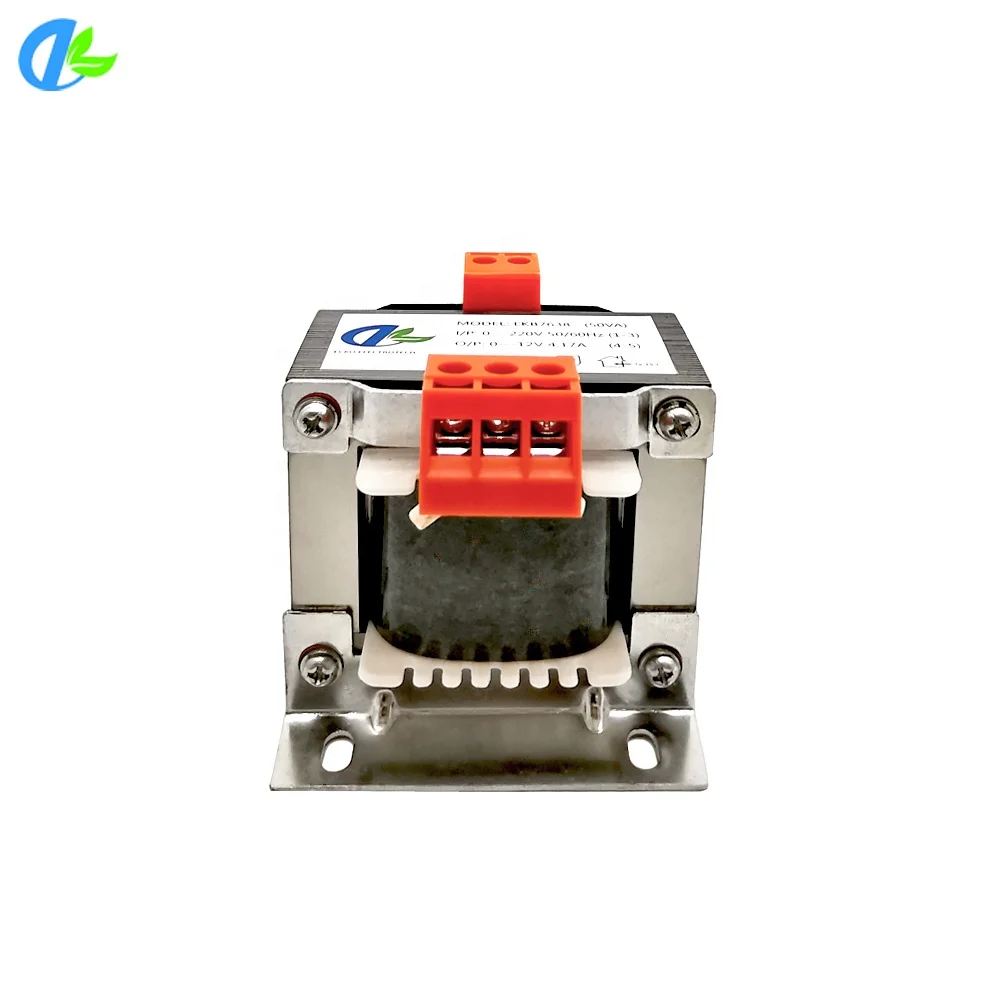

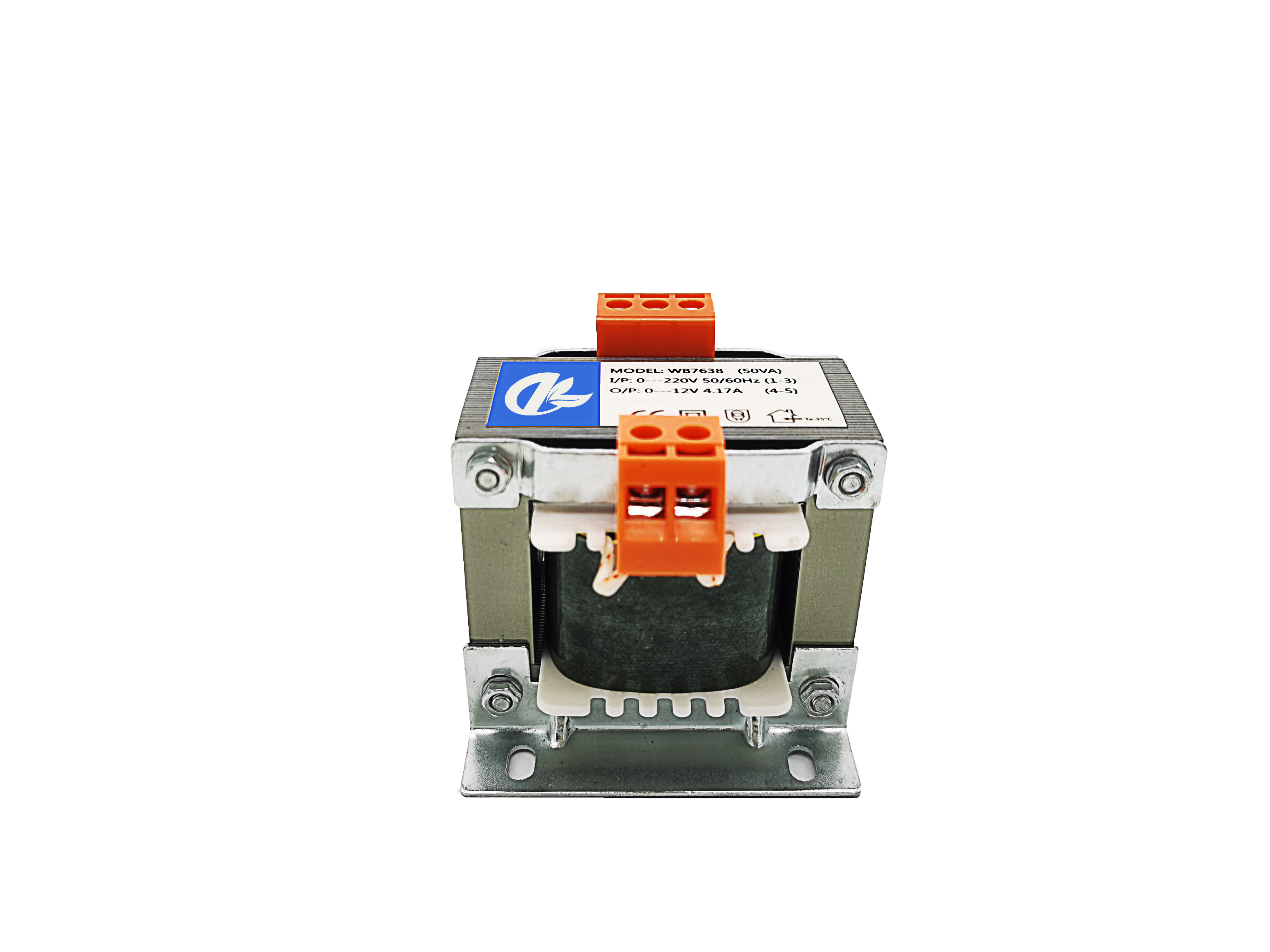

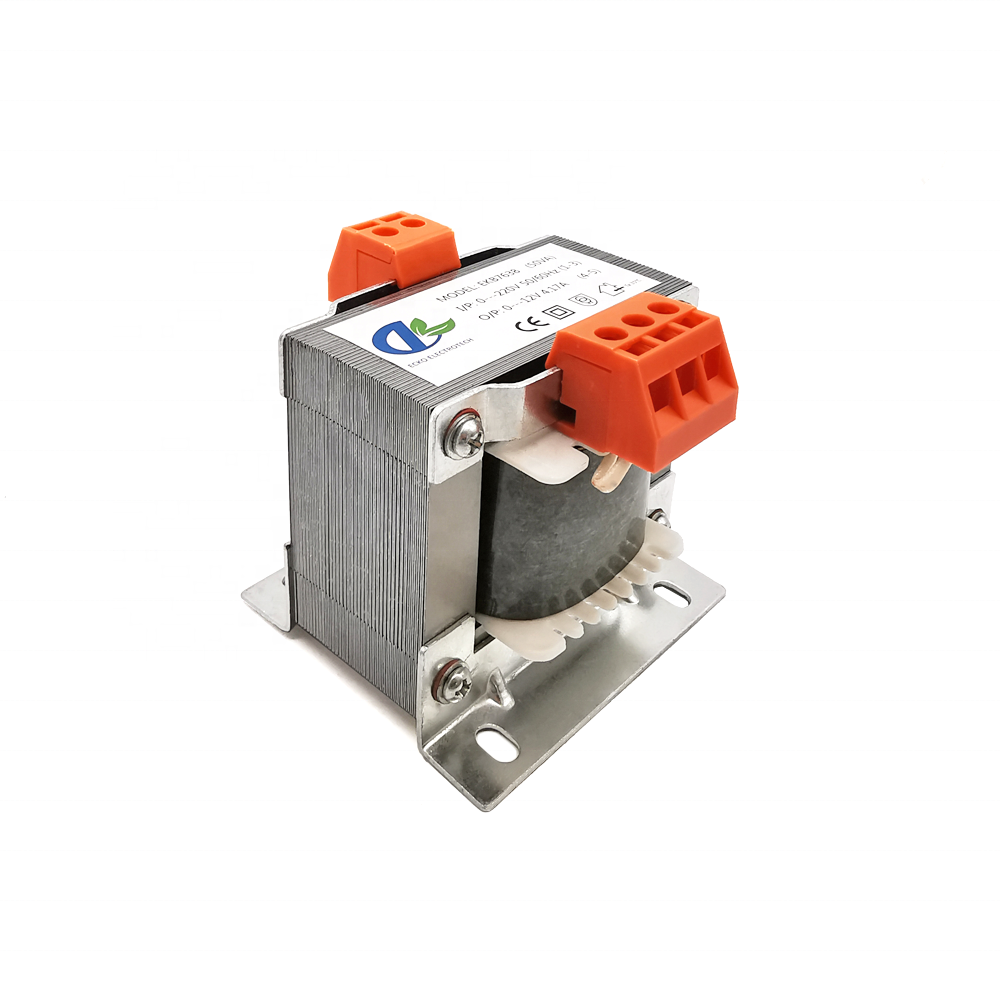

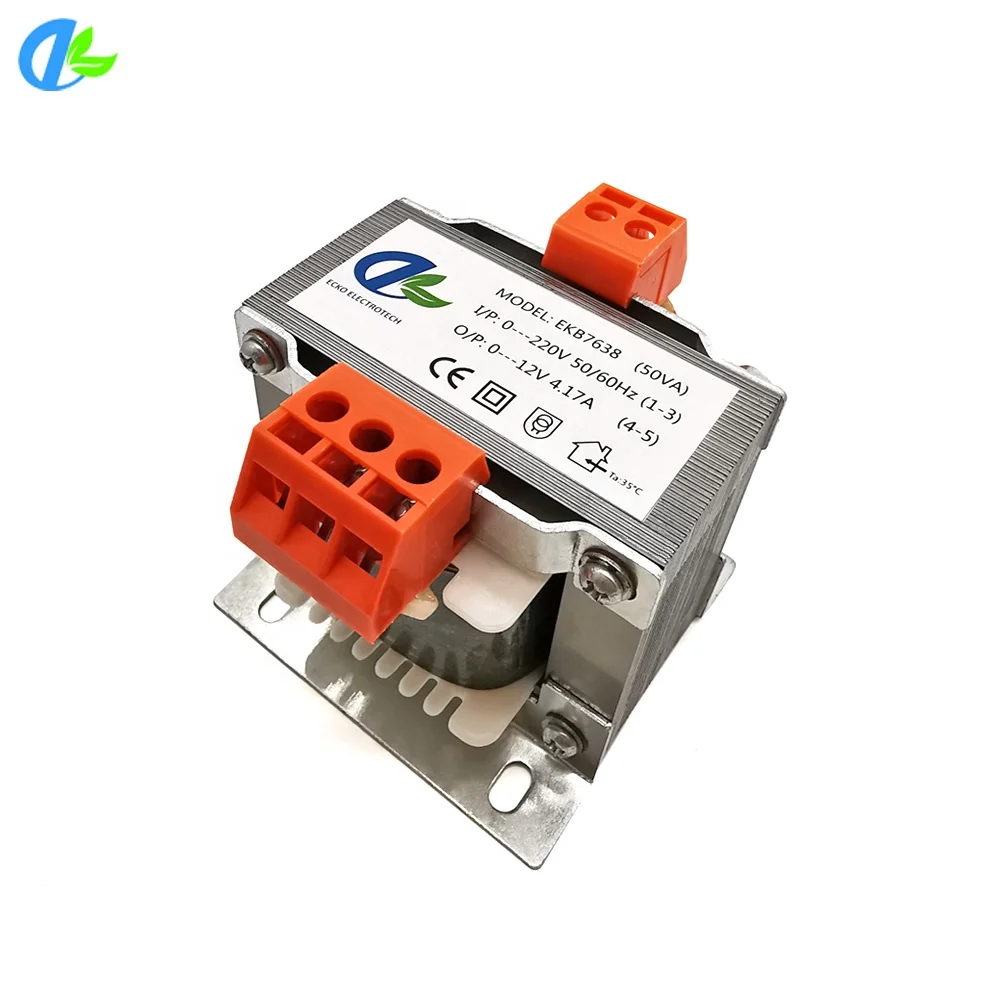

220V EI Control Transformer Cost-Effective Power Transformer for Equipment Control Circuit 50Hz Safe 24V OEM Customizable
This reliable EI control transformer offers the perfect solution for equipment control circuits, delivering stable power conversion from 220V to 24V at 50Hz frequency. Engineered with safety in mind, it features high-quality silicon steel sheets and copper windings that ensure excellent electromagnetic performance and minimal power loss. The transformer's robust construction provides protection against short circuits and overheating, making it ideal for industrial automation, machine tools, and control panels. With its cost-effective design and compliance with international safety standards, this transformer delivers consistent, reliable performance while maintaining budget efficiency. We offer OEM customization to meet your specific voltage, power, and size requirements. The compact form factor and easy installation make it a practical choice for various industrial applications where stable low-voltage power supply is essential.
- Overview
- Recommended Products
Ecko's control transformers range from 25VA through 5000VA in any class voltage combination designed and manufactured in
accordance with EN61558.
All designs are 50/60 Hz rated and are available in a 105⁰C, 130⁰C, 150⁰C or 180⁰C temperature class.
accordance with EN61558.
All designs are 50/60 Hz rated and are available in a 105⁰C, 130⁰C, 150⁰C or 180⁰C temperature class.
Product Name |
Single Phase EI Control BK Transformer |
Model No. |
EKB9645 |
Rated Input Voltage |
0-220V-380V (custom available) |
Rated Output Voltage |
0-12V 0-24V (custom available) |
Frequency |
50/60Hz |
Rated Power |
150VA (custom available) |
Dimension |
L105XW87XH108 MM |
Weight |
3.5 kgs |
Insulation Class |
Class B/Class F/Class E |
Ambient temperature |
Ta=25°C |
HI-POT test |
4000VAC |
Degree of protection |
IP00 |
Certificate |
CE-ROHS, CE-ISO,CE-LVD |
Standard |
EN61558, EN61000,IEC52321 |
Custom Made |
Yes |
Application |
Long-term continuous operation at nominal capacity, are widely used in machine tools and machinery in general electrical power source as a control, local lighting and power indication. |

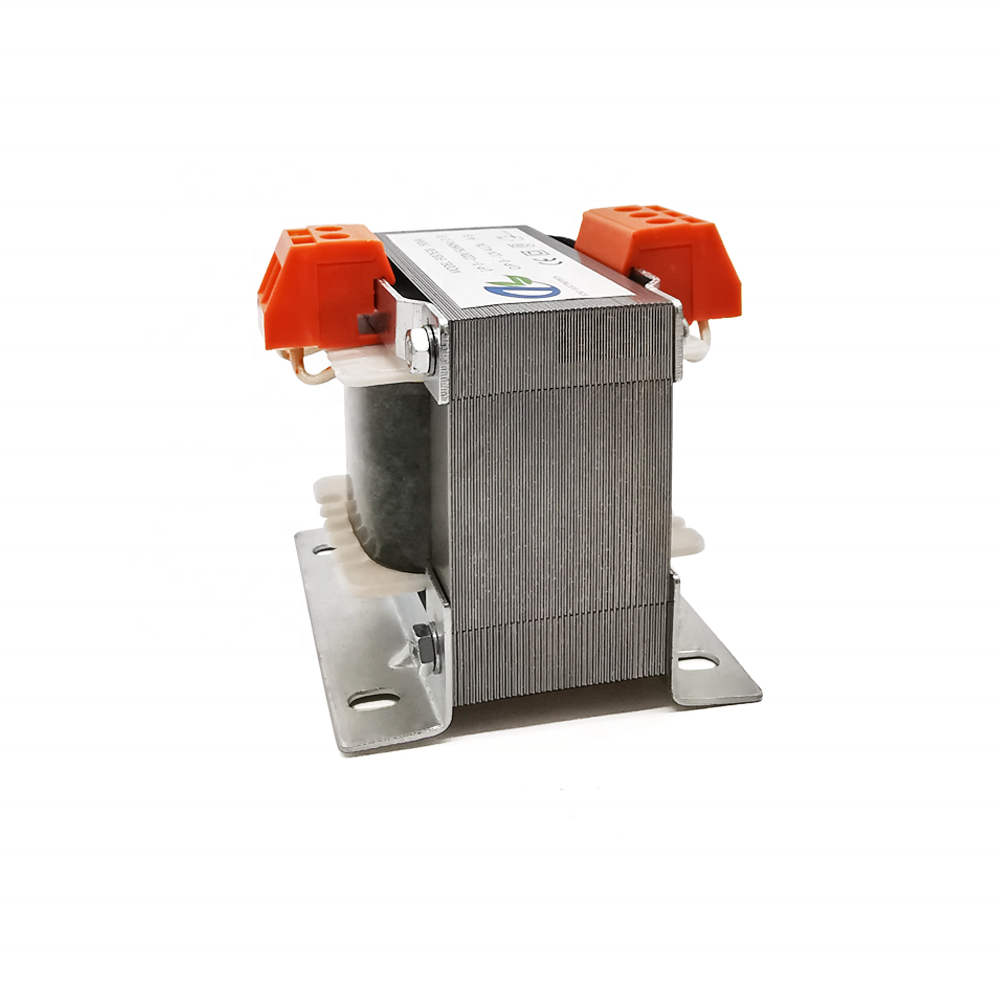

Grain Oriented Electrical EI Silicon Steel Lamination Sheet
Constructed with high quality silicon steel laminations that provide optimum performance and reliability. High saturation magnetic flux density, high efficiency, small excitation power, low loss, good temperature stability.
Flame retardant Nylon Coil Bobbin
Enameled Copper Wire Winding
Solid Rolled Steel Mounting Brackets
Brackets vary in size to conform to the size of the transformer core.
Made of heavy steel and welded or bolted to the core,providing superior strength in a compact design.
