Nanocrystalline Iron Core - High Magnetic Permeability Low Loss Inductor Magnetic Core - Anti-interference Custom Size

Nanocrystalline Iron Core - High Magnetic Permeability Low Loss Inductor Magnetic Core - Anti-interference Custom Size

Advanced Nanocrystalline Tech: Cutting-edge material with ultra-fine structure for high-frequency inductor excellence
Superior Magnetic Performance: High permeability + ultra-low core losses, ideal for power conversion & EMI suppression
Strong Anti-Interference: Effectively shields electromagnetic noise in demanding electronic environments
Customizable & Stable: Tailorable dimensions; optimal flux density & temperature stability across wide frequencies
High Efficiency & Reliable: High saturation flux density + low coercivity, minimal heat generation

Overview
Recommended Products

Engineered with cutting-edge nanocrystalline technology, this premium magnetic core delivers exceptional performance for high-frequency inductor applications. The ultra-fine crystalline structure enables superior magnetic permeability while maintaining remarkably low core losses, making it ideal for power conversion and EMI suppression. With excellent anti-interference properties, this core effectively shields against electromagnetic noise in demanding electronic environments. Available in customizable dimensions to meet your specific design requirements, it provides optimal magnetic flux density and temperature stability across a wide frequency range. Perfect for use in switch-mode power supplies, filters, transformers, and other high-efficiency electronic components where size, performance, and reliability are crucial. The combination of high saturation flux density and low coercivity ensures maximum energy efficiency and minimal heat generation during operation.

Product Introduction

NANO CRYSTALLINE & AMORPHOUS CORE

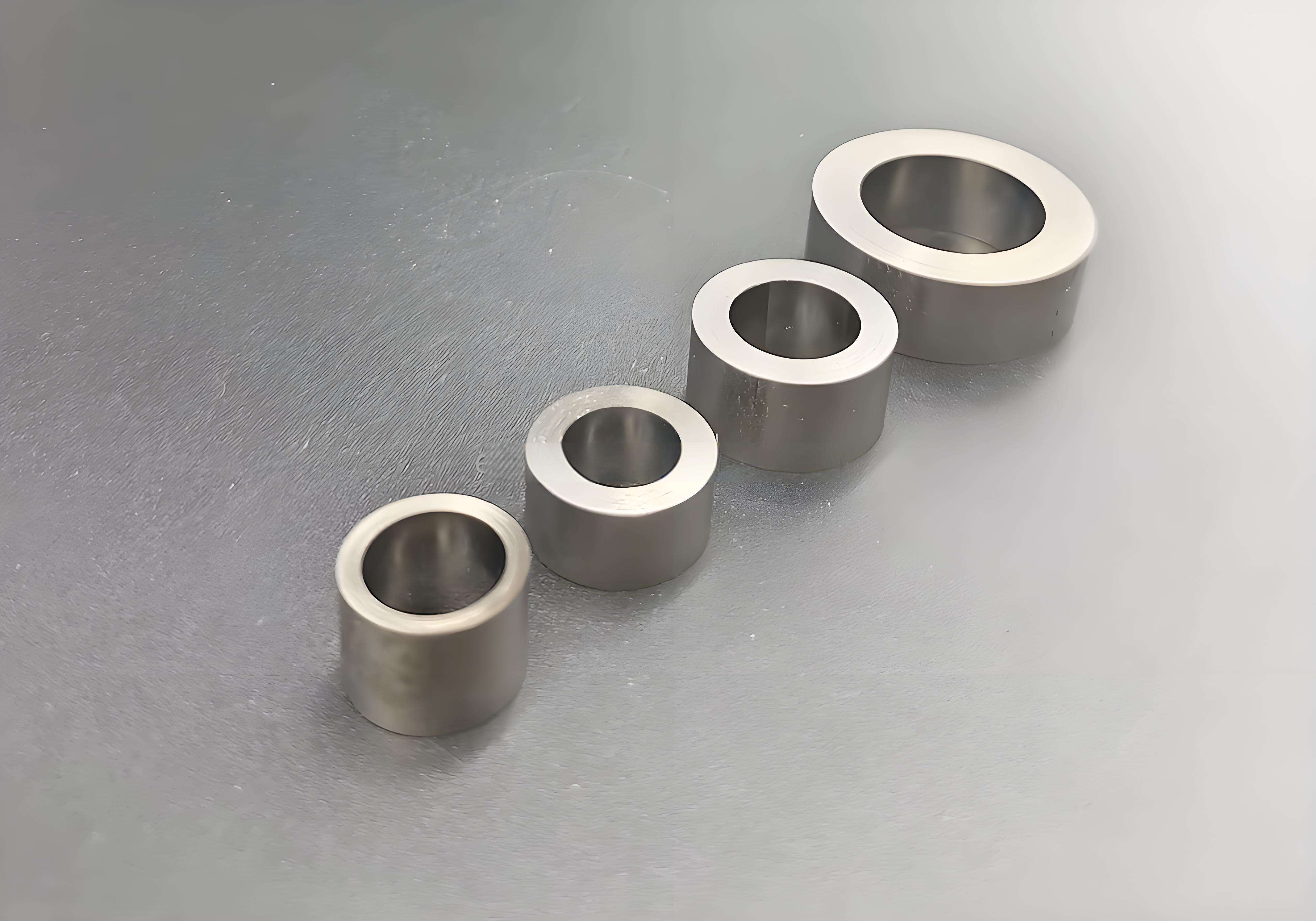

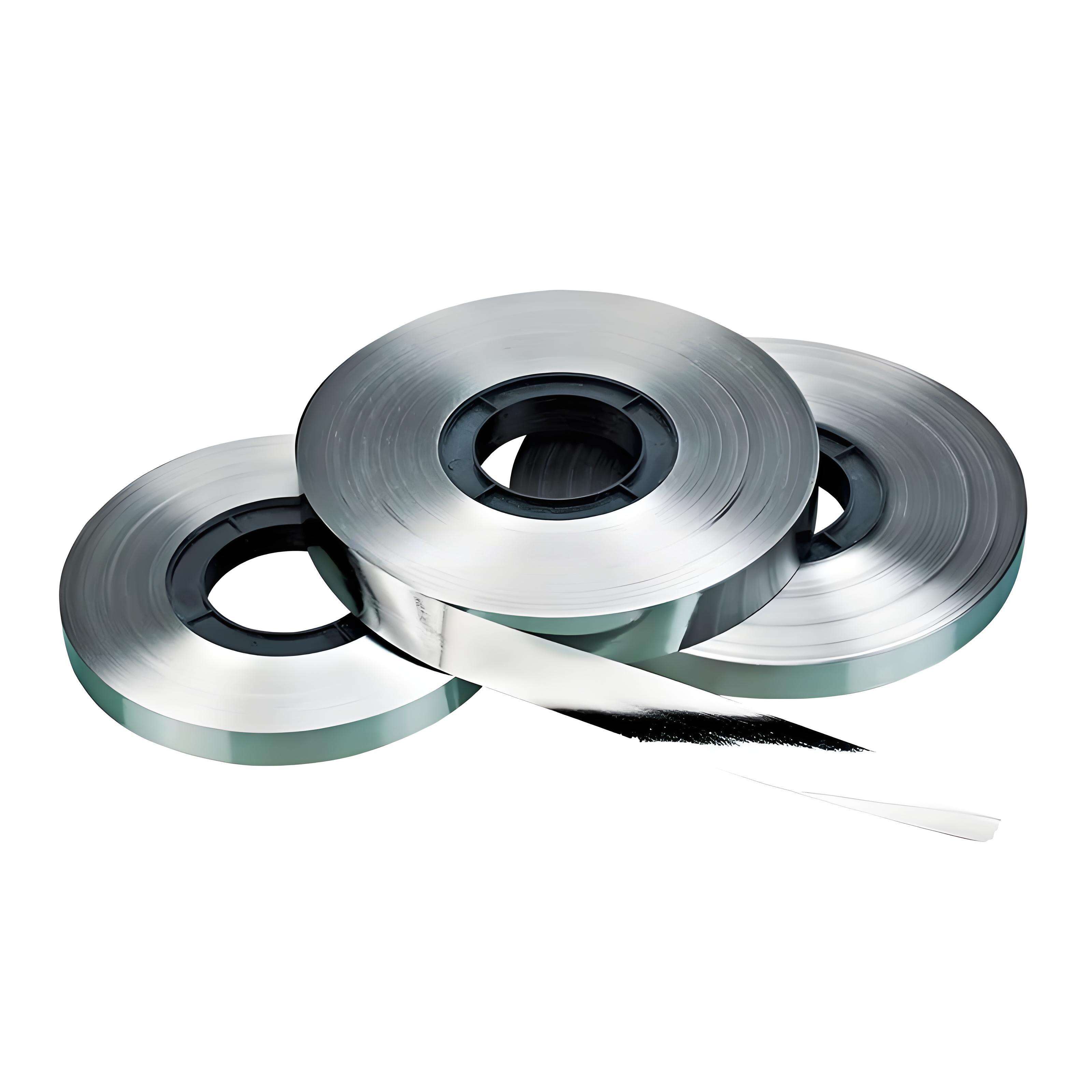

Ecko makes cores of various sizes in nano crystalline and amorphous material with ribbon thickness 18-35 microns. The cores can be wound into cores of various shapes and sizes, such as toroidal, rectangular, oval,C-shape or E-shape,etc.Then the cores are heat treated in controlled atmosphere in our high tech furnace to achieve optimum material performance. Finally cores are plastic encapsulated or epoxy coated as per the customer requirement and tested 100% for quality performance on core sorting machines and dispatched.

Nanocrystalline toroidal cores can be supplied with a bespoke cover or can be coated with epoxy resin, able to protect the product during handling.

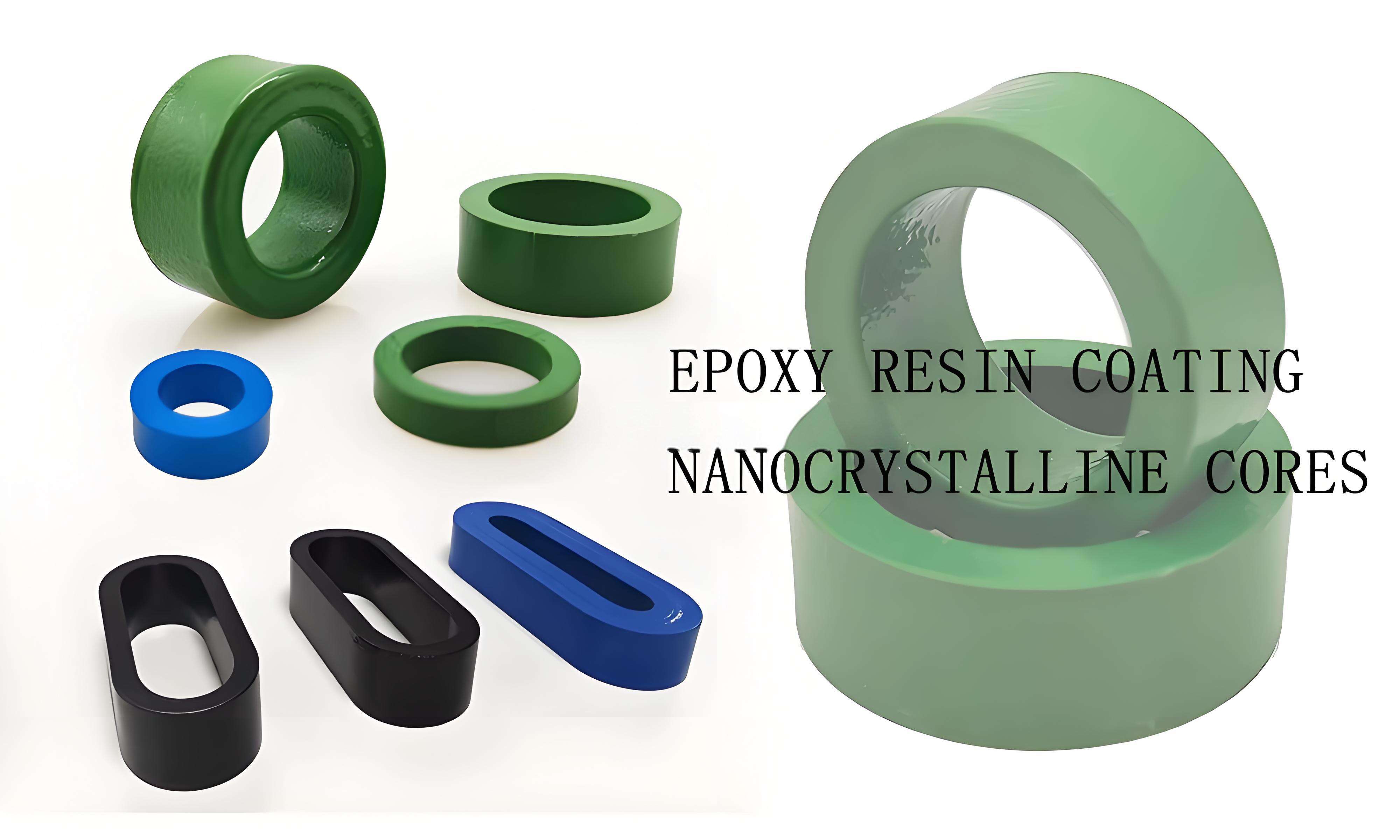

Epoxy coated nanocrystalline core features small size compared with plastic case.The epoxy resin coating makes the cores compact and gives them the mechanical resistance required when they are being transported,insulated and coiled with copper wire, making it possible to use them even without covers or stiff boxes and must therefore not be regarded as an insulating process.It is suitable for continuous operational temperatures of up to 120 °C.

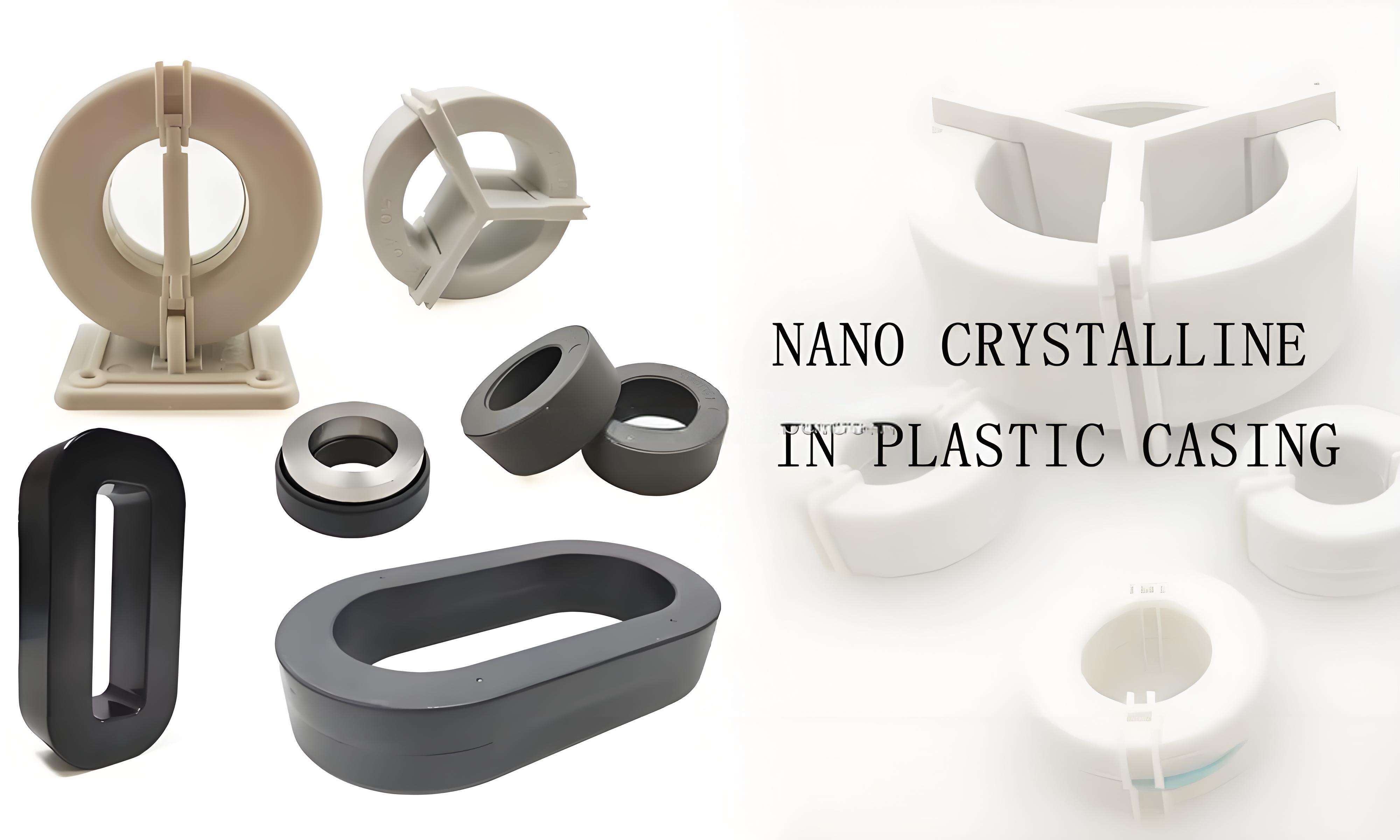

The plastic cases are suitable for direct winding and offer good mechanical protection of the nanocrystalline core material. This enables the best magnetic properties and highest permeability levels to be maintained. Additional winding protection is optional for heavy wire windings, where there may be a danger of core damage for operating temperatures up to 130 °C.

We have regular models in fire retardant pastic material, such as PBT , PP, PET PA66.

Our engineer will choose the suitable casing according to the size and application.

Features

High magnetic induction
High saturation Induction
Low loss, Reduces temperature rise
Excellent temperature stabilityfrom -55℃ to 155℃
Flexibility
High harmonic wave tolerances

Application

* SMPS and UPS
* Inverters
* EMC filters
* Frequency converters
* AC and DC transformers
* Inductors
* Common mode and differential mode chokes
* Magnetic amplifiers
