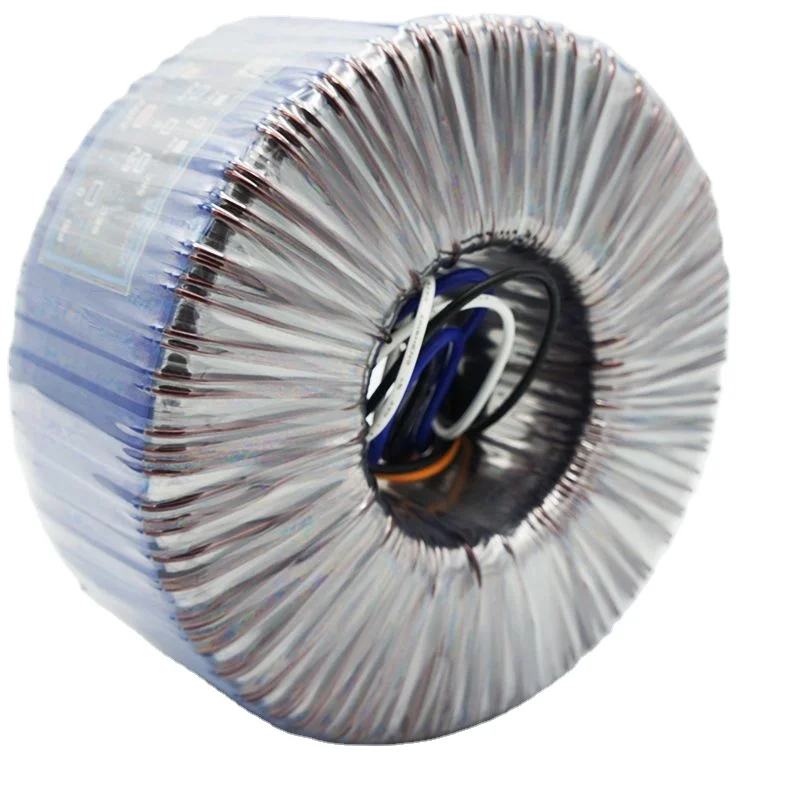

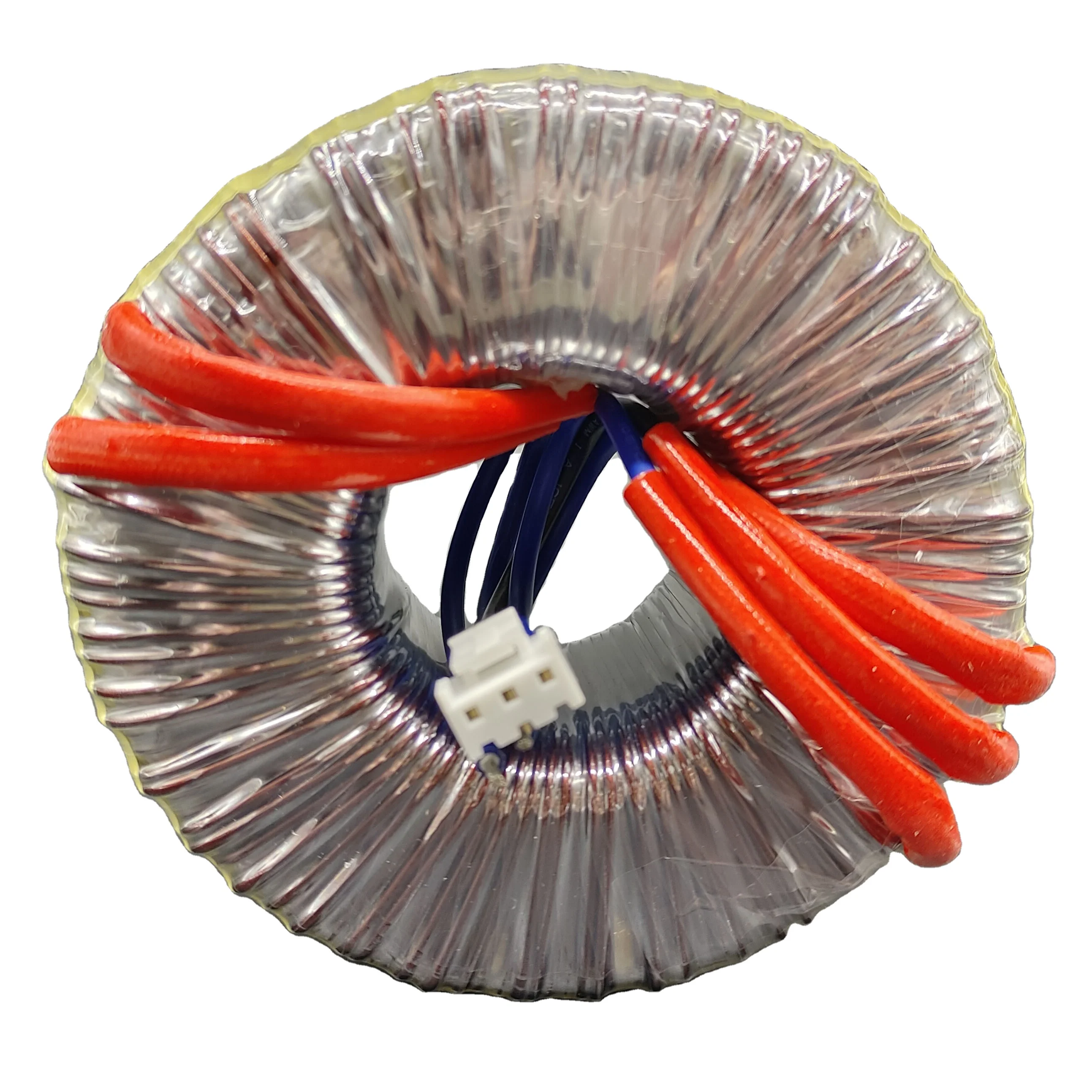

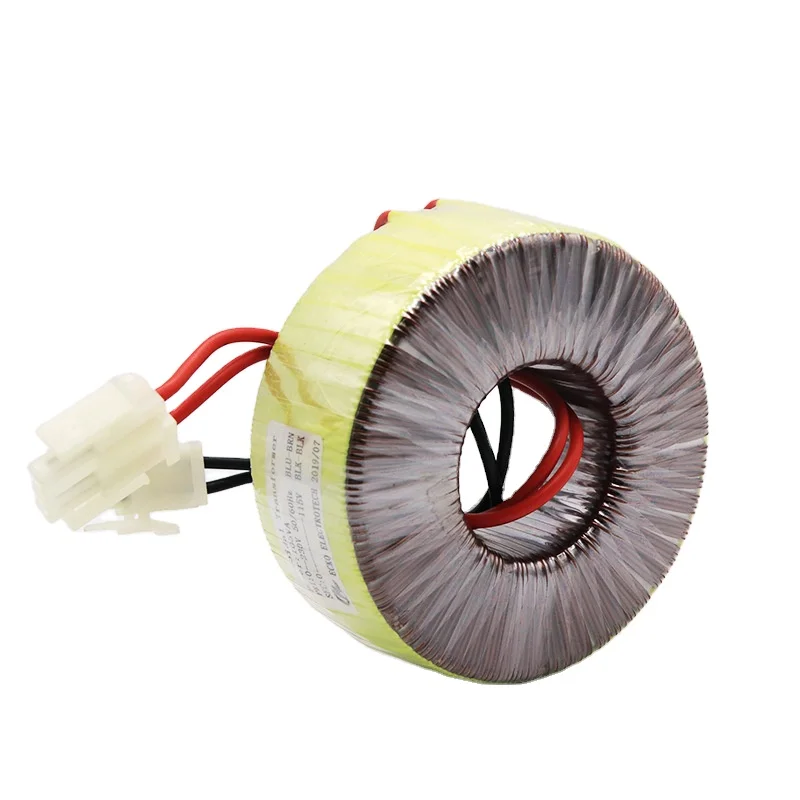

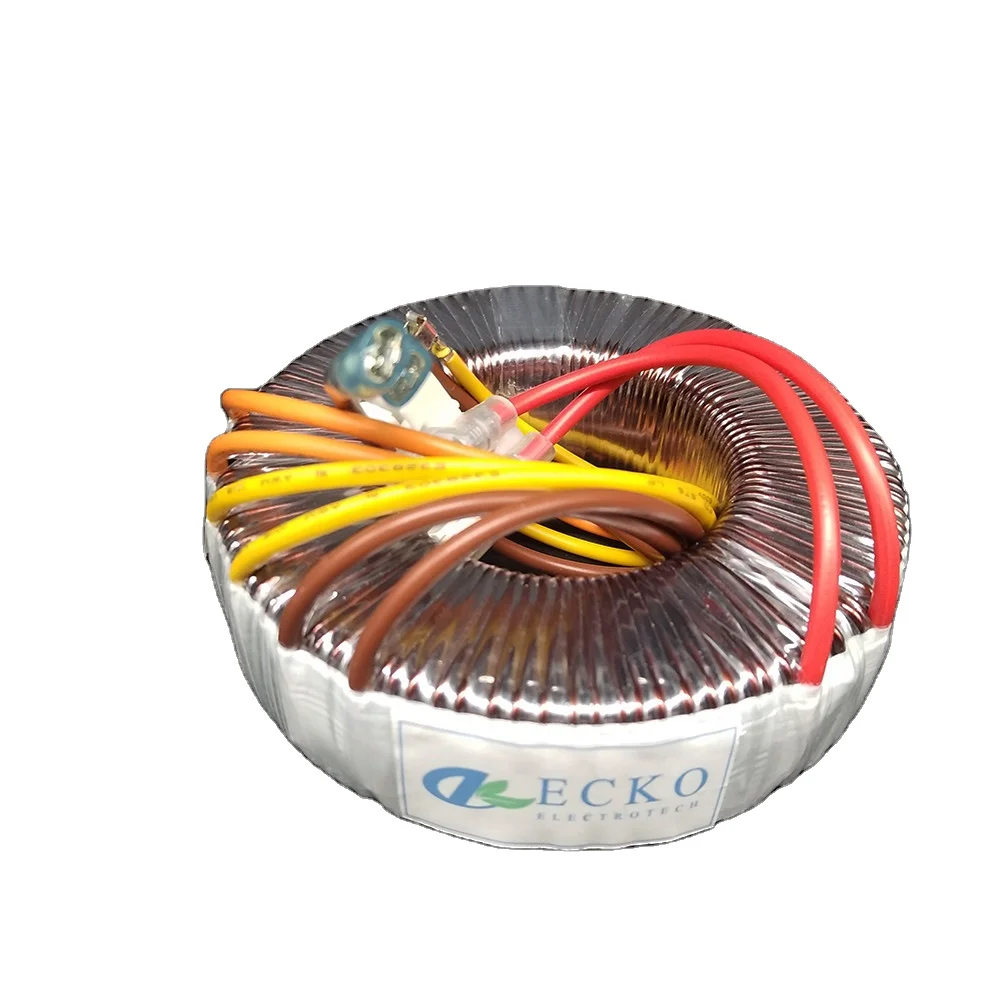

High Voltage Toroidal Transformer 45 0 45 Toroidal Low Power Isolation Transformer 220v 80v Transformer

High Voltage Toroidal Transformer 45 0 45 Toroidal Low Power Isolation Transformer 220v 80v Transformer

This high-quality toroidal transformer delivers exceptional performance with its 45-0-45V dual secondary output configuration. Featuring superior isolation properties, it effectively separates input and output circuits for enhanced safety and noise reduction. The transformer efficiently converts 220V input to 80V output while maintaining minimal power loss and electromagnetic interference, thanks to its toroidal core design. Its compact circular shape ensures space efficiency and lower stray magnetic fields compared to traditional transformers. Ideal for audio equipment, power supplies, control systems, and other applications requiring reliable voltage conversion and electrical isolation. This low-power transformer runs cool and quiet, with reduced mechanical hum and excellent voltage regulation. Built with premium materials and strict quality control, it offers long-term stability and dependable operation in various industrial and commercial settings.

Overview
Recommended Products

High Voltage Toroidal Transformer 45 0 45 Toroidal Low Power Isolation Transformer 220v 80v Transformer details

Product Introduction

High Voltage Toroidal Transformer 45 0 45 Toroidal Low Power Isolation Transformer 220v 80v Transformer manufacture

Frequency	50HZ/60HZ
Rated Power	20-25000VA
Wire	Copper
Process	Coil Winding
Insulation Class	Class B,Class F,Class E
Certification	CE,RoHs,ISO
Temperature rise	≤65°C
Core material	CRGO silicon steel core
Customized made	Yes

Application:
Medical equipment, Automatic control equipment, home appliances, audio amplifier, CCTV security, broadcasting system，solar power, wind power, telecommunications,etc

Product Features:
Long life
Energy conserving
High Efficiency
Low Temperature Operation
No Radiation, no noise
High standard, high quality

High Voltage Toroidal Transformer 45 0 45 Toroidal Low Power Isolation Transformer 220v 80v Transformer factory

Single-phase toroidal transformers, power range from 20VA to 5000VA. Designed and tested according to EN61558. Suitable forinstallation in electronically equipment.

Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.
Short circuit and overload protected with thermal fuse(or thermal switch) on primary side. Up to 50% less weight than a similar conventional transformer.

Lower magnetisation currents and no-load losses.

High-end silicon steel core

Core insulation

Copper wire winding

Lead wire fitting

Finished product

Testing

Model	Power (VA)	Dimension(MM)			Weight(KG)
Model	Power (VA)			OD	Weight(KG)	Height
EKT020	20	63	28	0.3
EKT050	50	72	40	0.6
EKT080	80	78	47	0.9
EKT100	100	92	48	1.1
EKT120	120	89	52	1.4
EKT160	200	99	52	1.8
EKT200	200	108	52	2.1
EKT250	250	110	66	2.3
EKT300	300	112	66	2.7
EKT400	400	130	70	3.8
EKT500	500	140	75	4.7
EKT600	600	145	78	5.5
EKT800	800	160	80	7.2
EKT1000	1000	170	90	9
EKT2000	2000	205	95	13.5
EKT3000	3000	220	120	18.5
EKT4000	4000	260	125	24
EKT4500	4500	285	130	25.5
EKT5000	5000	295	138	28.5
EKT6000	6000	300	145	34
