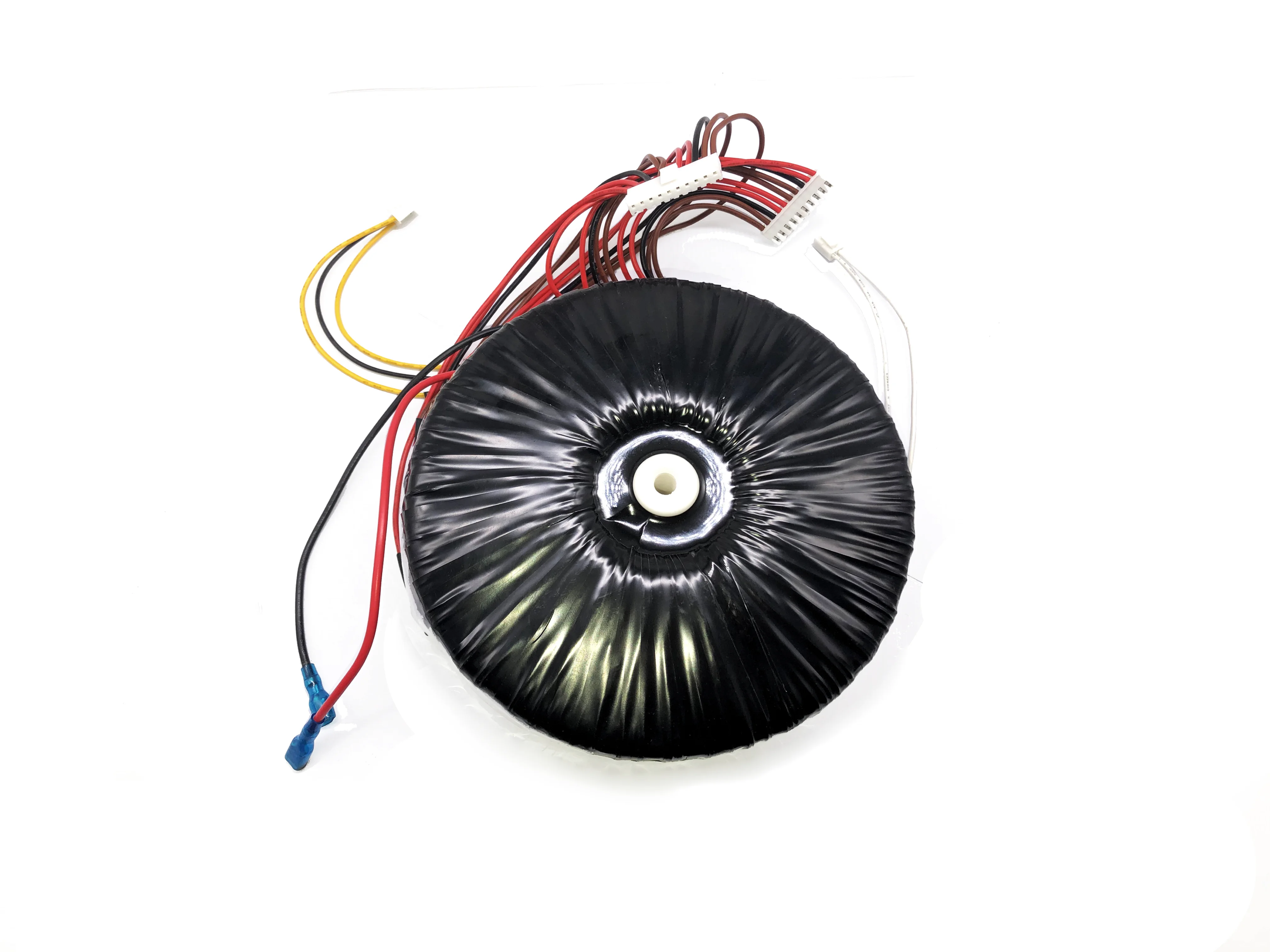

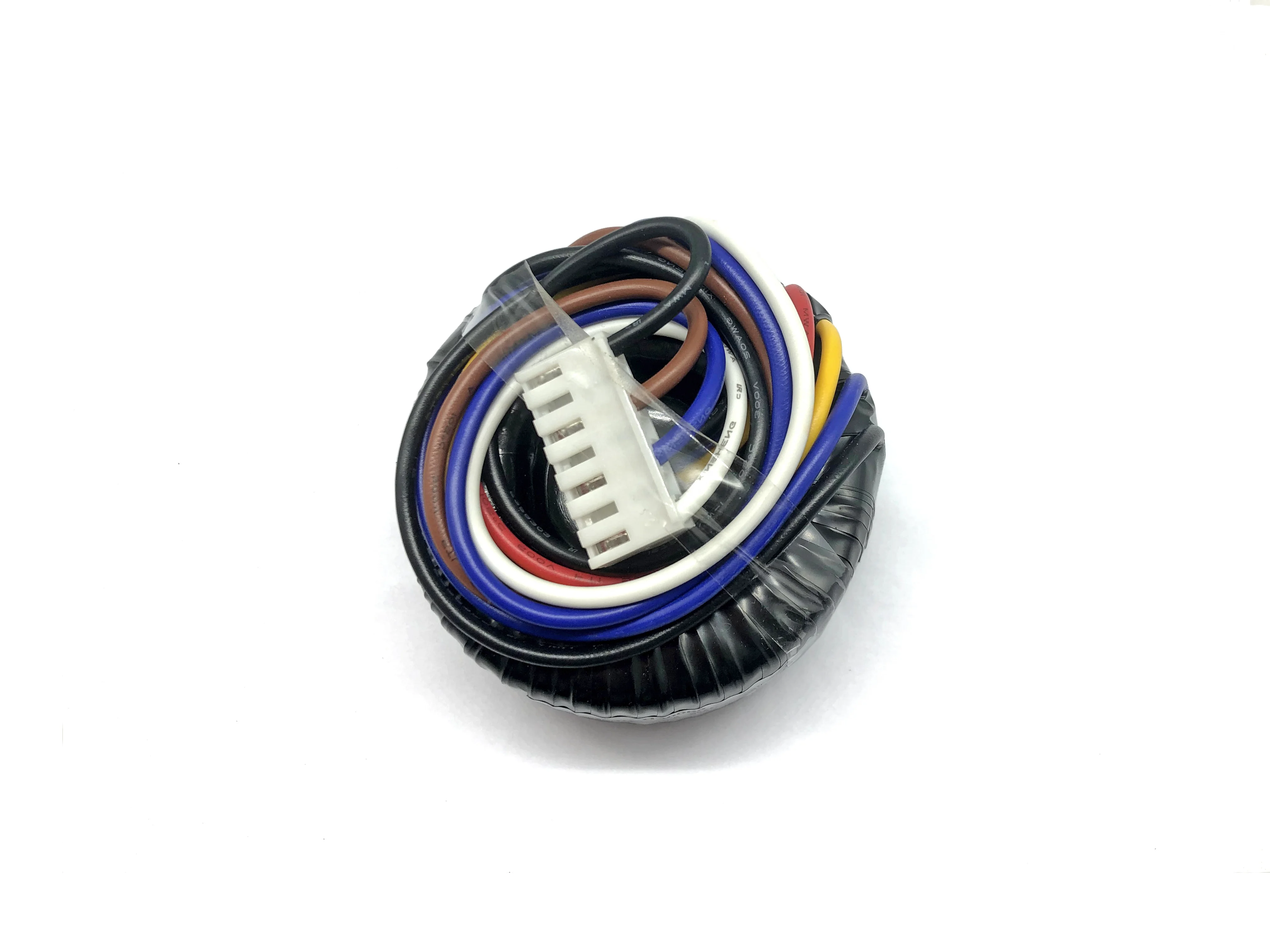

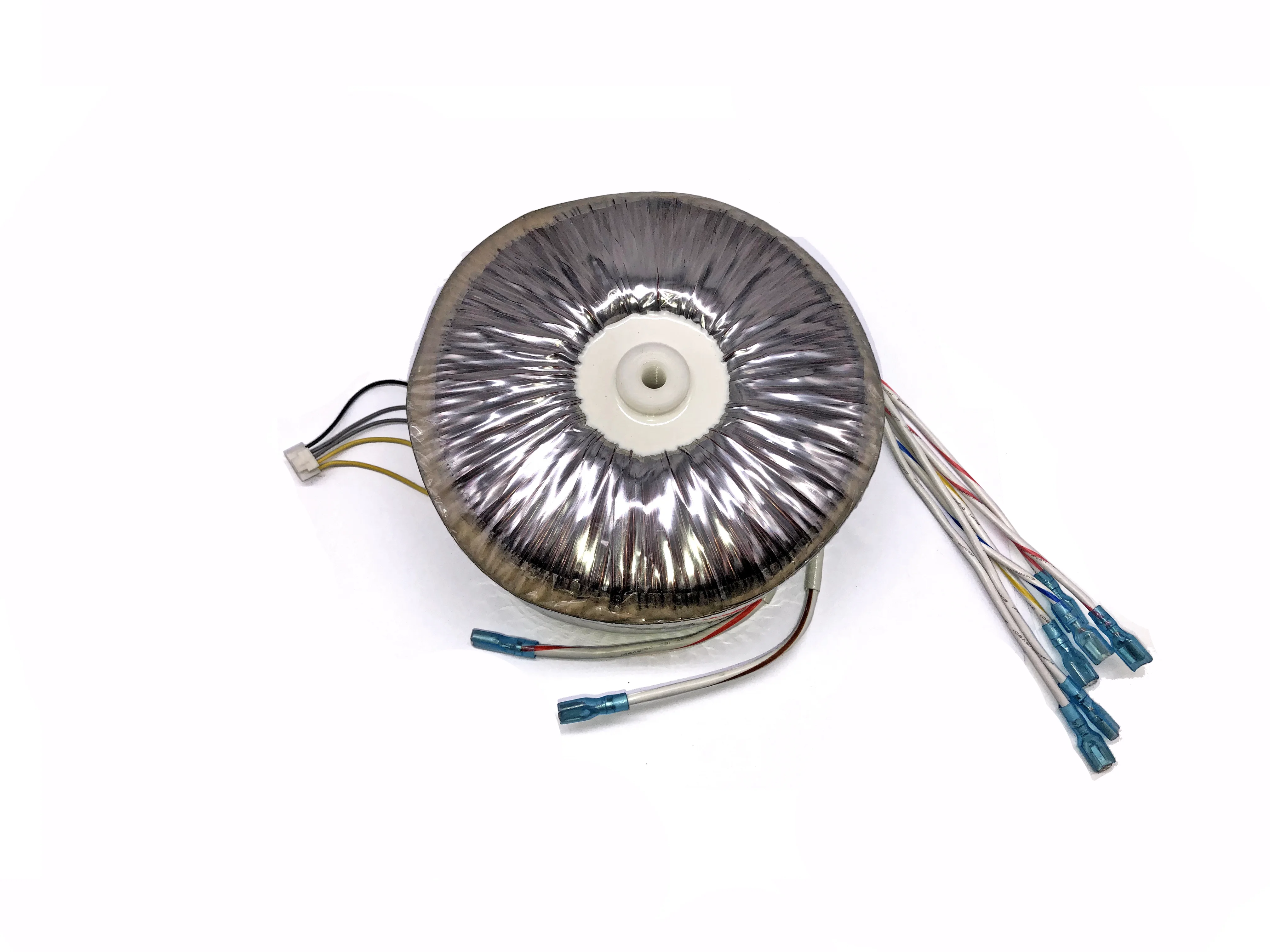

Ac 240v 220v 120v 110v 30v Electric Power Toroidal Copper Wire Winding Transformer 500w
This high-quality toroidal transformer delivers reliable power conversion with multiple voltage options including 240V, 220V, 120V, 110V, and 30V AC. Rated at 500W, it features premium copper wire winding for superior conductivity and minimal power loss. The toroidal core design ensures efficient operation with reduced electromagnetic interference and lower operating temperatures compared to traditional transformers. Its compact, circular shape saves space while providing excellent voltage regulation and low noise operation. Perfect for various industrial and commercial applications including power supplies, audio equipment, control systems, and voltage conversion. Built with durability in mind, this transformer offers stable performance and long service life. Each unit undergoes rigorous testing to ensure safety and reliability in demanding environments.
- Overview
- Recommended Products










Frequency |
50HZ/60HZ |
Rated Power |
3000VA |
Wire |
Copper |
Process |
Coil Winding |
Insulation Class |
Class B,Class F,Class E |
Certification |
CE,RoHs,ISO |
Temperature rise |
≤65°C |
Core material |
CRGO silicon steel core |
Customized made |
Yes |




Model
|
Power (VA) |
Dimension(MM) |
Weight(KG)
|
||
OD |
Height |
||||
EKT020 |
20 |
63 |
28 |
0.3 |
|
EKT050 |
50 |
72 |
40 |
0.6 |
|
EKT080 |
80 |
78 |
47 |
0.9 |
|
EKT100 |
100 |
92 |
48 |
1.1 |
|
EKT120 |
120 |
89 |
52 |
1.4 |
|
EKT160 |
200 |
99 |
52 |
1.8 |
|
EKT200 |
200 |
108 |
52 |
2.1 |
|
EKT250 |
250 |
110 |
66 |
2.3 |
|
EKT300 |
300 |
112 |
66 |
2.7 |
|
EKT400 |
400 |
130 |
70 |
3.8 |
|
EKT500 |
500 |
140 |
75 |
4.7 |
|
EKT600 |
600 |
145 |
78 |
5.5 |
|
EKT800 |
800 |
160 |
80 |
7.2 |
|
EKT1000 |
1000 |
170 |
90 |
9 |
|
EKT2000 |
2000 |
205 |
95 |
13.5 |
|
EKT3000 |
3000 |
220 |
120 |
18.5 |
|
EKT4000 |
4000 |
260 |
125 |
24 |
|
EKT4500 |
4500 |
285 |
130 |
25.5 |
|
EKT5000 |
5000 |
295 |
138 |
28.5 |
|
EKT6000 |
6000 |
300 |
145 |
34 |
