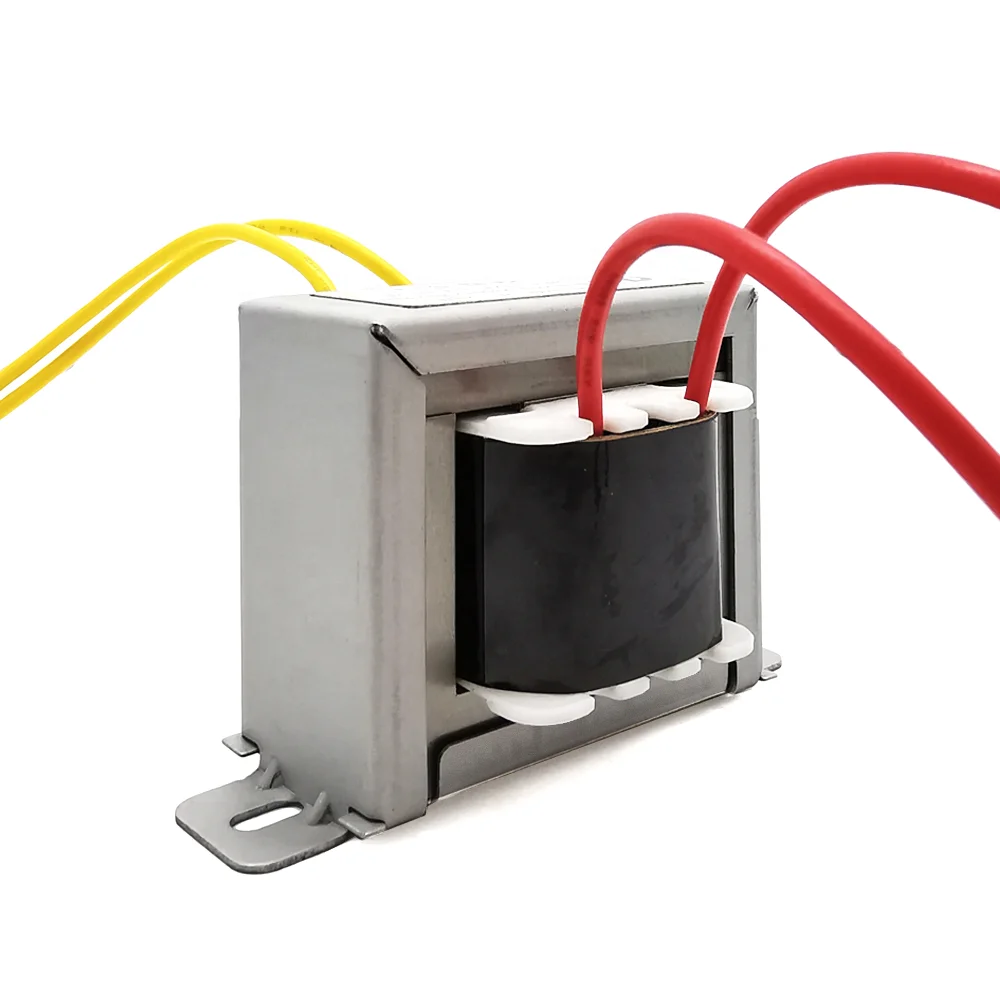

Customizable Industrial Control EI Power Transformer 380V to 110V/120V 220V Input/24V Output for CNC Machines & Servo Drives

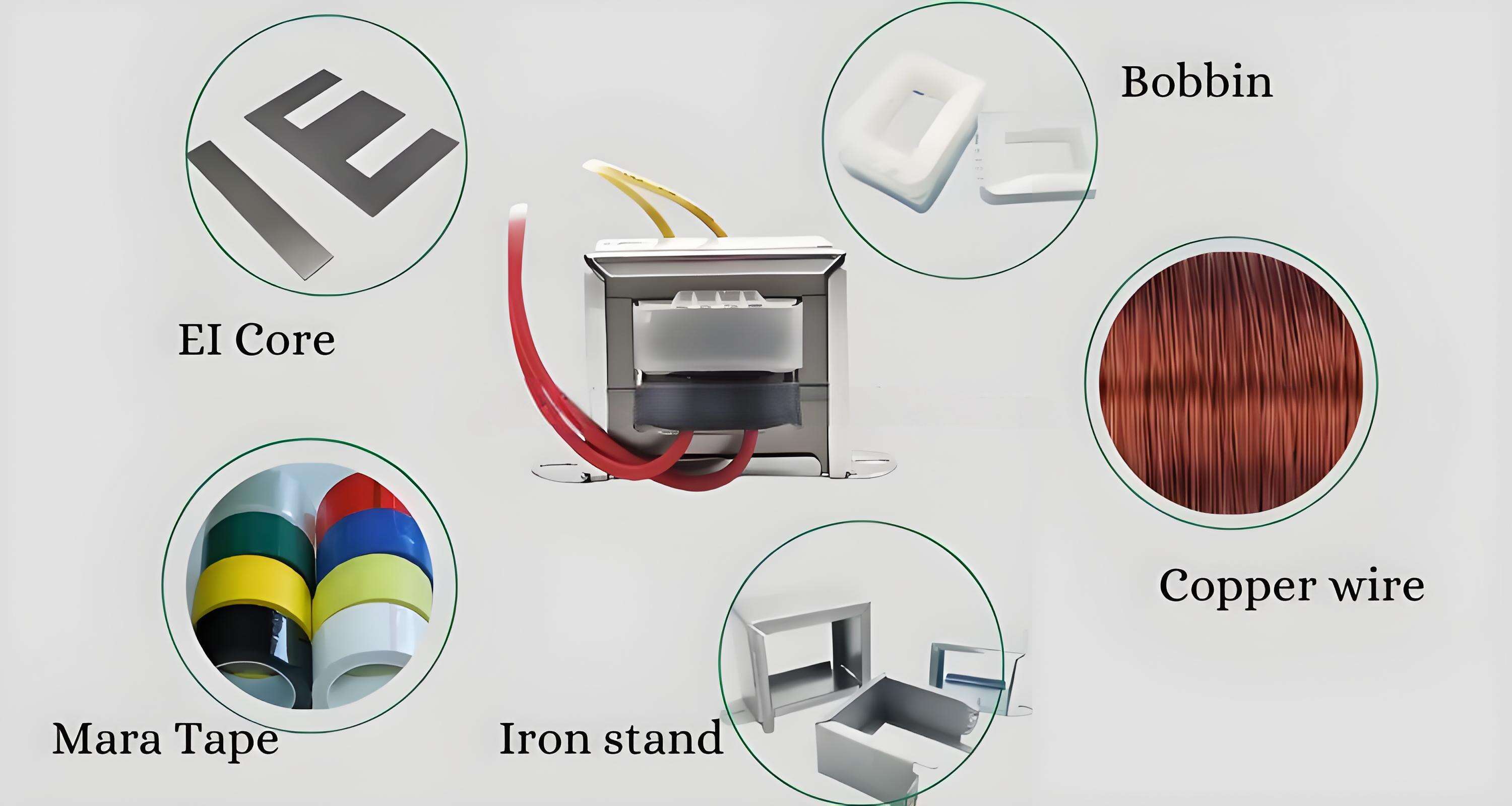

This versatile EI power transformer is specifically engineered for industrial control applications, offering reliable voltage conversion for CNC machines and servo drive systems. With customizable input options of 380V, 110V/120V, or 220V and a stable 24V output, it provides the flexibility needed for various industrial equipment. The transformer features high-quality silicon steel cores and copper windings to ensure excellent electromagnetic performance and minimal power loss. Its robust construction meets industrial standards for durability and safety, while the EI laminated core design promotes efficient heat dissipation. Perfect for industrial automation, machine tools, and control panels, this transformer delivers consistent power supply with protection against overload and short circuits. Each unit undergoes rigorous testing to guarantee long-term reliability in demanding industrial environments. Custom specifications are available to meet your specific requirements.
- Overview
- Recommended Products
Exhibition
Products Description
ECKO ei transformer according to EN61558. Suitable for installation in electronically equipment.
Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.
Short circuit and overload protected with thermal fuse on primary side. Up to 50% less weight than a similar conventional transformer.Low magnetisation currents and no-load losses.
Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.
Short circuit and overload protected with thermal fuse on primary side. Up to 50% less weight than a similar conventional transformer.Low magnetisation currents and no-load losses.
Technical specifications:
Frequency: 50-60HzInput voltage: AC100V/110/115V/120V/220V/230V/240V/380V+-10%
Output voltage: AC12/24V+-2%
Power: Ranging From 1VA to100VA
According to: EN61558
HI-POT test: 3750VAC RMSInsulation Class: B(130°C)Ambient
Temp.(ta)：40°C
Protection：IP00
Output voltage: AC12/24V+-2%
Power: Ranging From 1VA to100VA
According to: EN61558
HI-POT test: 3750VAC RMSInsulation Class: B(130°C)Ambient
Temp.(ta)：40°C
Protection：IP00

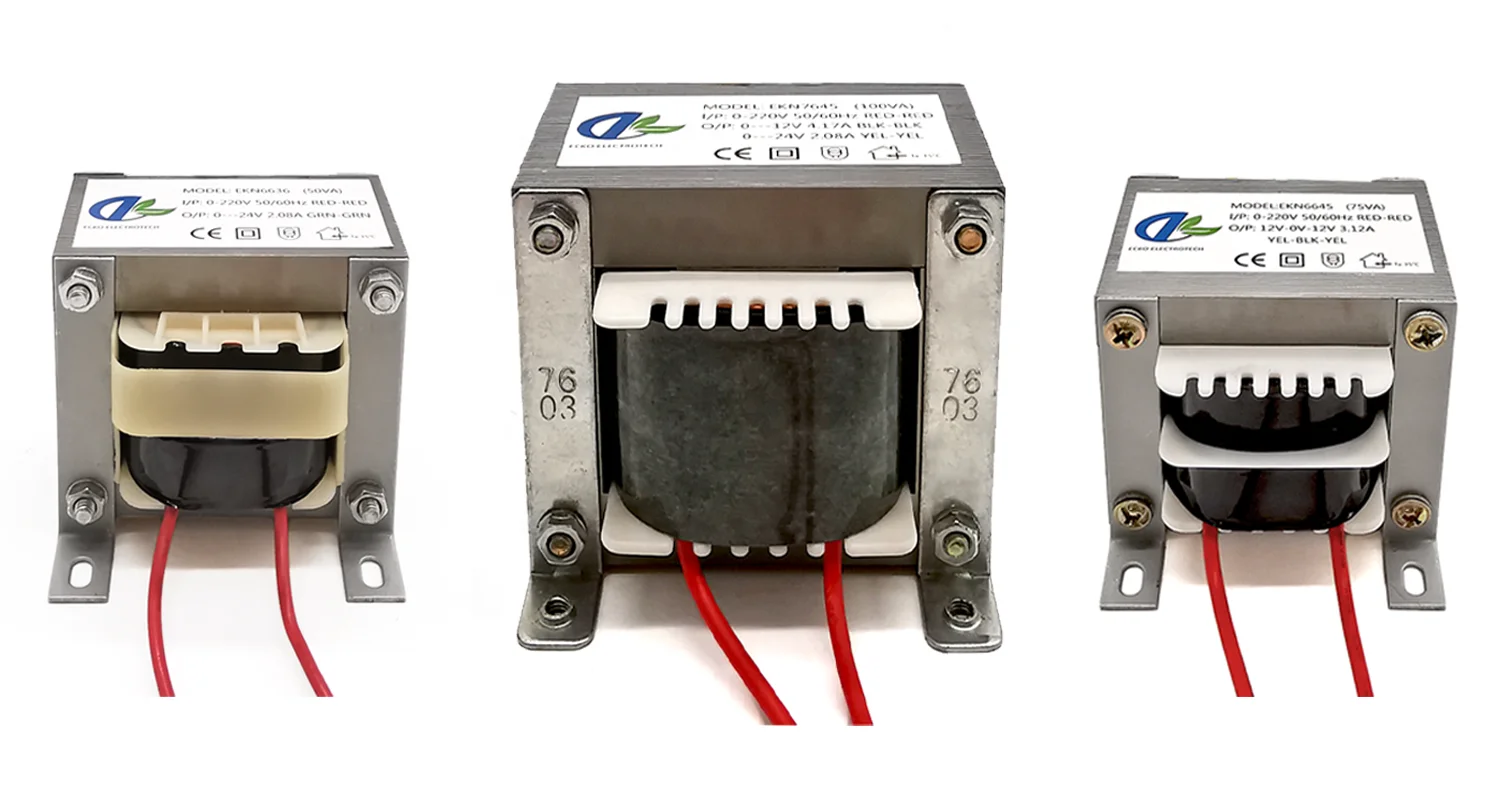

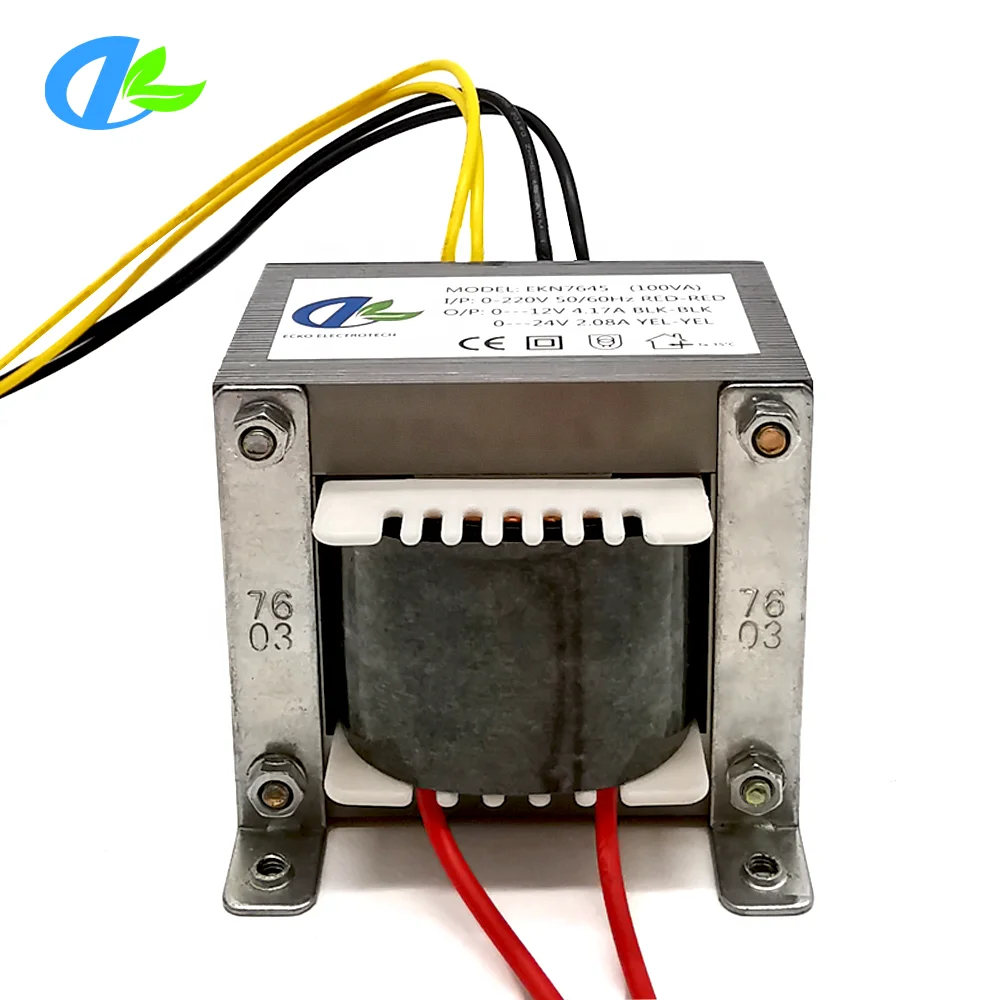

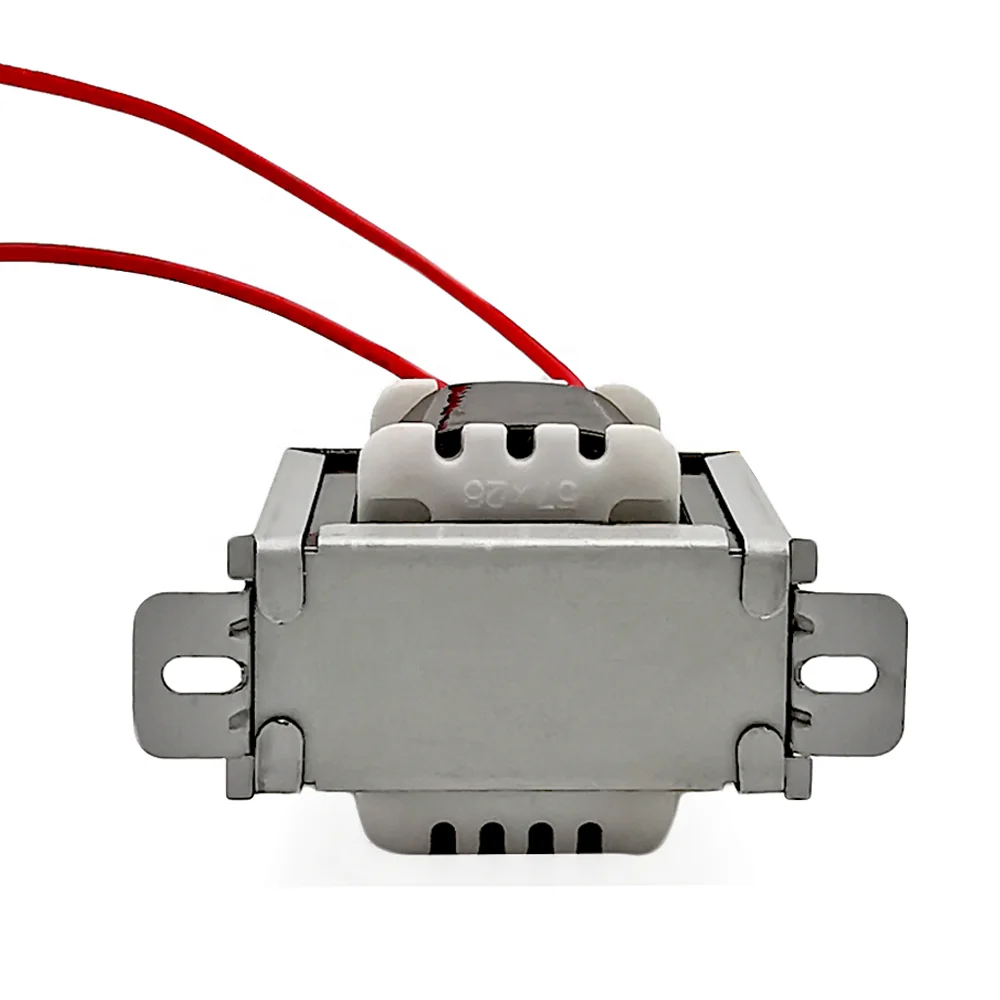

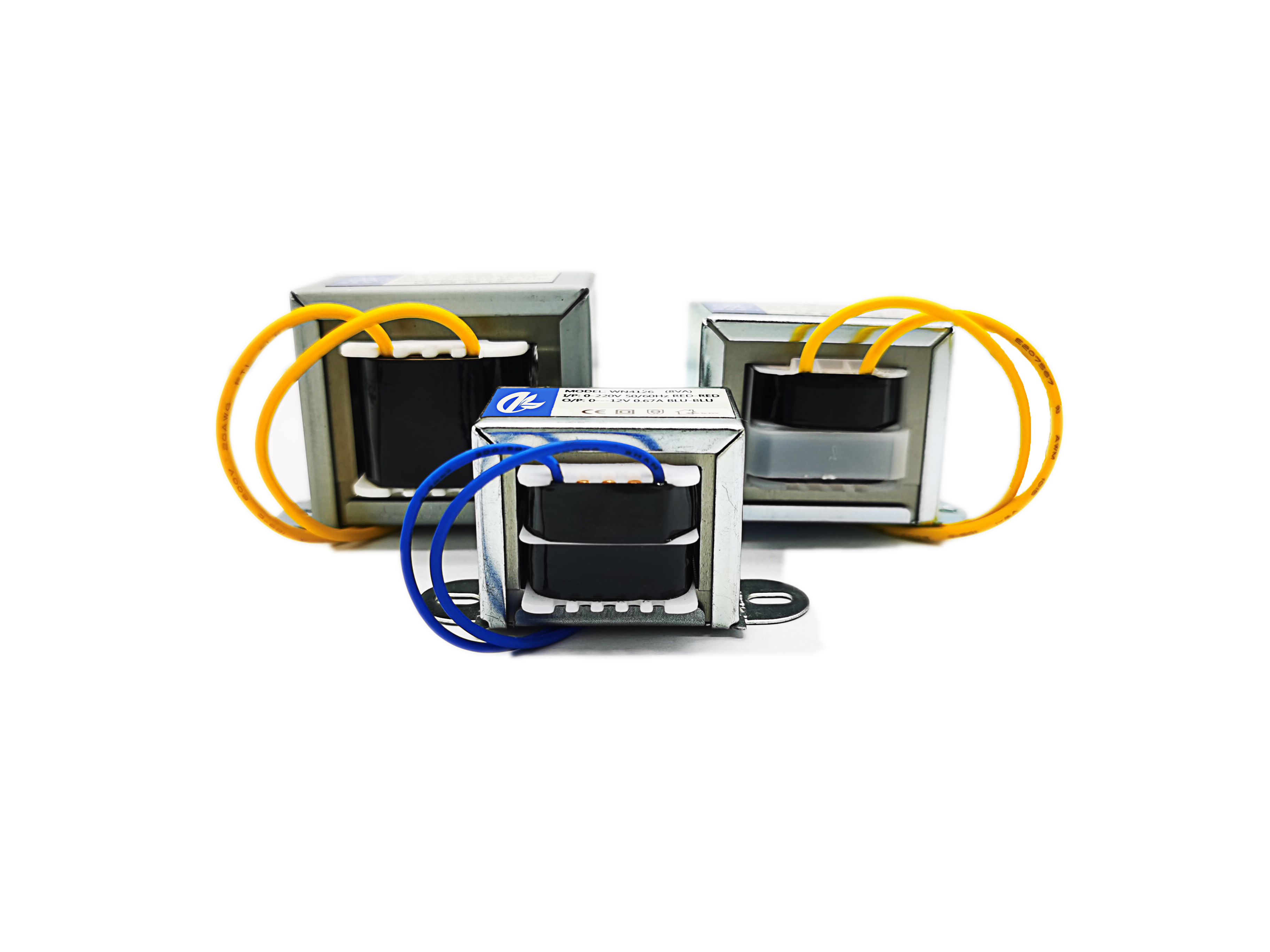

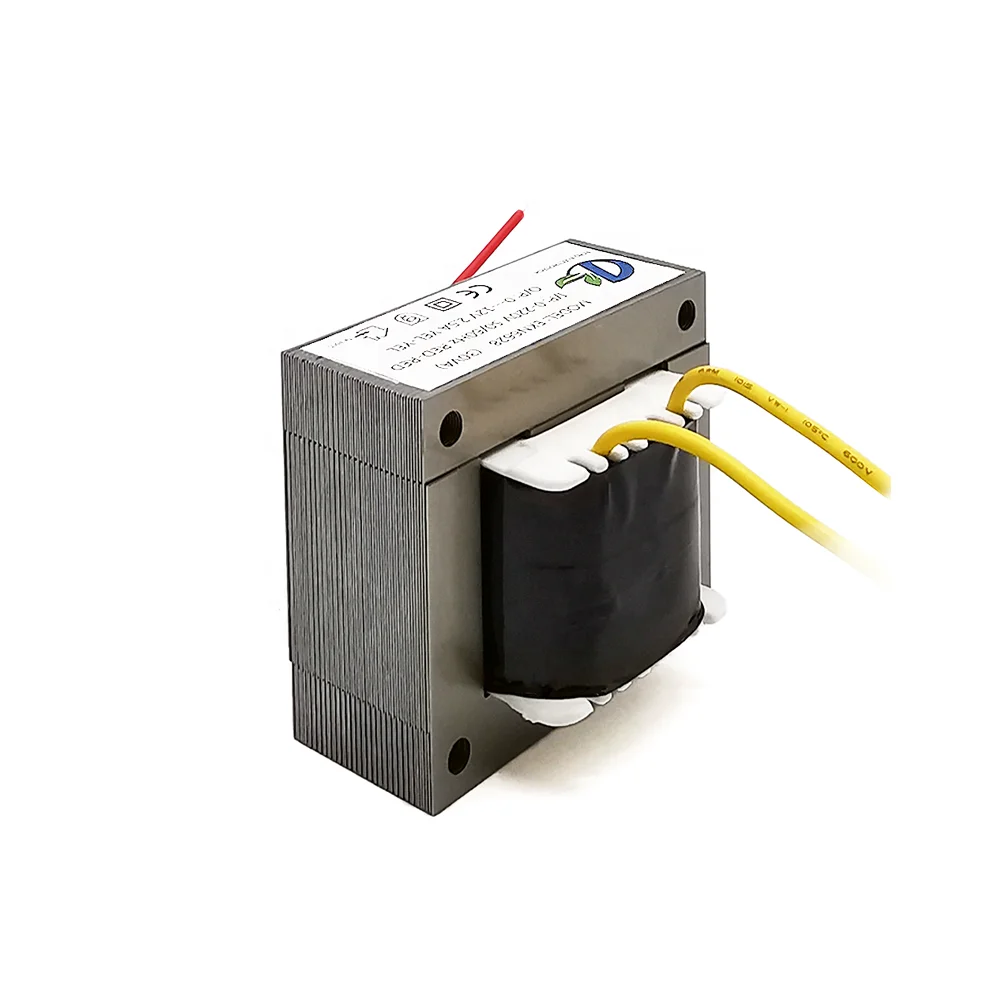

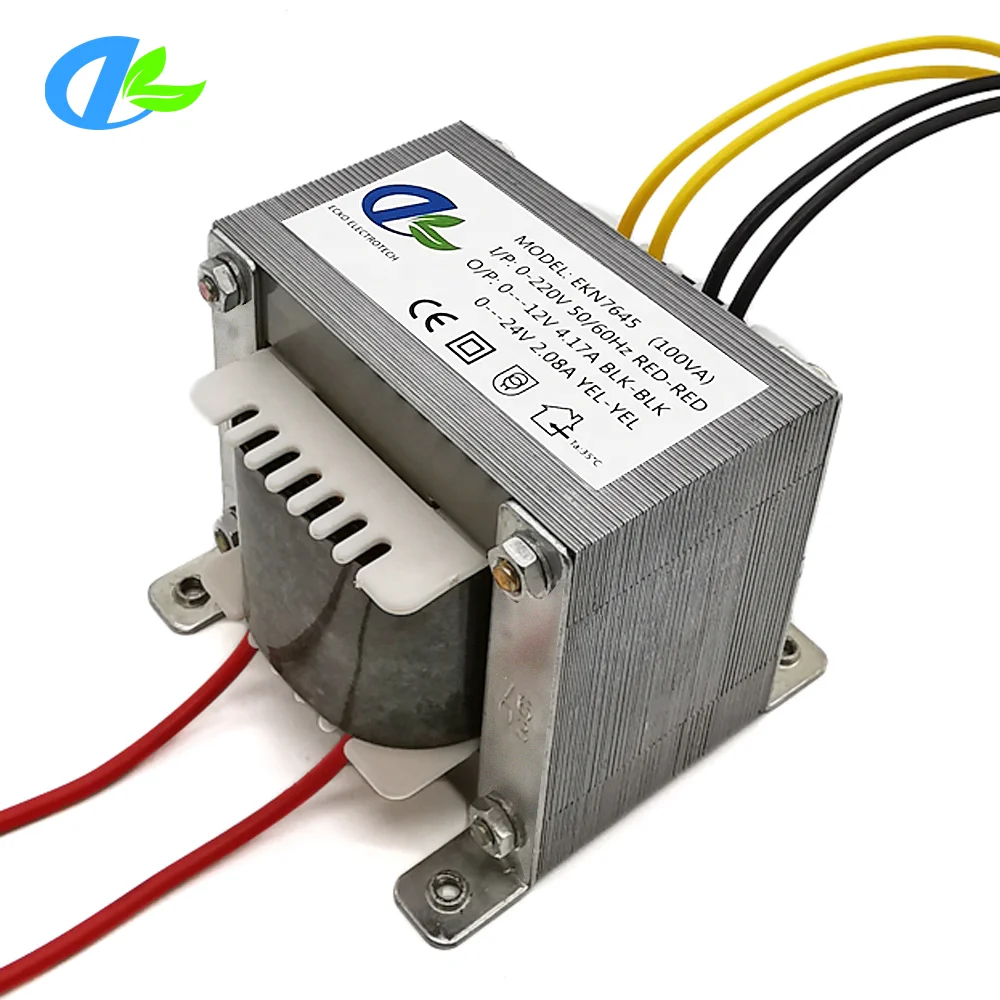

Details Images
Packing&Shipping
Related Product
FAQ
1.Can you make the size to Height XXmm, Width XXmm?
Yes Sir, the size canbe customized. Our dimension data sheet is typical data for reference,customized are welcome.
2. I need the power from XXVA to XXVA transformer.
Yes Sir, we produce transformer power range from 1VA to 25KVA.
3.Can you manufacture transformers with RoHs compliant?
Yes. Our materials used in transformers are totally in accordance with the RoHS directive.
4.Can you supply transformers with international approved certifications?
Yes. Our transformers have already been EN61558, JET approved.
