accordance with EN61558.
All designs are 50/60 Hz rated and are available in a 105⁰C, 130⁰C, 150⁰C or 180⁰C temperature class.

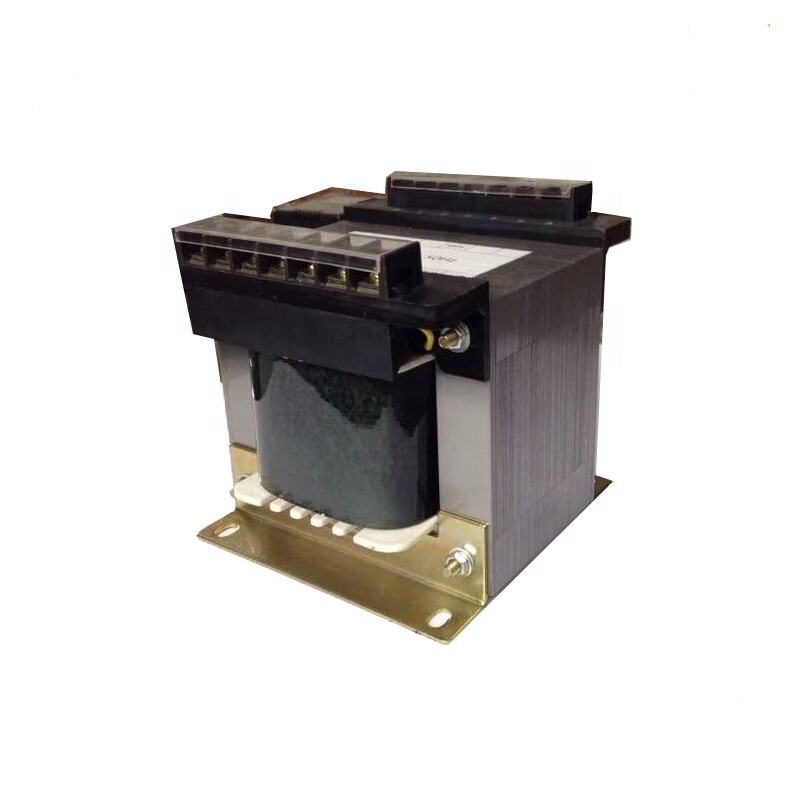

BK-50VA Control Power Transformer 220V 1380V Input 12V 24V 110V 220V Output 50Hz/60Hz Copper BK Type for 220 VAC/24VAC Work
The BK-50VA Control Power Transformer is a versatile and reliable solution for your voltage conversion needs. This high-quality transformer features copper windings for superior conductivity and durability, capable of handling various input voltages (220V/1380V) and providing multiple output options (12V/24V/110V/220V). Compatible with both 50Hz and 60Hz frequencies, it's ideal for industrial control systems, automation equipment, and various electrical installations. The BK-type design ensures stable performance and excellent isolation between primary and secondary windings, while the 50VA capacity makes it suitable for small to medium-sized control applications. Built with safety and efficiency in mind, this transformer offers protection against overheating and short circuits. Its compact size and easy installation make it a practical choice for control panels, HVAC systems, and other industrial applications where reliable power transformation is essential.
- Overview
- Recommended Products
Ecko's control transformers range from 25VA through 5000VA in any class voltage combination designed and manufactured in
accordance with EN61558.
All designs are 50/60 Hz rated and are available in a 105⁰C, 130⁰C, 150⁰C or 180⁰C temperature class.
accordance with EN61558.
All designs are 50/60 Hz rated and are available in a 105⁰C, 130⁰C, 150⁰C or 180⁰C temperature class.

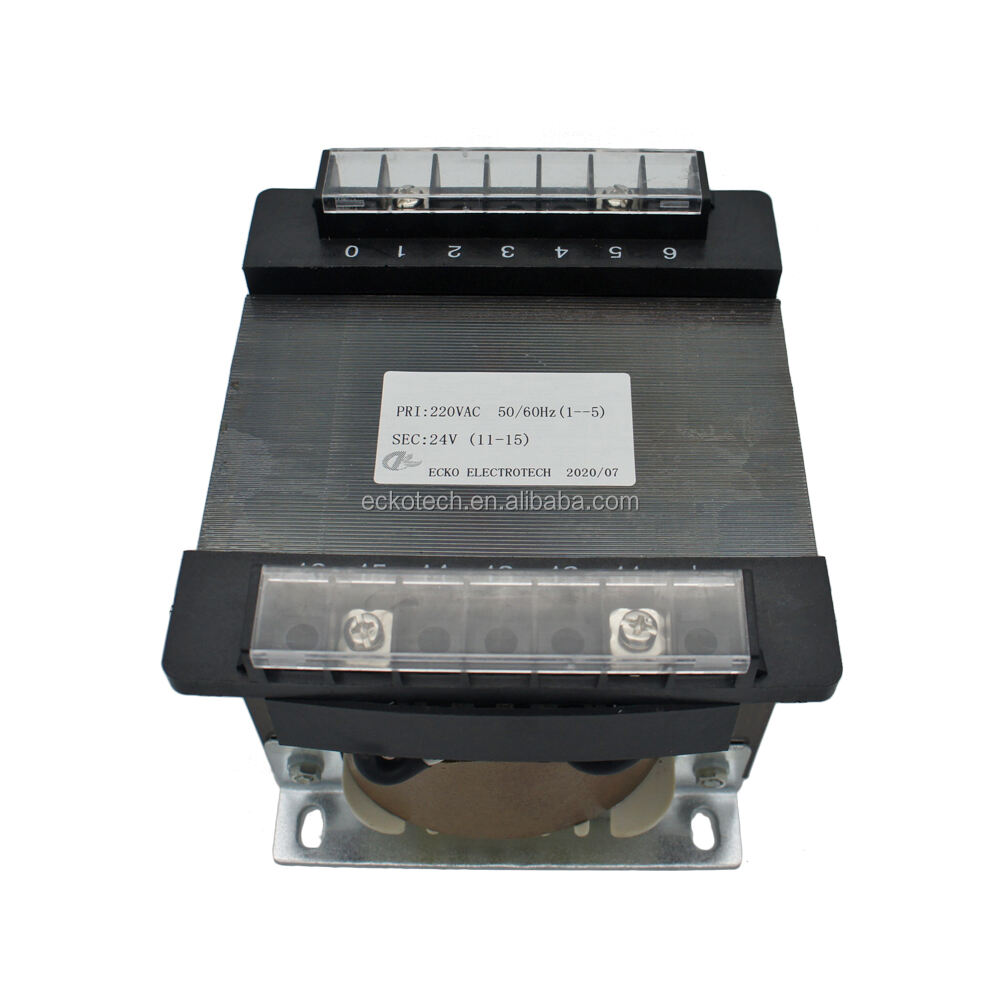

Product Name |
Single Phase EI Control BK Transformer |
Model No. |
EKB9645 |
Rated Input Voltage |
0-220V-380V (custom available) |
Rated Output Voltage |
0-12V 0-24V (custom available) |
Frequency |
50/60Hz |
Rated Power |
150VA (custom available) |
Dimension |
L105XW87XH108 MM |
Weight |
3.5 kgs |
Insulation Class |
Class B/Class F/Class E |
Ambient temperature |
Ta=25°C |
HI-POT test |
4000VAC |
Degree of protection |
IP00 |
Certificate |
CE-ROHS, CE-ISO,CE-LVD |
Standard |
EN61558, EN61000,IEC52321 |
Custom Made |
Yes |
Application |
Long-term continuous operation at nominal capacity, are widely used in machine tools and machinery in general electrical power source as a control, local lighting and power indication. |

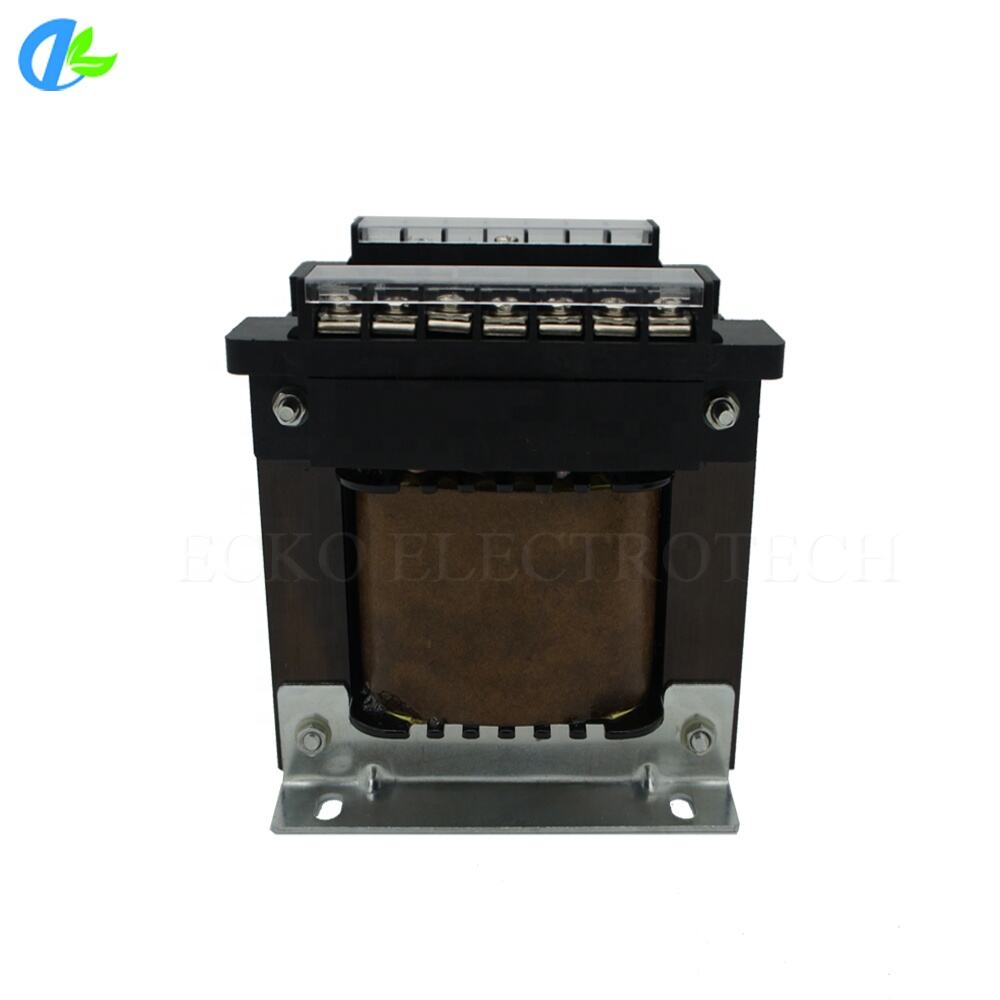

Grain Oriented Electrical EI Silicon Steel Lamination Sheet
Constructed with high quality silicon steel laminations that provide optimum performance and reliability. High saturation magnetic flux density, high efficiency, small excitation power, low loss, good temperature stability.
Flame retardant Nylon Coil Bobbin
Enameled Copper Wire Winding
Solid Rolled Steel Mounting Brackets
Brackets vary in size to conform to the size of the transformer core.
Made of heavy steel and welded or bolted to the core,providing superior strength in a compact design.
