30VA R Type Output Power Transformer 0-110-120V 24V 6V Dual Output for Audio Linear Power Supply

30VA R Type Output Power Transformer 0-110-120V 24V 6V Dual Output for Audio Linear Power Supply

This high-quality 30VA R-type power transformer is designed specifically for audio linear power supply applications, offering reliable dual output voltage capabilities. With primary input voltages of 0-110-120V and secondary outputs of 24V and 6V, this transformer provides stable power conversion for your audio equipment. The R-type core construction ensures minimal electromagnetic interference and low noise operation, making it ideal for sensitive audio circuits. Built with premium copper windings and high-grade silicon steel core, this transformer delivers consistent performance and excellent voltage regulation. Its compact design and robust construction make it perfect for DIY audio projects, amplifiers, and professional audio equipment. The transformer features reliable insulation and comes with standard mounting holes for easy installation. Whether you're building a custom power supply or upgrading existing audio gear, this transformer offers the perfect balance of performance and reliability.

Overview
Recommended Products

Products Description

Frequency	50HZ/60HZ
Rated Power	5-200VA
Wire	Copper
Process	Coil Winding
Insulation Class	Class B,Class F,Class E
Certification	CE,RoHs,ISO
Temperature rise	â‰¤65Â°C
Core material	CRGO silicon steel core
Customized made	Yes

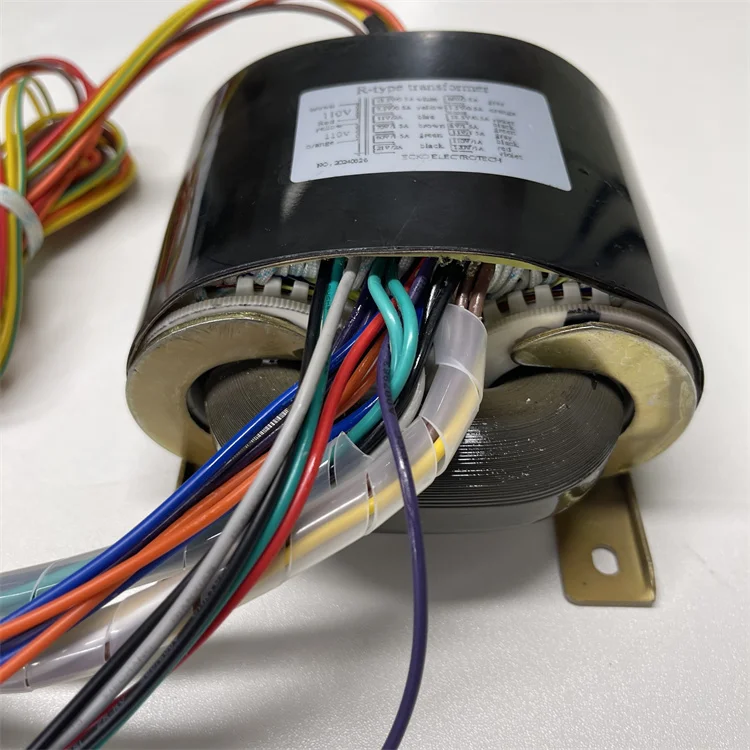

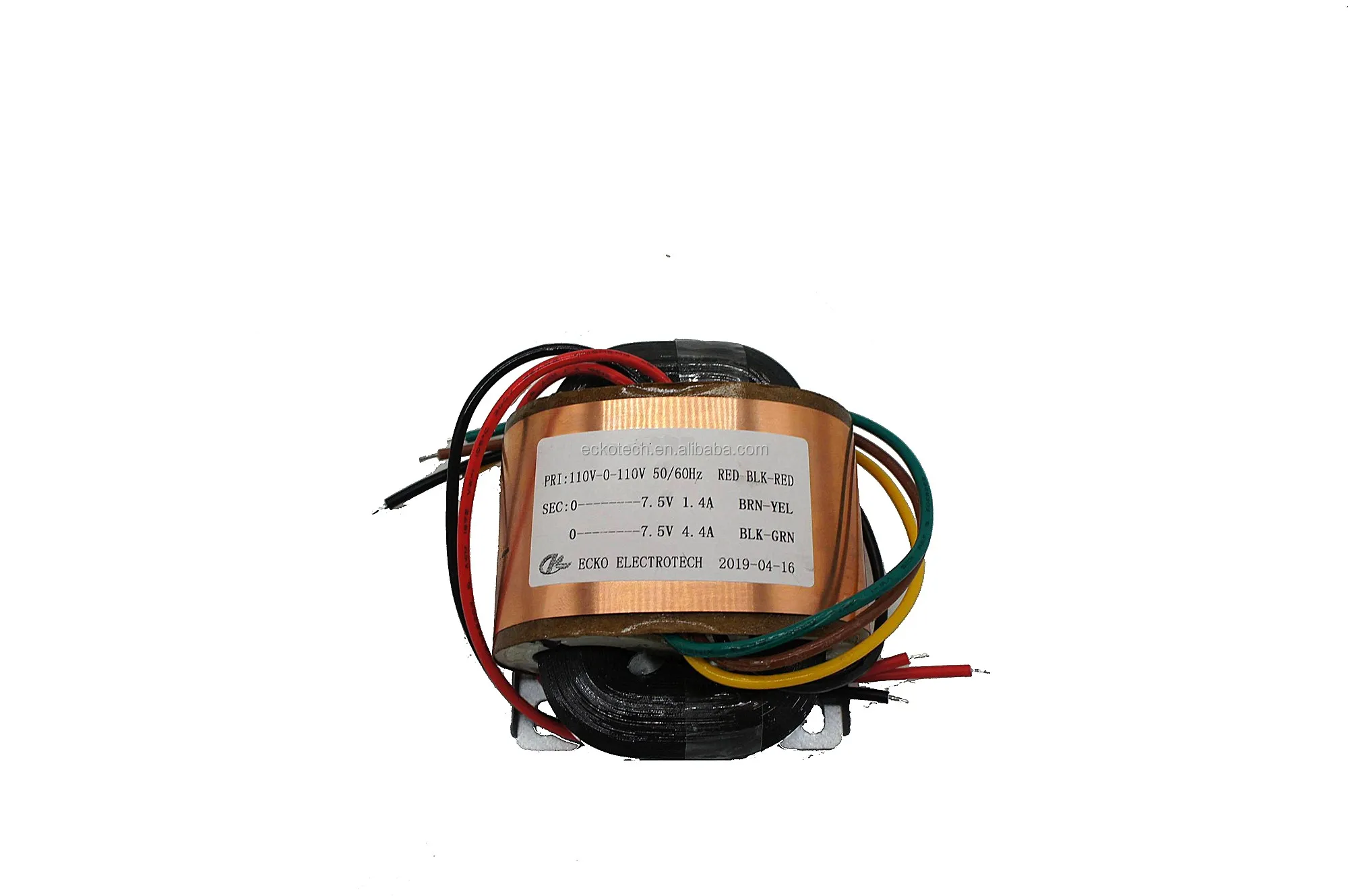

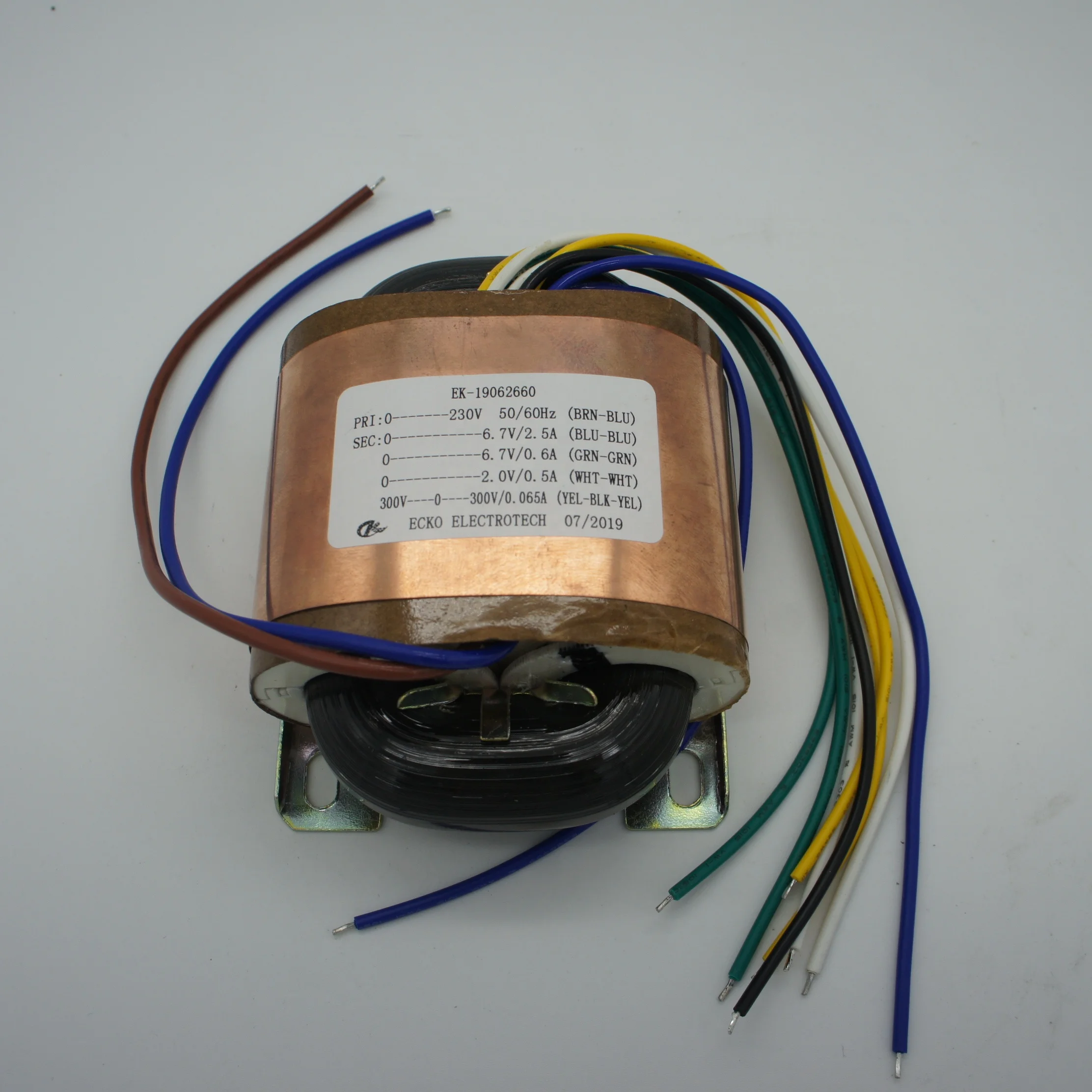

30VA R Type Output Power Transformer 0-110-120V 24V 6V Dual Output for Audio Linear Power Supply manufacture

30VA R Type Output Power Transformer 0-110-120V 24V 6V Dual Output for Audio Linear Power Supply details

30VA R Type Output Power Transformer 0-110-120V 24V 6V Dual Output for Audio Linear Power Supply supplier

30VA R Type Output Power Transformer 0-110-120V 24V 6V Dual Output for Audio Linear Power Supply factory

Model	Power	Dimension(mm)							Weight
R-5	2-6	58	47	26	45	33	4	0.2
R-8	7-10	70	61	33	53	44	4	0.3
R-10	11-15	75	61	37	68	48	4	0.4
R-20	20-24	82	70	39	56	46	4X7	0.5
R-25	25-34	83	72	42	70	55	4	0.6
R-30	35-44	97	77	42	70	60	5	0.7
R-40	45-54	99	80	44	70	60	5	0.9
R-50	55-65	102	90	48	75	65	5	1
R-65	65-80	105	95	51	90	65	5	1.2
R-80	70-95	125	90	52	90	70	5	1.4
R-100	96-130	126	103	55	100	80	5	1.7
R-160	131-200	140	115	63	100	85	5	2.5
R-260	201-280	160	121	66	130	95	5	3.4
R-320	290-370	163	128	70	135	95	5	3.8
R-600	371-640	190	145	85	142	100	8	6.3
R-1000	650-1250	227	172	99	180	140	8	10
R-1500	1300-1800	238	180	102	175	145	8	14
R-2000	1800-2500	240	200	105	185	160	8	16.5
R-3000	2500-3500	260	226	125	200	180	8	23.5
R-5000	4000-5500	390	300	180	300	240	8	40
