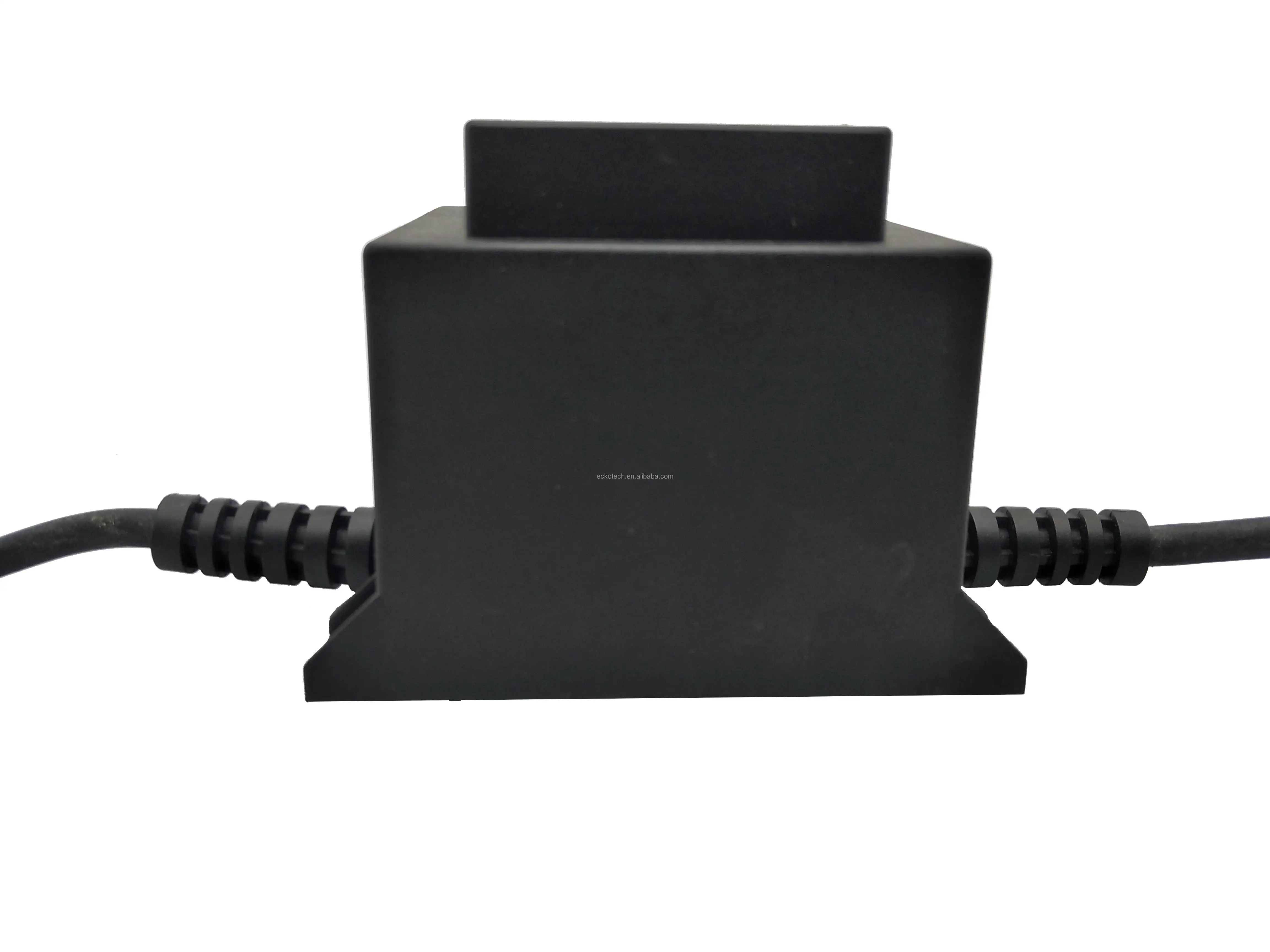

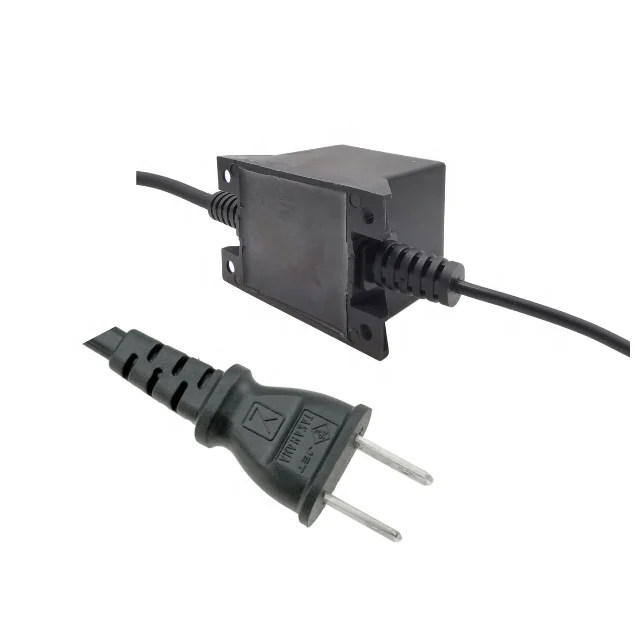

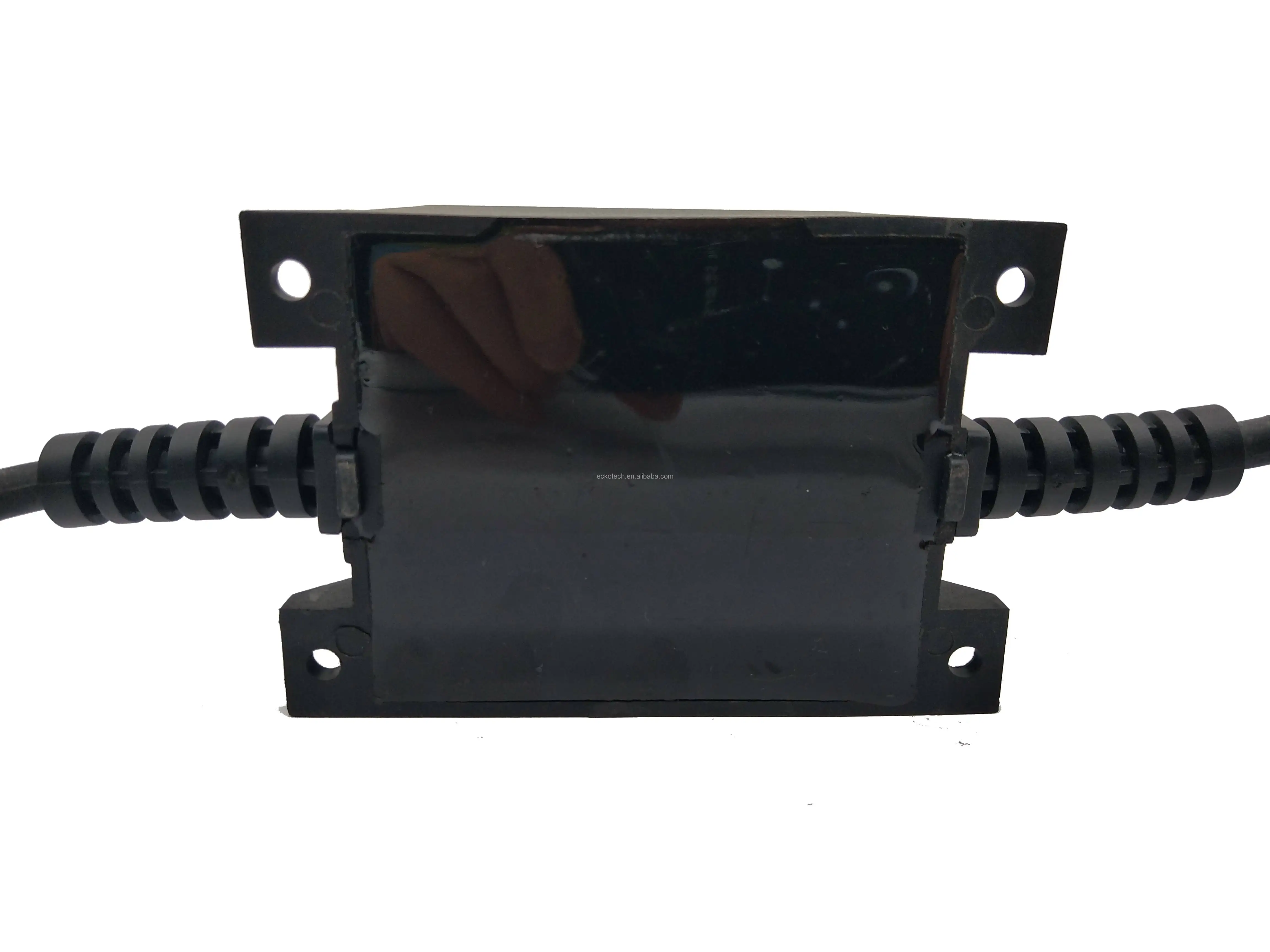

Ultra Quiet 220V to 18V 50VA Square Waterproof Access Control System Transformer for Security Device Power 50Hz 60Hz Frequency
- Security-Specific Power Conversion: 220V to 18V (50VA), ideal for access control & surveillance devices
- Ultra-Quiet Global Compatibility: Advanced noise reduction, stable 50Hz/60Hz operation for worldwide use

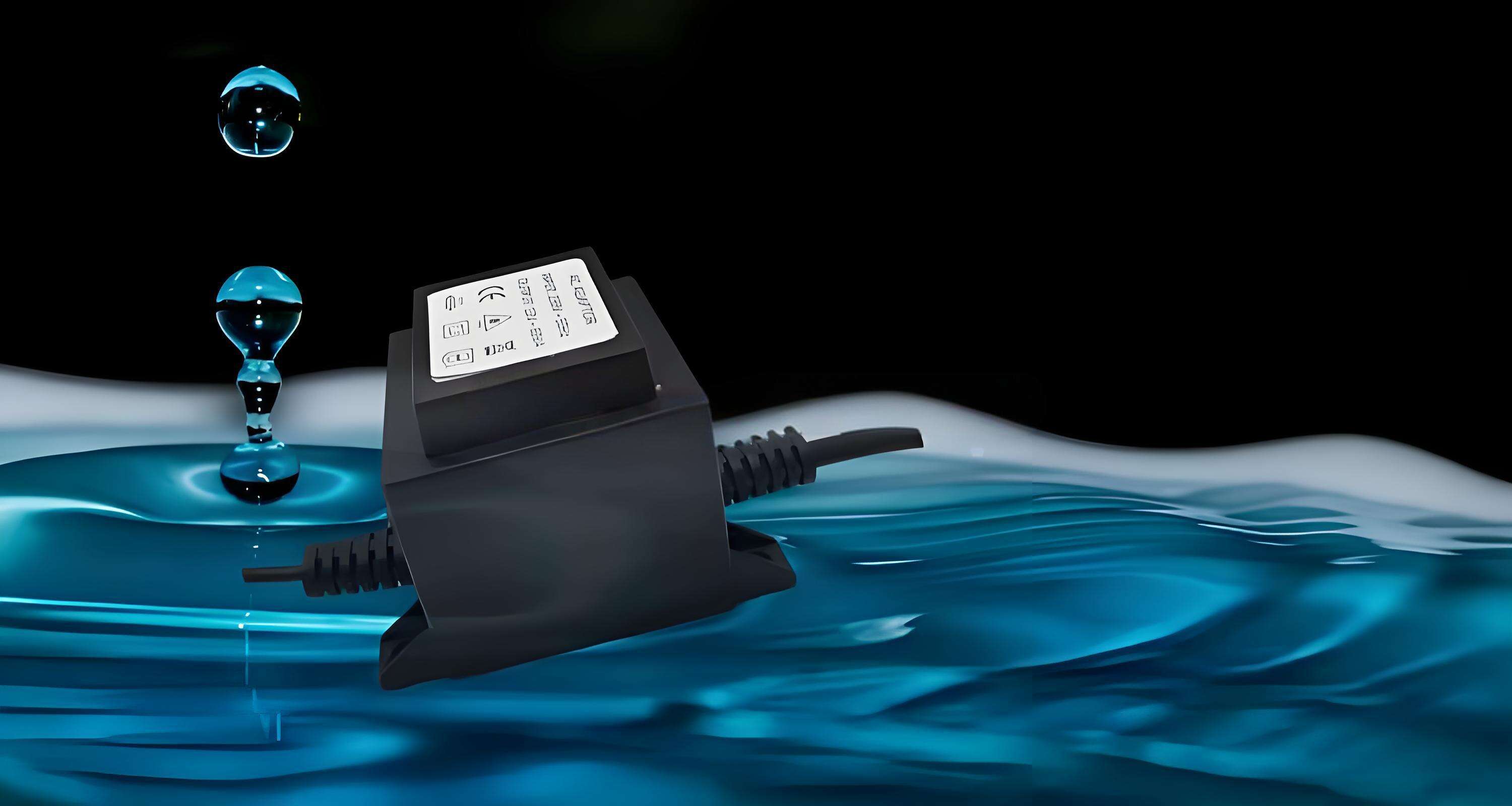

- Indoor-Outdoor Versatility: Robust square design with full waterproof protection for harsh environments
- CE-Certified Safety & Durability: High-grade materials, guards against voltage fluctuations; long-term reliability
- Hassle-Free Security Integration: Easy installation, maintenance-free, perfect for commercial/industrial security setups
- Overview
- Recommended Products
This professional-grade 220V to 18V transformer delivers reliable 50VA power output for access control systems and security devices. Engineered with advanced noise reduction technology, it operates ultra-quietly while maintaining stable performance at both 50Hz and 60Hz frequencies. The transformer features a robust square design with comprehensive waterproof protection, making it ideal for both indoor and outdoor installations. Perfect for powering door access controls, surveillance equipment, and other security hardware that requires 18V DC power. Its compact yet durable construction ensures long-term reliability even in challenging environments. CE certified and built with high-quality materials, this transformer provides consistent power delivery while protecting your security devices from voltage fluctuations. Easy to install and virtually maintenance-free, it's the ideal power solution for commercial and industrial security applications.
Waterproof transformer widely use in Landscape, outdoor engineering lighting, LED wall washer, LED underwater lamp,
LED underground lamp, etc.
Technical specifications:
* Input voltage: Customized
* Frequency: 50-60Hz
* Output voltage: Customized
* According to: EN61558
* Test/insulating voltage: 4kV AC RMS
* Construction class: II
* Insulation class: B (130°C)
* Ambient temp. (ta): 25°C
* Frequency: 50-60Hz
* Output voltage: Customized
* According to: EN61558
* Test/insulating voltage: 4kV AC RMS
* Construction class: II
* Insulation class: B (130°C)
* Ambient temp. (ta): 25°C

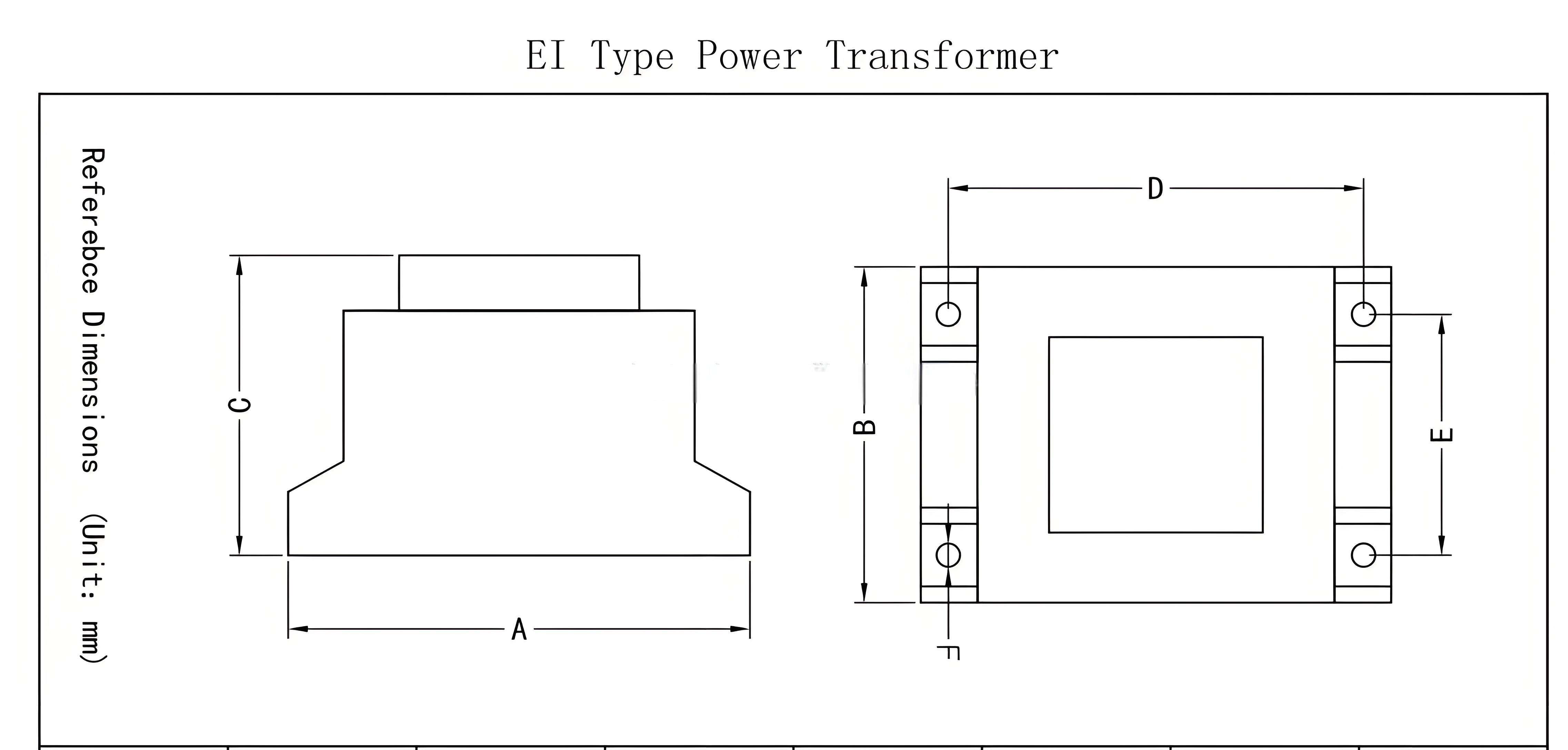

Model |
A |
B |
C |
D |
E |
F |
Power |
EKB-EI66 |
94.0 |
63.0 |
69.0 |
83.0 |
48.0 |
4.3 |
40-60W |
EKB-EI86 |
129.0 |
85.0 |
83.5 |
112.0 |
66.0 |
6.3 |
100-150W |
EKB-EI86 |
151.0 |
93.5 |
98.0 |
131.0 |
66.5 |
6.3 |
200-250W |
EKB-EI114 |
164.0 |
110.0 |
151.0 |
142.0 |
76.0 |
6.3 |
300-400W |
EKB-EI133 |
230.0 |
153.0 |
140.0 |
198.0 |
115.0 |
6.3 |
500-600W |
*The parameter is only for reference as typical data, customized are welcomed.
*We are able to provide you 20VA to 600VA squarewaterproof transformer.
*We are able to provide you 20VA to 600VA squarewaterproof transformer.
