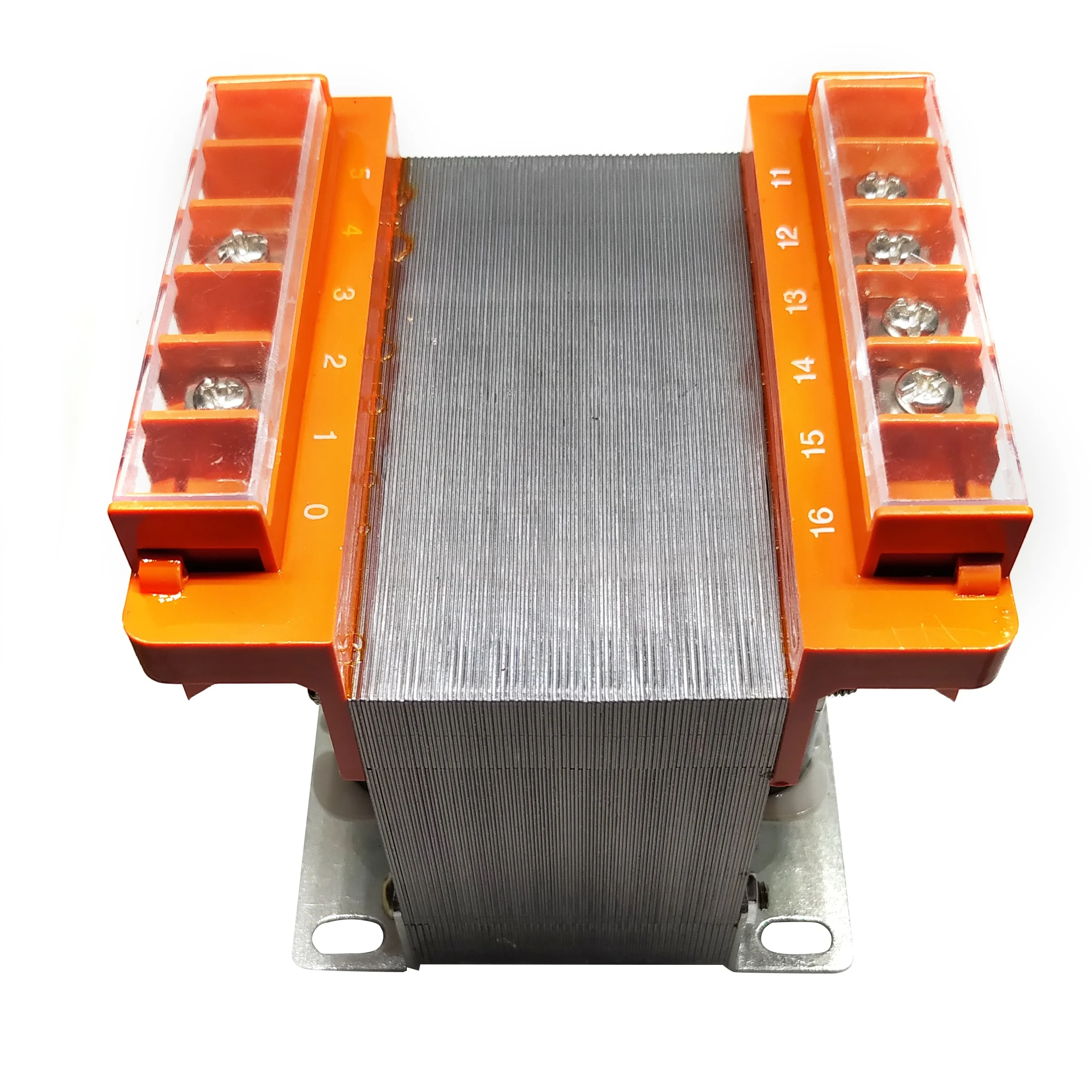

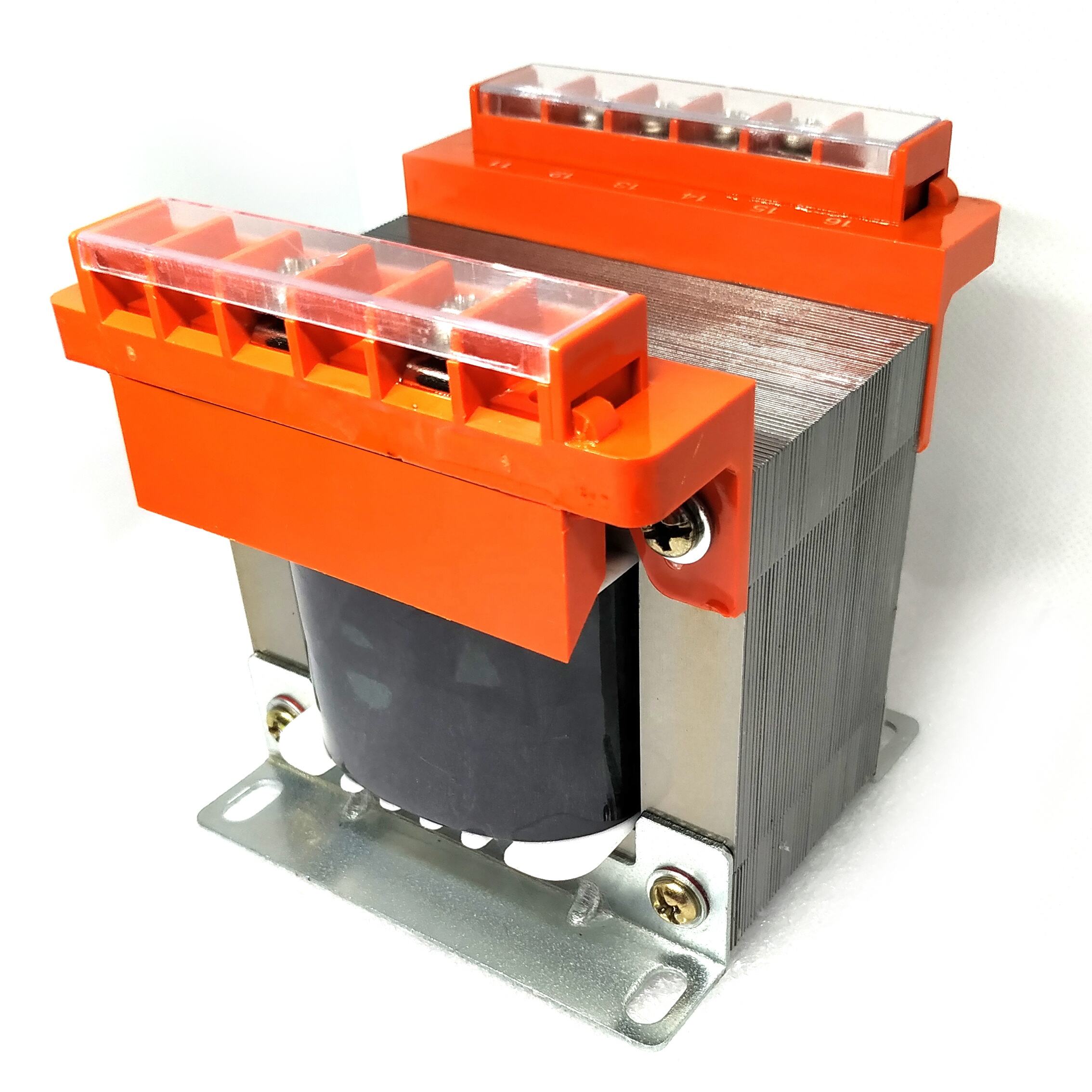

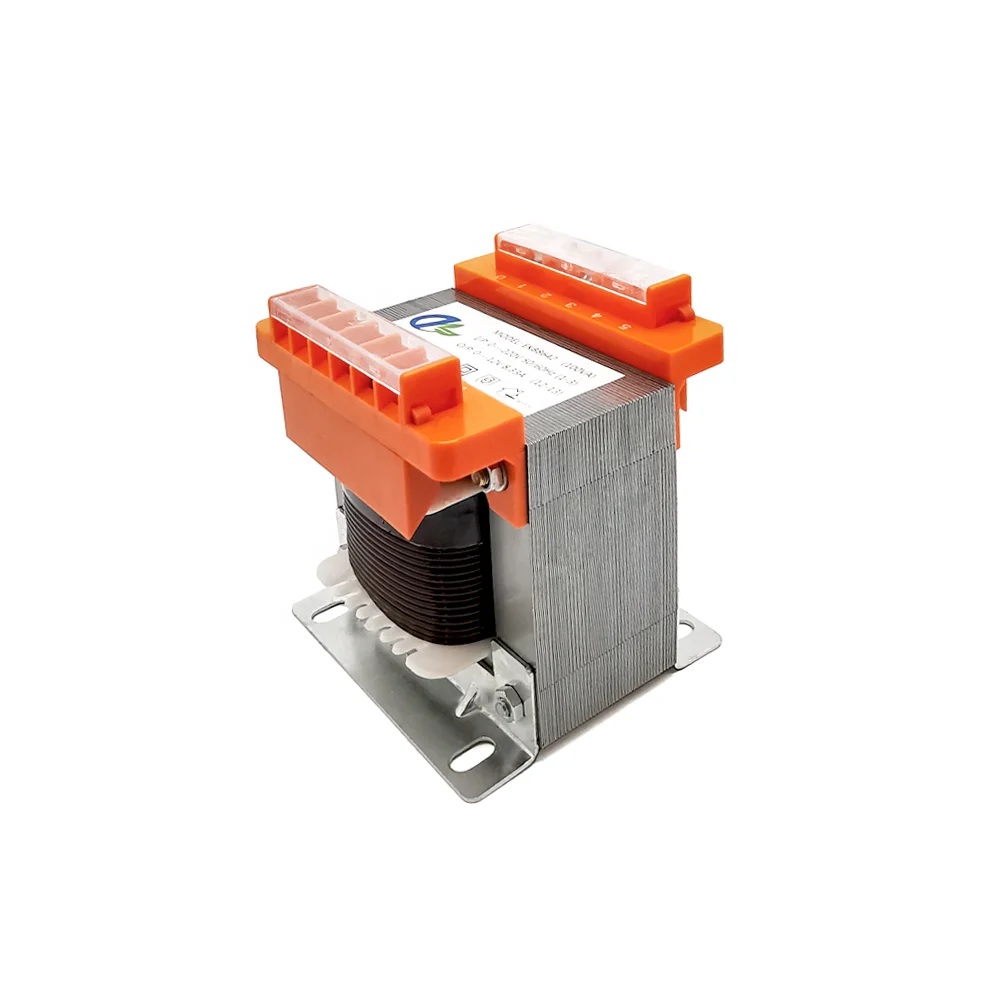

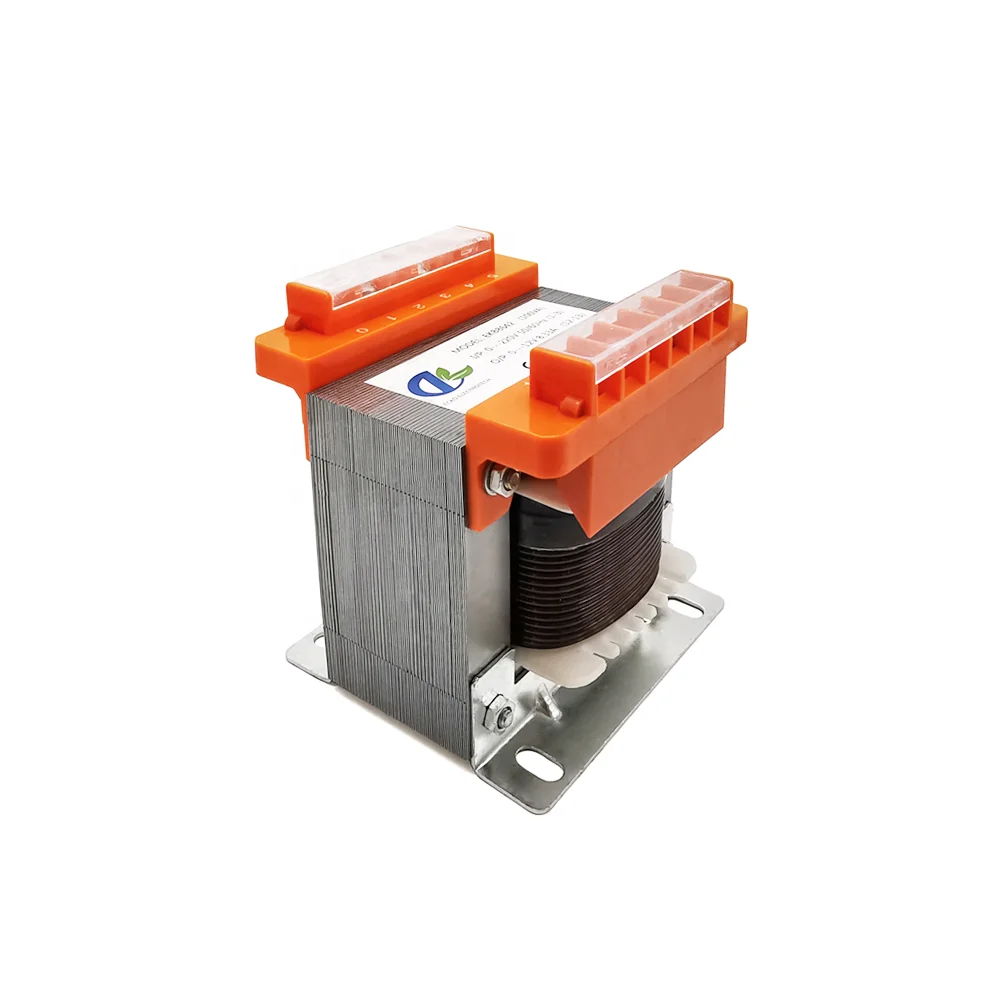

BK-100 Control Transformer 220V to 12V/24V/36V 100VA for Machine Tools and Equipment Isolated Safety Voltage Copper Wire Winding
- Industrial-Specific 100VA Power Conversion: 220V input to 12V/24V/36V selectable output, tailored for machine tools and industrial equipment.
- Full Copper Winding Efficiency: Premium copper wire ensures superior conductivity and minimal power loss during operation.
- Isolated Safety Design: Separates input and output circuits to protect equipment and operators from electrical hazards.
- Compact & Easy Installation: Space-saving build with user-friendly features, delivers stable voltage regulation for CNC and automation systems.
- Premium Amorphous Core Performance: Superior magnetic properties and minimal core losses vs. silicon steel alternatives, meeting strict industrial standards.
- Overview
- Recommended Products
The BK-100 Control Transformer is a reliable power solution designed specifically for machine tools and industrial equipment applications. This high-quality transformer efficiently converts 220V input to selectable output voltages of 12V, 24V, or 36V with a power rating of 100VA. Built with premium copper wire winding, it ensures excellent conductivity and minimal power loss during operation. The isolated design provides enhanced safety by separating input and output circuits, protecting both equipment and operators from electrical hazards. The transformer's robust construction and precise voltage regulation make it ideal for CNC machines, automation systems, and various industrial control applications. With its compact size and easy installation features, the BK-100 delivers stable, safe power conversion while meeting strict industrial standards for reliability and performance.
Ecko's control transformers range from 25VA through 5000VA in any class voltage combination designed and manufactured in
accordance with EN61558.
All designs are 50/60 Hz rated and are available in a 105⁰C, 130⁰C, 150⁰C or 180⁰C temperature class.
accordance with EN61558.
All designs are 50/60 Hz rated and are available in a 105⁰C, 130⁰C, 150⁰C or 180⁰C temperature class.
Product Name |
Single Phase EI Control BK Transformer |
Model No. |
EKB9645 |
Rated Input Voltage |
0-220V-380V (custom available) |
Rated Output Voltage |
0-12V 0-24V (custom available) |
Frequency |
50/60Hz |
Rated Power |
150VA (custom available) |
Dimension |
L105XW87XH108 MM |
Weight |
3.5 kgs |
Insulation Class |
Class B/Class F/Class E |
Ambient temperature |
Ta=25°C |
HI-POT test |
4000VAC |
Degree of protection |
IP00 |
Certificate |
CE-ROHS, CE-ISO,CE-LVD |
Standard |
EN61558, EN61000,IEC52321 |
Custom Made |
Yes |
Application |
Long-term continuous operation at nominal capacity, are widely used in machine tools and machinery in general electrical power source as a control, local lighting and power indication. |

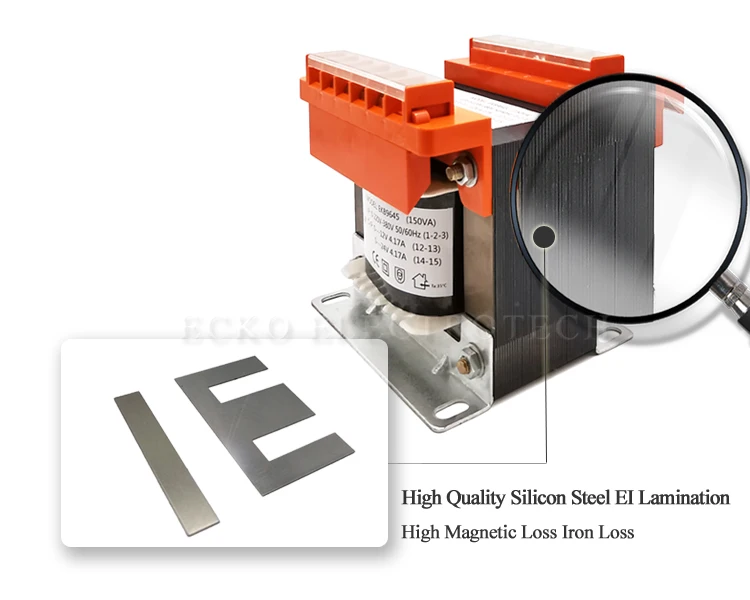

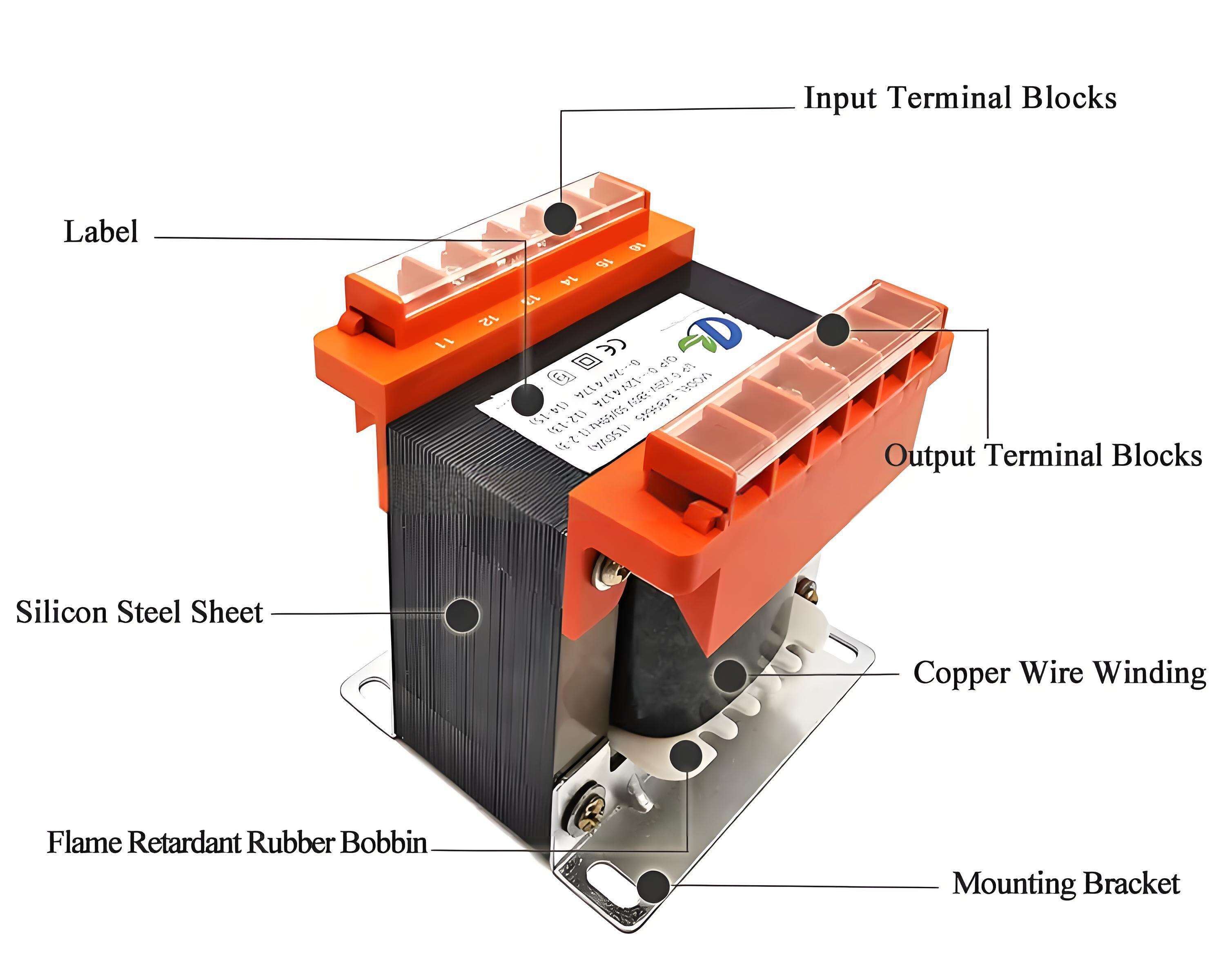

Grain Oriented Electrical EI Silicon Steel Lamination Sheet
Constructed with high quality silicon steel laminations that provide optimum performance and reliability. High saturation magnetic flux density, high efficiency, small excitation power, low loss, good temperature stability.

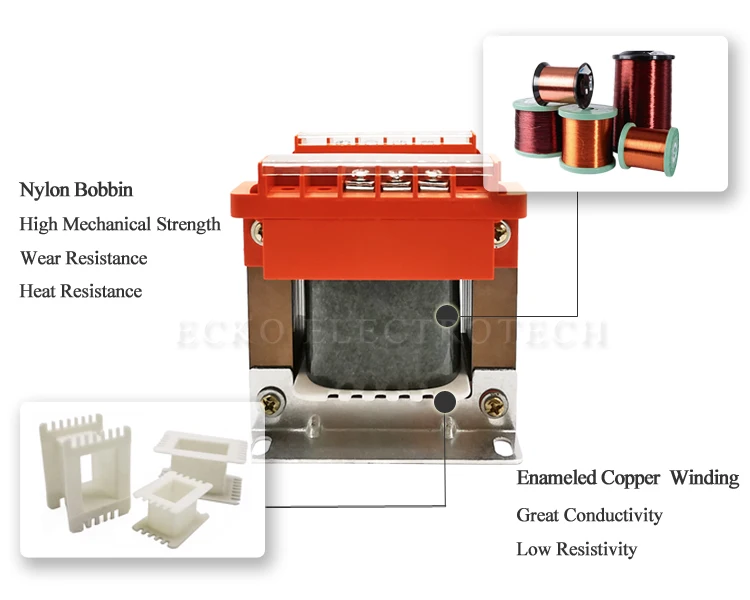

Flame retardant Nylon Coil Bobbin
Enameled Copper Wire Winding

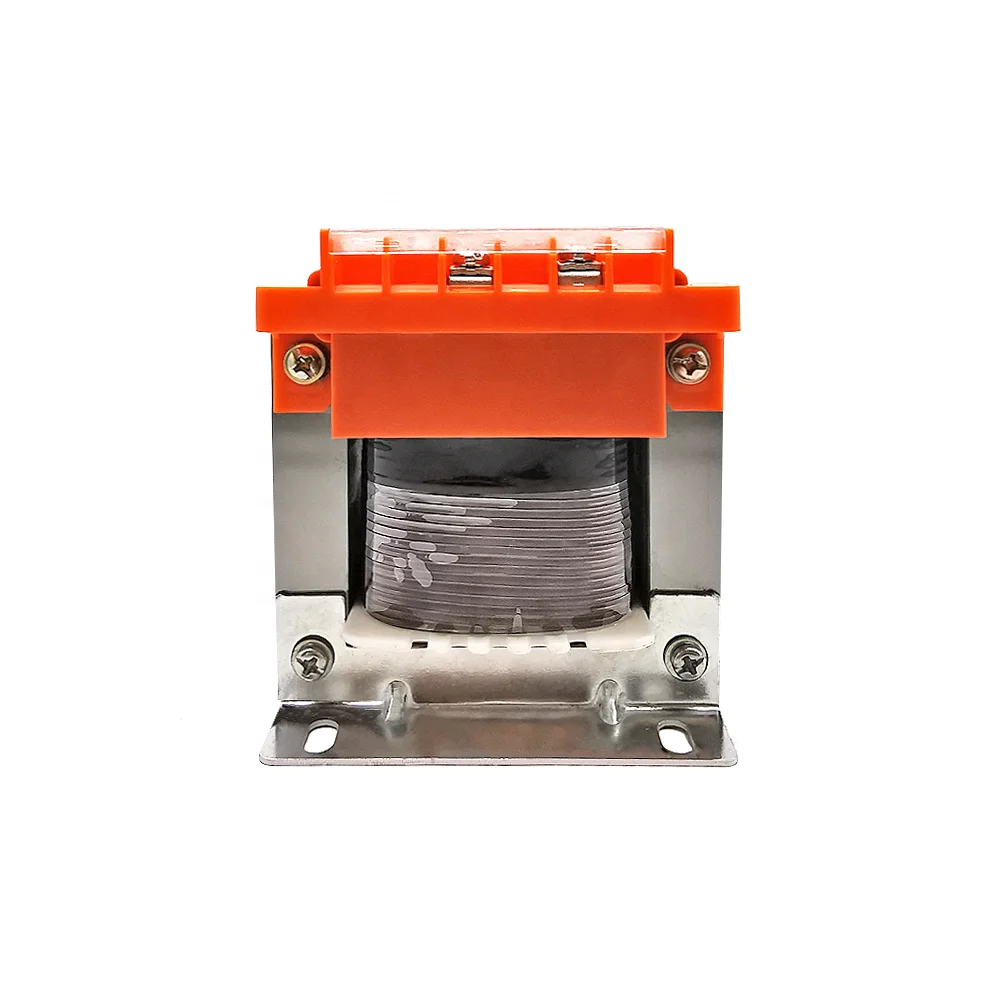

Solid Rolled Steel Mounting Brackets
Brackets vary in size to conform to the size of the transformer core.
Made of heavy steel and welded or bolted to the core,providing superior strength in a compact design.
