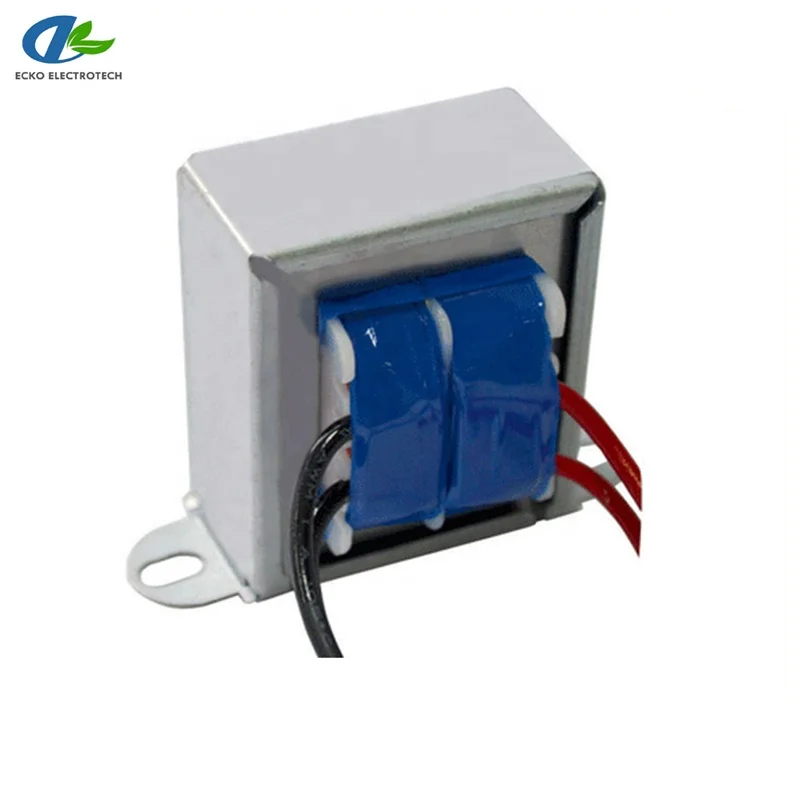

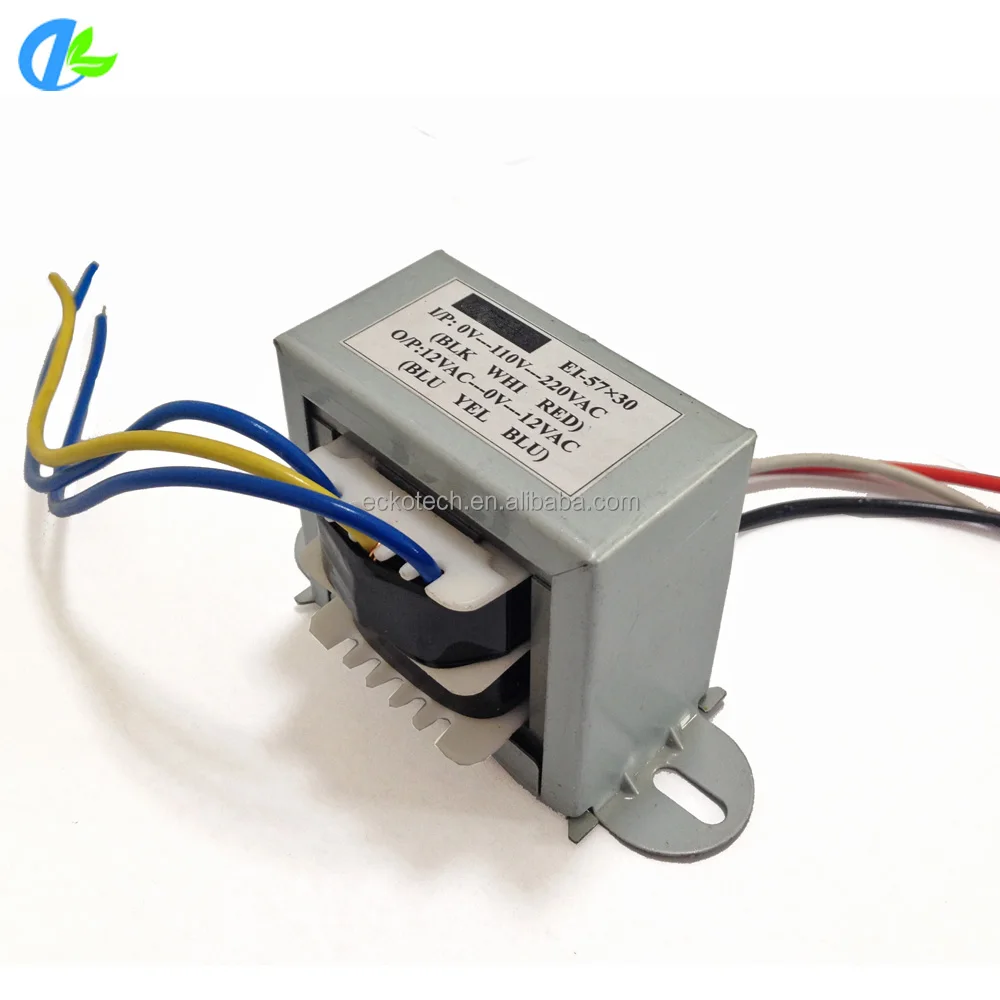

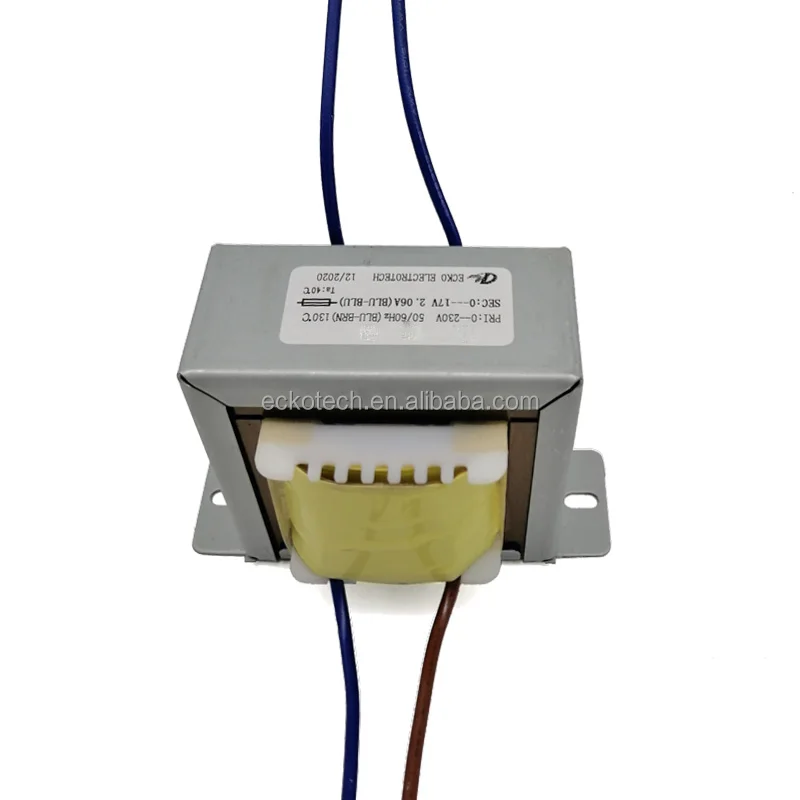

Ac Electric Transformer 220v 24v 6v 3a Small Voltage Transformer Step Down Step up Transformer

Ac Electric Transformer 220v 24v 6v 3a Small Voltage Transformer Step Down Step up Transformer

Dual Step-Up/Step-Down Functionality: Converts 220V/24V/6V with 3A output, perfect for diverse electronic and industrial power needs.
Compact High-Stability Design: Small form factor fits limited spaces while delivering consistent, reliable voltage transformation.
Integrated Safety Protection: Premium components guard against overheating and short circuits for secure long-term operation.
Broad Application Versatility: Ideal for electronics, industrial equipment, lighting systems, and international voltage adaptation.
Premium Core Performance: Amorphous material ensures superior magnetic properties and minimal core losses vs. silicon steel alternatives.

Overview
Recommended Products

This versatile AC electric transformer is designed to efficiently convert voltage levels, making it an ideal solution for various electronic applications. Capable of both step-up and step-down conversion between 220V, 24V, and 6V with a 3A current output, this compact transformer delivers reliable power transformation for your devices. Its small form factor makes it perfect for limited spaces while maintaining excellent performance and stability. Built with high-quality materials and protective features, this transformer ensures safe and consistent voltage conversion for electronics, industrial equipment, lighting systems, and other applications requiring precise power adjustment. The durable construction and professional-grade components guarantee long-lasting operation and protection against overheating and short circuits. Whether you need to power low-voltage devices or adapt international voltage standards, this transformer provides a dependable solution for your voltage conversion needs.

Ac Electric Transformer 220v 24v 6v 3a Small Voltage Transformer Step Down Step up Transformer factory

ECKO ei transformer according to EN61558. Suitable for installation in electronically equipment.
Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.
Short circuit and overload protected with thermal fuse on primary side. Up to 50% less weight than a similar conventional transformer.Low magnetisation currents and no-load losses.

Ac Electric Transformer 220v 24v 6v 3a Small Voltage Transformer Step Down Step up Transformer details

Ac Electric Transformer 220v 24v 6v 3a Small Voltage Transformer Step Down Step up Transformer supplier

Ac Electric Transformer 220v 24v 6v 3a Small Voltage Transformer Step Down Step up Transformer manufacture

Product Name	EI laminated Tube Power Transformer
Model No.	EI 66x28
Rated Input Voltage	0-220V(custom available)
Rated Output Voltage	12 0 12V (custom available)
Frequency	50/60Hz
Rated Power	30VA (custom available)
Dimension	L68XW54XH59 MM
Weight	0.93kgs
Insulation Class	Class B/Class F/Class E
Ambient temperature	Ta=25°C
HI-POT test	4000VAC
Degree of protection	IP00
Certificate	CE Rohs ISO
Standard	EN61558, EN61000,IEC52321
Custom Made	Yes
Raw Material	Full copper enameled wire, cold rolled grant oriented silicon steel lamination iron core, flame-retardant EI bobbin, high insulation tape, Iron mounting bracket
Features	High Quality, Small size, light weight, low noise, low no-load, low magnetic leakage, shielding, low temperature rise, high efficiency, low price, high performance
Application	1.Audio equipment , Vacuum tube amplifier , Celling Speaker, loudspeaker, Guitar , DVD player , Multimedia audio system , Broadcast system , Monitor security system, signal 2.Switching-mode power supply (SMPS) , Switching AC-DC adapter , Electronics power board , chargers, energy control , energy saving system 3.Medical equipment, dental chair, dental equipment, medical chair, lift chair, medical bed, hospital bed, medical lab equipment, patient monitoring equipment, instrument equipment, beauty salon spa equipment, Washing machine 4.Decorative lighting, Stage light, lighting control, LED , Traffic Light, Street Lighting 5. Home appliance, water dispenser,household blender,air-conditioner,mainframe computer, Garage door, Automatic door, Electric curtain

Model	Specification	Dimension(MM)									Power (W)
Model	Specification			A	B	C	D	E	I	J	Power (W)
EI 28	ei 2812	30	26	27	51	41	7	3	1W
		ei 2815	30	29	27	51	41	7	3	1.5W
		ei 2818	30	32	27	51	41	7	3	2W
EI 35	ei 3510	37	27.4	31	59	49	6.4	4	1W
		ei 3515	37	32.4	31	59	49	7	4	2.5W
		ei 3518	37	35.4	31	59	49	7	4	3W
EI 41	ei 4116	43	34	35	65.3	55	6.3	4	4.5W
		ei 4120	43	37.8	35	67	55	6.3	4	6W
		ei 4126	43	44	35	67	55	6.3	4	9W
EI 48	ei 4820	50	38.3	43	75	63	8	4	10W
	EI57	ei 4824	50	42.5	43	75	63	8	4	12W
		ei 4830	50	49	43	75	63	8	4	17W
		ei 4835	50	54	43	75	63	8	4	20W
EI 57	ei 5719	59	42.5	50	84	74	8	4	12W
		ei 5725	59	49	50	84	74	8	5	20W
		ei 5730	59	59	51	91	74	10	5	28W
		ei 5735	59	59	51	91	74	10	5	36W
EI 66	ei 6628	68	54	59	98	82	10	5	30W
		ei 6632	68	58	59	98	82	10	5	40W
	EI76	ei 6636	68	62	59.3	98	82	10	5	50W
		ei 6640	68	66	59.3	98	82	10	5	56W
		ei 6645	68	71	59.3	98	82	10	5	68W
EI 76	ei 7632	78	64	67	110	95	10	5	52W
	EI86	ei 7638	78	70	67	110	95	10	5	70W
		ei 7642	78	74	67	110	95	10	5	80W
		ei 7645	78	76	67	110	95	10	5	90W
EI 86	ei 8636	86	71	73	72	50	8	5	80W
	EI96	ei 8642	86	77	73	72	56	8	5	100W
		ei 8645	86	80	73	72	59	8	5	125W
		ei 8650	86	85	73	72	64	8	5	150W

DVD player, multimedia audio system,TV set, small charger, madical machine, beauty salon equipment,

instrument equipment,Stage lighting equipment, lighting control circuit, automatic equipment control circuit, mechanical control circuit,energy-saving equipment control circuit and other small power supply.
