Application:
Medical equipment, Automatic control equipment, home appliances, audio amplifier, CCTV security, broadcasting system，solar power, wind power, telecommunications,etc
Product Features:
Long life
Energy conserving
High Efficiency
Low Temperature Operation
No Radiation, no noise
High standard, high quality

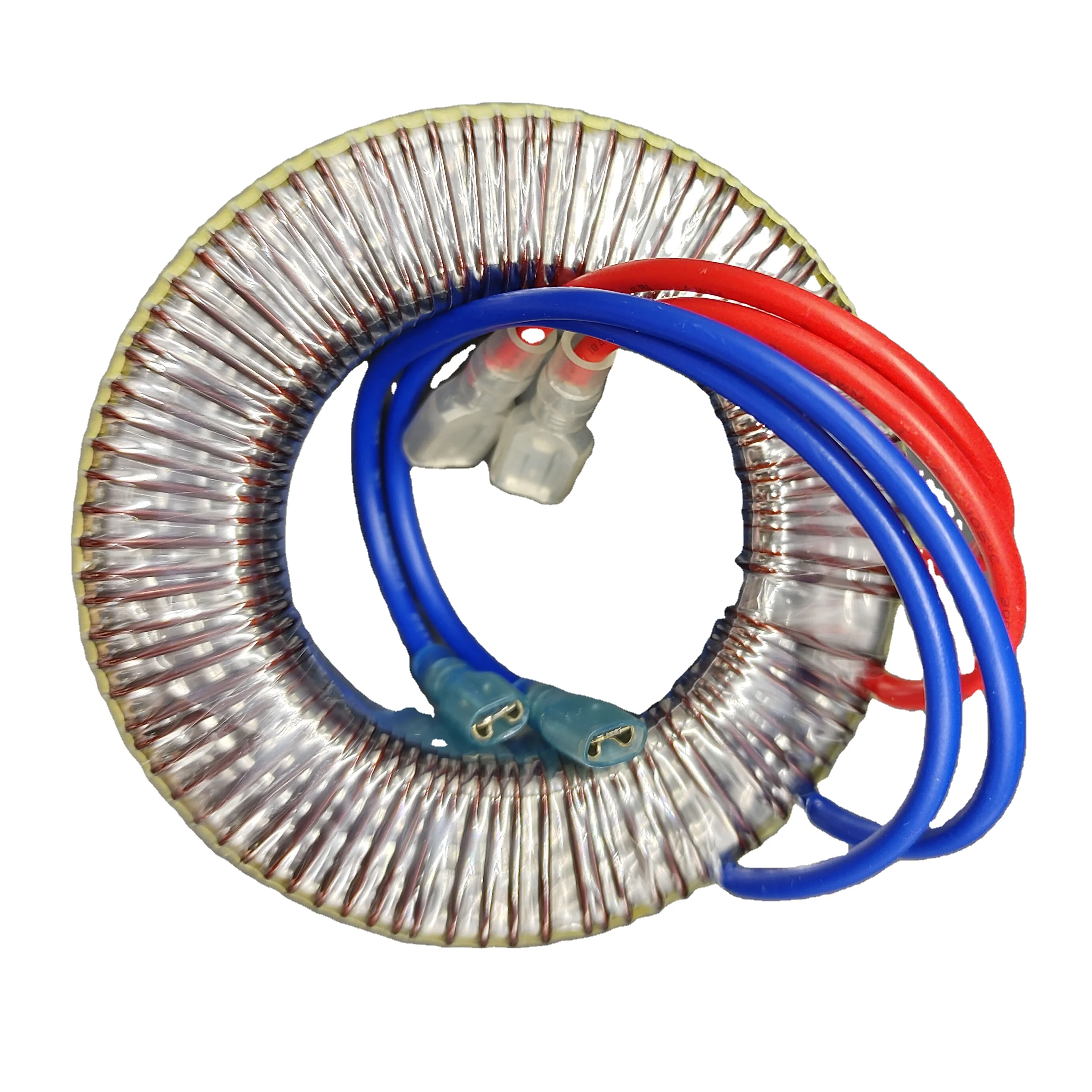

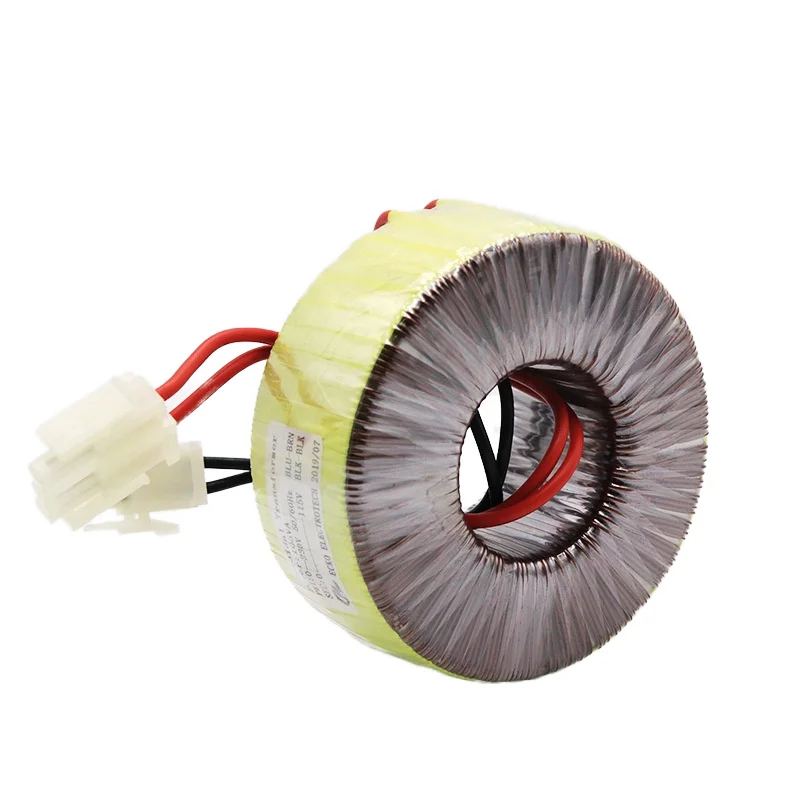

2200va 240v to 415v Step up Transformer Toroidal 220v to 380v Voltage Converter Inverter Transformer 2.2kva 440v 220v
- 2200VA Industrial Step-Up Conversion: Converts 220-240V to 380-415V, delivers reliable 2.2kVA power for industrial machinery and three-phase devices.
- Low-Noise Toroidal Core Efficiency: Quiet operation, minimal magnetic interference and low power loss, outperforming traditional transformer designs.
- Premium Copper Winding Durability: High-quality copper windings with overheating and overload protection for long-term reliable operation.
- Compact Space-Saving Design: Ideal for factories and workshops, powers 380V/415V equipment from standard single-phase mains supply.
- Superior Amorphous Core Performance: Excellent magnetic properties and ultra-low core losses vs. silicon steel cores, ensuring stable voltage output.
- Overview
- Recommended Products
This high-performance 2200VA toroidal transformer is designed to efficiently convert voltage from 220-240V to 380-415V, making it ideal for industrial and commercial applications. The robust step-up transformer delivers reliable 2.2kVA power output while maintaining excellent voltage stability and minimal power loss. Its toroidal core construction ensures quiet operation, low magnetic interference, and superior energy efficiency compared to traditional transformers. Perfect for powering 380V/415V industrial equipment, machinery, and three-phase devices from standard single-phase power sources. The compact design features high-quality copper windings, comprehensive protection against overheating and overload, and durable construction for long-term reliability. This versatile voltage converter is suitable for factories, workshops, and various industrial settings where higher voltage requirements need to be met from standard mains supply.
Product Introduction
Frequency |
50HZ/60HZ |
Rated Power |
20-25000VA |
Wire |
Copper |
Process |
Coil Winding |
Insulation Class |
Class B,Class F,Class E |
Certification |
CE,RoHs,ISO |
Temperature rise |
≤65°C |
Core material |
CRGO silicon steel core |
Customized made |
Yes |
Single-phase toroidal transformers, power range from 20VA to 5000VA. Designed and tested according to EN61558. Suitable forinstallation in electronically equipment.
Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.
Short circuit and overload protected with thermal fuse(or thermal switch) on primary side. Up to 50% less weight than a similar conventional transformer.
Short circuit and overload protected with thermal fuse(or thermal switch) on primary side. Up to 50% less weight than a similar conventional transformer.
Lower magnetisation currents and no-load losses.
High-end silicon steel core
Core insulation
Copper wire winding
Lead wire fitting
Finished product
Testing
Model
|
Power (VA) |
Dimension(MM) |
Weight(KG)
|
||
OD |
Height |
||||
EKT020 |
20 |
63 |
28 |
0.3 |
|
EKT050 |
50 |
72 |
40 |
0.6 |
|
EKT080 |
80 |
78 |
47 |
0.9 |
|
EKT100 |
100 |
92 |
48 |
1.1 |
|
EKT120 |
120 |
89 |
52 |
1.4 |
|
EKT160 |
200 |
99 |
52 |
1.8 |
|
EKT200 |
200 |
108 |
52 |
2.1 |
|
EKT250 |
250 |
110 |
66 |
2.3 |
|
EKT300 |
300 |
112 |
66 |
2.7 |
|
EKT400 |
400 |
130 |
70 |
3.8 |
|
EKT500 |
500 |
140 |
75 |
4.7 |
|
EKT600 |
600 |
145 |
78 |
5.5 |
|
EKT800 |
800 |
160 |
80 |
7.2 |
|
EKT1000 |
1000 |
170 |
90 |
9 |
|
EKT2000 |
2000 |
205 |
95 |
13.5 |
|
EKT3000 |
3000 |
220 |
120 |
18.5 |
|
EKT4000 |
4000 |
260 |
125 |
24 |
|
EKT4500 |
4500 |
285 |
130 |
25.5 |
|
EKT5000 |
5000 |
295 |
138 |
28.5 |
|
EKT6000 |
6000 |
300 |
145 |
34 |
|
