5000w Step up and Down Transformer

This versatile 5000W step up and down transformer is the ideal solution for safely connecting your electrical devices across different voltage systems. Designed to efficiently convert between 110V and 220V power supplies, it ensures your valuable equipment operates at the correct voltage anywhere in the world. With a robust 5000-watt capacity, it can handle multiple devices simultaneously, from household appliances to industrial equipment. The transformer features built-in surge protection and thermal safeguards to prevent overheating and electrical damage. Its durable metal housing provides excellent heat dissipation and longevity, while clear voltage indicators help prevent connection errors. Perfect for international travelers, businesses operating globally, or anyone needing reliable voltage conversion for imported electronics. This transformer combines safety, performance, and convenience in one professional-grade unit.

Overview
Recommended Products

Product Description

Product Name	EI transformer
Material	iron core and copper wire
Function	Voltage conversion
Package	Cartons

5000w Step up and Down Transformer details

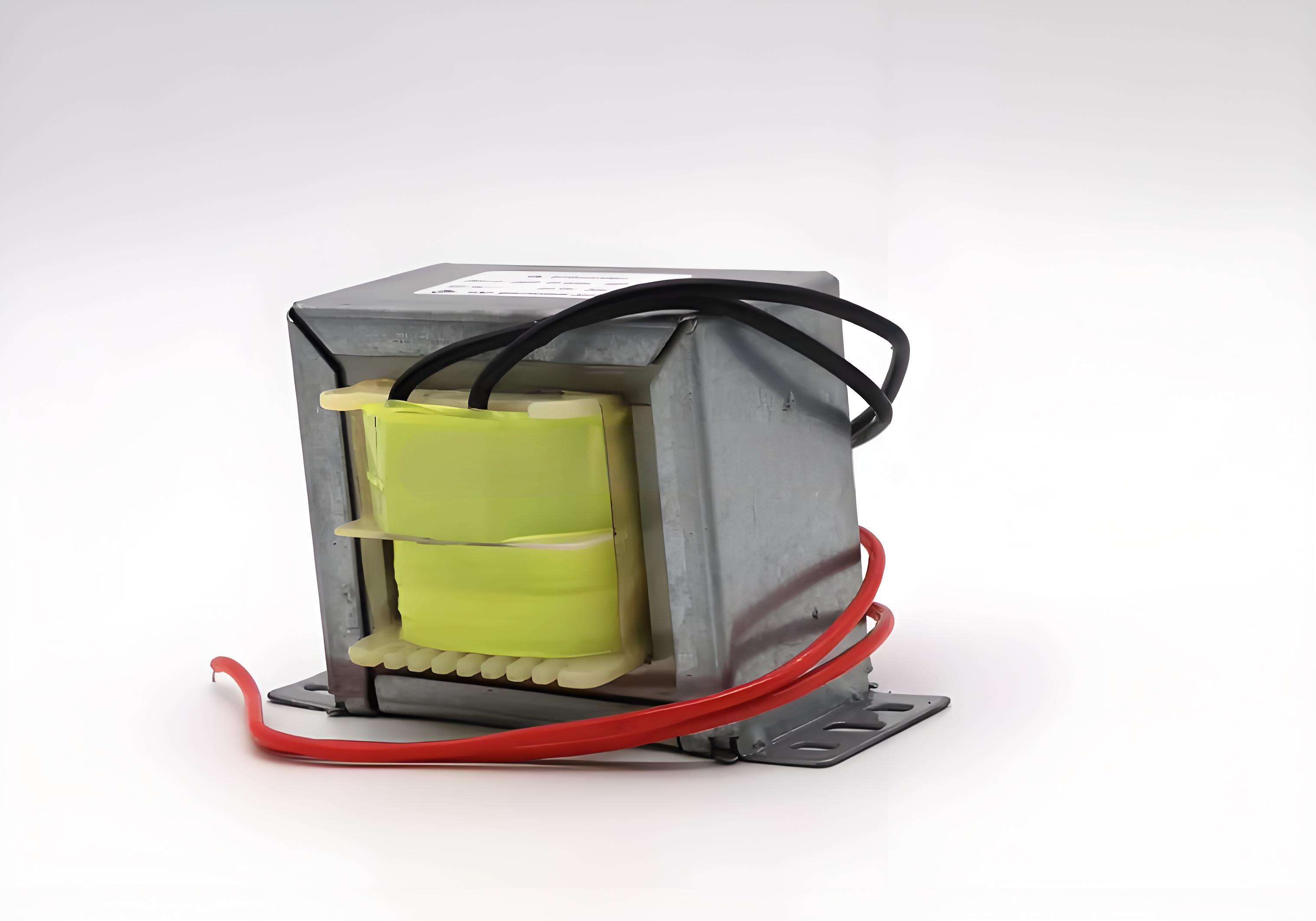

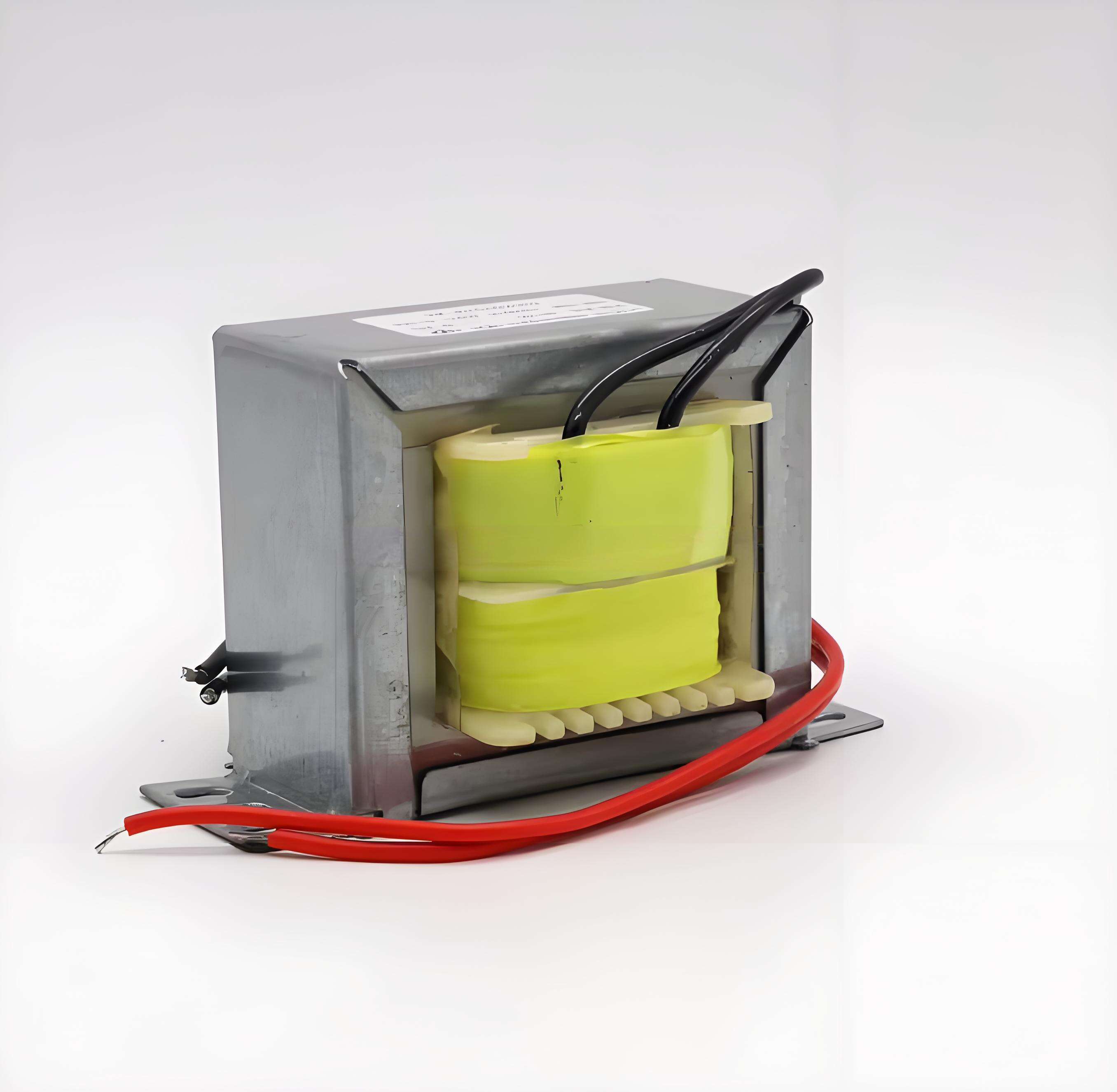

EI transformer:

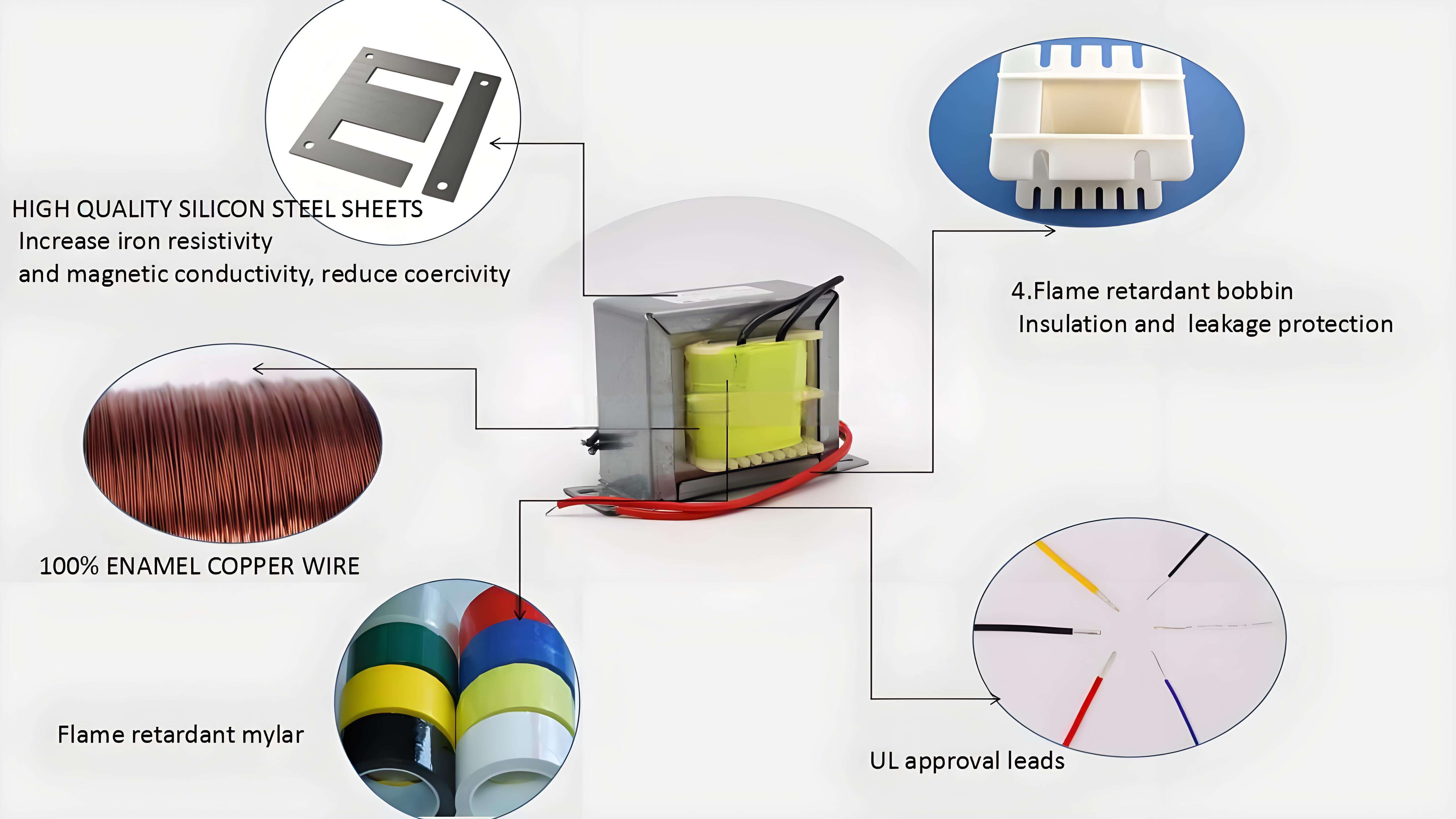

EI transformer which is widely used, mature in technology and in domestic. EI transformer uses high magnetic flux and low loss
silicon steel sheet core for transmitting signal voltage and signal power, and also achieves impedance matching between circuits,
and has isolation effect on direct current.

Details Images

Product Usage

Applications:

DVD player, multimedia audio system and TV set;

Small charger, mahjong machine, beauty salon equipment, instrument equipment;

Stage lighting equipment, lighting control circuit, automatic equipment control circuit, mechanical control circuit,
energy-saving equipment control circuit and other small power supply.

Technical specifications:

Frequency: 50-60HzInput voltage: AC100V/110/115V/120V/220V/230V/240V/380V+-10%

Output voltage: AC12/24V+-2%

Power: Ranging From 1VA to
100VA

According to: EN61558

HI-POT test: 3750VAC RMSInsulation Class: B(130°C)Ambient

Temp.(ta)：40°C

Protection：IP00

*The parameter is only for reference as typical data, customized are welcomed.

Model	Specification	A	B	C	D	E	I	J	Power
EK-EI28	EI-28X12	30	41	27	51	26	7	3	1.0W
	EI-28X15	30	41	27	51	28.6	7	3	1.5W
	EI-28X18	30	41	27	51	31.5	7	3	2.0W
EK-EI35	EI-35X10	37	49	31	59	27.4	6.4	4	1.0W
	EI-35X15	37	49	31	59	31.4	7	4	2.0W
EK-EI41	EI-41X20	43	55	35	65.3	37.8	6.3	4	6.0W
	EI-41X26	50	55	35	67	45.7	6.3	4	10.0W
EK-EI48	EI-48X20	50	63	43	75	38.3	8	4	10.0W
	EI-48X30	59	63	43	75	50	8	4	18.0W
EK-EI57	EI-57X25	59	74	50	84	48	7.3	4	20.0W
	EI-57X30	59	76	51	91	50.8	10	6	28.0W
	EI-57X35	68	76	51	91	56.8	10	4	36.0W
EK-EI66	EI-66X30	68	84	59	98	56.6	10	4	36.0W
	EI-66X35	68	84	59	98	59.8	10	4	50.0W
	EI-66X44	68	84	59.3	108	68.7	12	5	70.0W
EK-EI76	EI-76X32	78	95	67	108	64	8	4	52.0W
	EI-76X38	78	95	67	108	65.6	9	5	70.0W
	EI-76X45	78	93	67	106	75.2	9	5	90.0W
