12V 300VA Waterproof Encapsulated Toroidal Power Transformer 110V to 220V Rainproof Frequency 50Hz and 60Hz

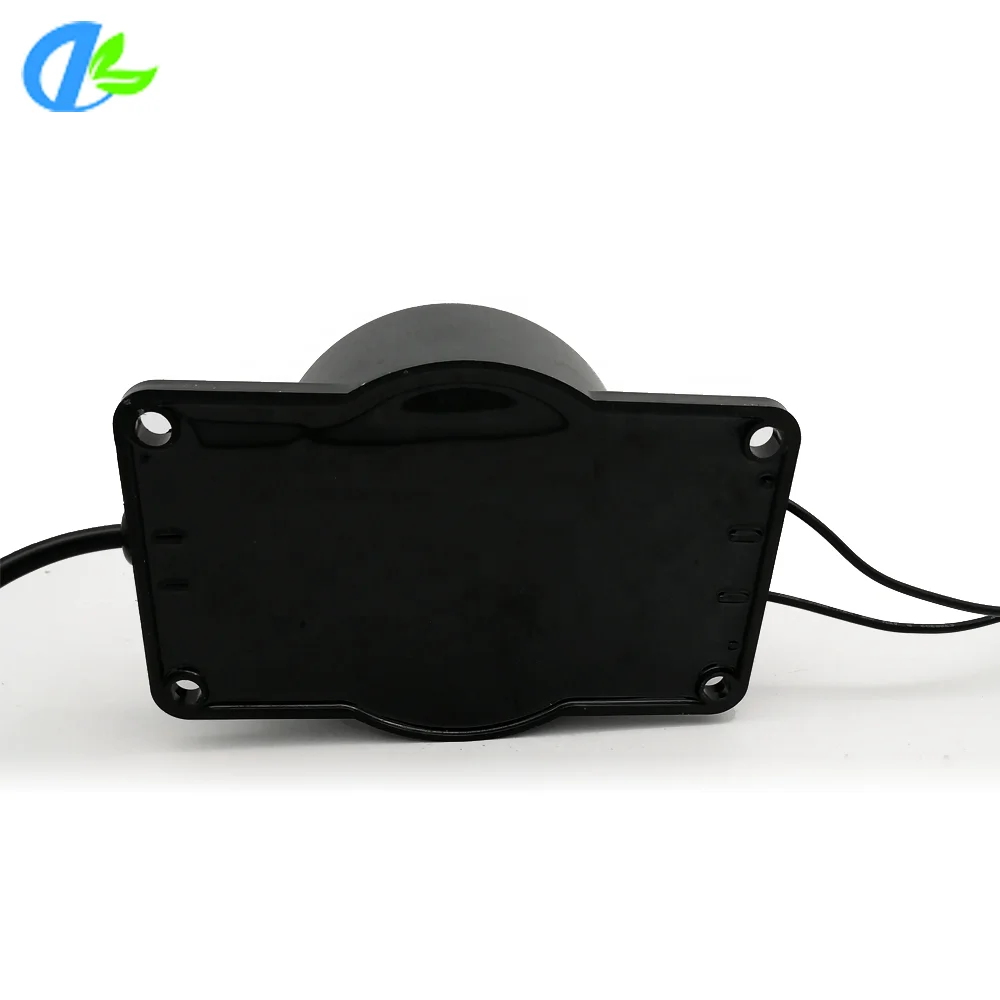

12V 300VA Waterproof Encapsulated Toroidal Power Transformer 110V to 220V Rainproof Frequency 50Hz and 60Hz

This professional-grade 300VA toroidal power transformer offers reliable voltage conversion between 110V and 220V, making it ideal for international power applications. Featuring a fully encapsulated, waterproof design, it provides excellent protection against moisture and rain, ensuring safe operation in outdoor or humid environments. The transformer operates efficiently at both 50Hz and 60Hz frequencies, allowing seamless use across different power systems worldwide. With a 12V output and robust construction, this transformer is perfect for industrial equipment, outdoor lighting systems, security installations, and other applications requiring stable power in challenging conditions. The toroidal core design minimizes electromagnetic interference while delivering superior performance and energy efficiency. Built to last with high-quality materials, this transformer combines durability with consistent, reliable power conversion.

Overview
Recommended Products

12V 300VA Waterproof Encapsulated Toroidal Power Transformer 110V to 220V Rainproof Frequency 50Hz and 60Hz supplier

Product Usage

Waterproof transformer suitable for plug lawn laser light, Christmas tree light string, LED lighting, LED light string, Copper string lights, Low-pressure
pumps, Motor toys, LED light-emitting module, Underwater system, Fountains, Swimming pools , Gardening...

Small appliances:

electronicrefrigerator, electric fan, mosquito lamp, air purifiers, humidifiers, meat grinder, oven etc.

Protection Level:

Working Status light: LED status light
Waterproof grade: IP65/IP67/IP68
Epoxy resin potting: Heat conduction resin potting
Protection device: Temperature protection

Waterproof transformer is made of imported high magnetic flux low-loss silicon steel sheet with double-layer insulation and
high-strength lacquer wrap, which has excellent electrical characteristics.

Advantage:

Short-circuit protection

Overload protection
Temperature protection

12V 300VA Waterproof Encapsulated Toroidal Power Transformer 110V to 220V Rainproof Frequency 50Hz and 60Hz manufacture

One cable in, 4 cable out

Technical specifications:

* Input voltage: Customized
* Frequency: 50-60Hz
* Output voltage: Customized
* According to: EN61558
* Test/insulating voltage: 4kV AC RMS
* Construction class: II
* Insulation class: B (130°C)
* Ambient temp. (ta): 25°C

12V 300VA Waterproof Encapsulated Toroidal Power Transformer 110V to 220V Rainproof Frequency 50Hz and 60Hz factory

_Model	Dimension(mm)								Power (VA/W)
_Model		A	B	C	D	E	F	G	Power (VA/W)
EKE50	124	60	90	110	175	195	8	50W-150W
EKE150	124	60	90	110	175	195	8	150W-300W
EKE300	138	69	90	110	190	210	10	300W-600W
EKE400	150	81	114	135	210	230	10	400W-600W
EKE600	150	81	114	135	210	230	10	300W-600W
EKE1000	185	96	120	140	237	256	10	600W-1000W

*The parameter is only for reference as typical data, customized are welcomed.
*We are able to provide you 20VA to 25KVA toroidal transformer.
