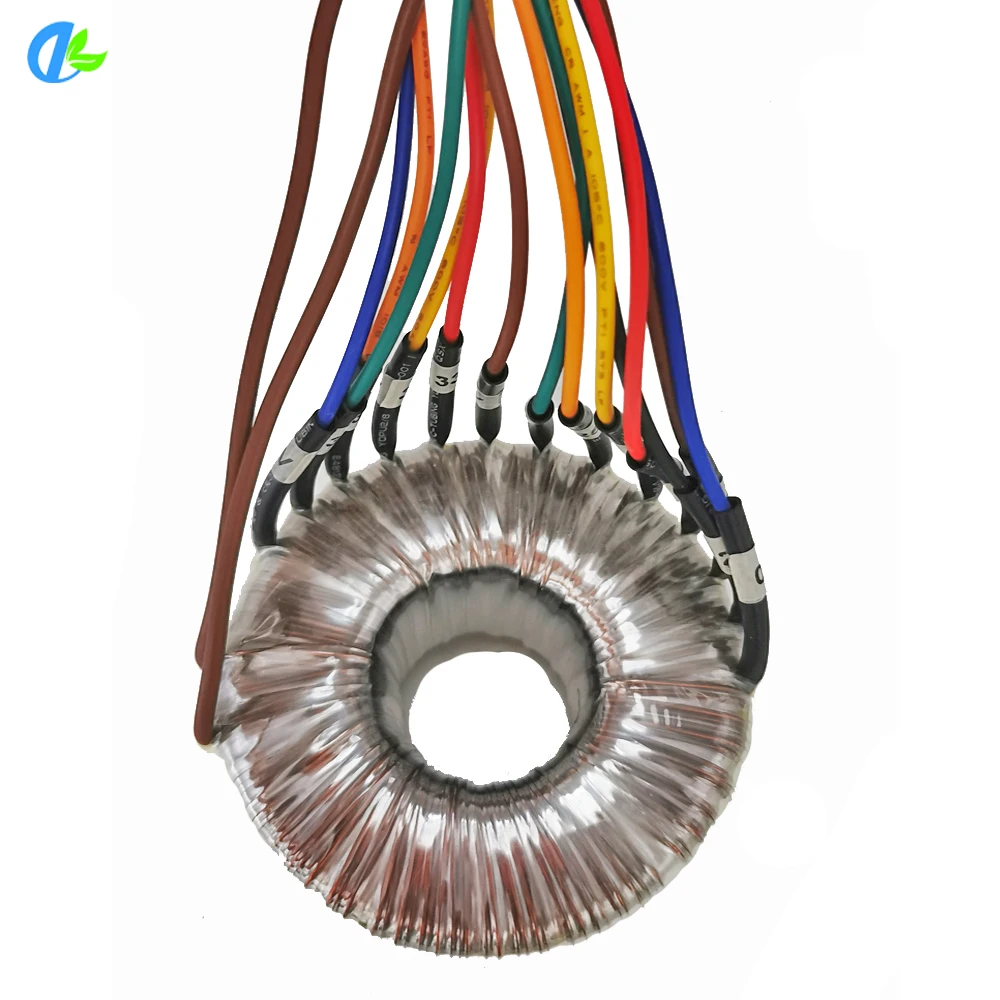

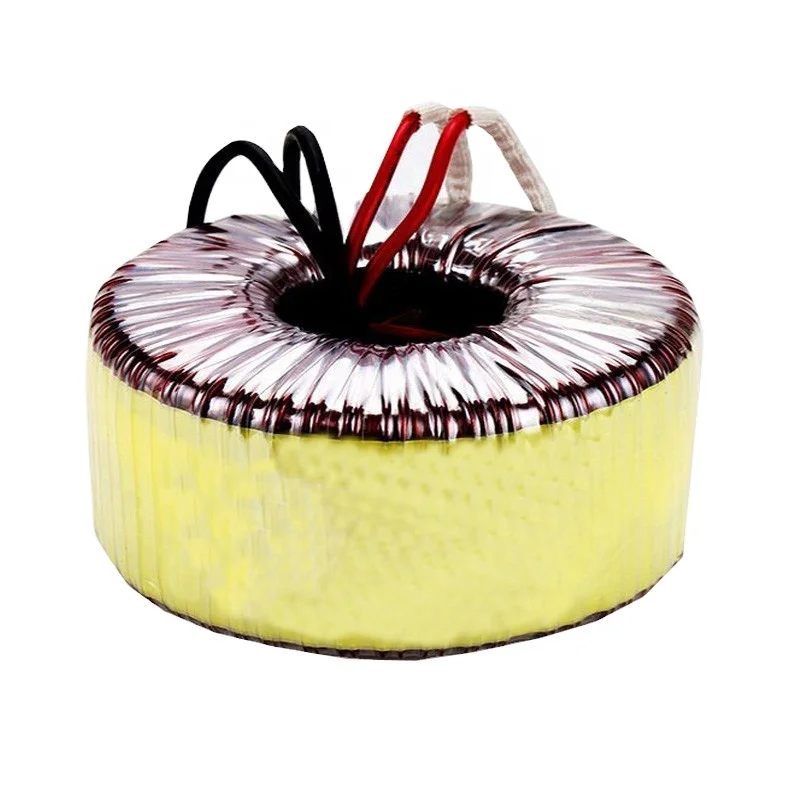

This versatile centre tapped toroidal transformer delivers reliable 120VA power with multiple output options to suit your needs. The dual secondary windings provide 12-0-12V at 5A or 6-0-6V at 10A, making it ideal for audio equipment, low voltage lighting, and various electronic applications. The transformer accepts multiple input voltages including 380V, 36V, 240V, 230V and 120V, offering excellent flexibility for international use. Built with high-grade silicon steel core and heavy-gauge copper windings, this transformer ensures minimal noise, low magnetic interference, and superior heat dissipation. Its compact toroidal design saves space while maintaining high efficiency and voltage regulation. Perfect for both DIY projects and professional installations where stable, clean power is essential. CE certified and built to last with quality insulation materials.
Rated Power (VA) |
Voltage Regulation (%) |
Efficiency (%) |
Dimension(mm) |
Weight (Kg) |
||
Height(C) |
Diameter(A) |
|||||
30 |
16 |
83 |
30 |
80 |
0.60 |
|
100 |
11 |
88 |
42 |
100 |
1.30 |
|
150 |
7.30 |
90 |
45 |
115 |
1.85 |
|
200 |
6.2 |
91 |
53 |
123 |
2.30 |
|
250 |
5.60 |
92 |
53 |
128 |
2.60 |
|
300 |
5.30 |
93 |
55 |
135 |
3.00 |
|
400 |
4.60 |
94 |
60 |
140 |
3.80 |
|
500 |
4.30 |
95 |
66 |
146 |
4.50 |
|
800 |
4.0 |
95 |
85 |
160 |
7.00 |
|
1000 |
3.80 |
96 |
90 |
165 |
8.50 |
|
1200 |
3.30 |
96 |
95 |
168 |
9.00 |
|
1500 |
3.0 |
96 |
100 |
173 |
9.50 |
|
2000 |
2.90 |
96 |
110 |
183 |
13.00 |
|
4000 |
2.2 |
97 |
135 |
245 |
23.00 |
|
5000 |
2.1 |
98 |
145 |
270 |
28.00 |
|
