High reliability
High Efficiency

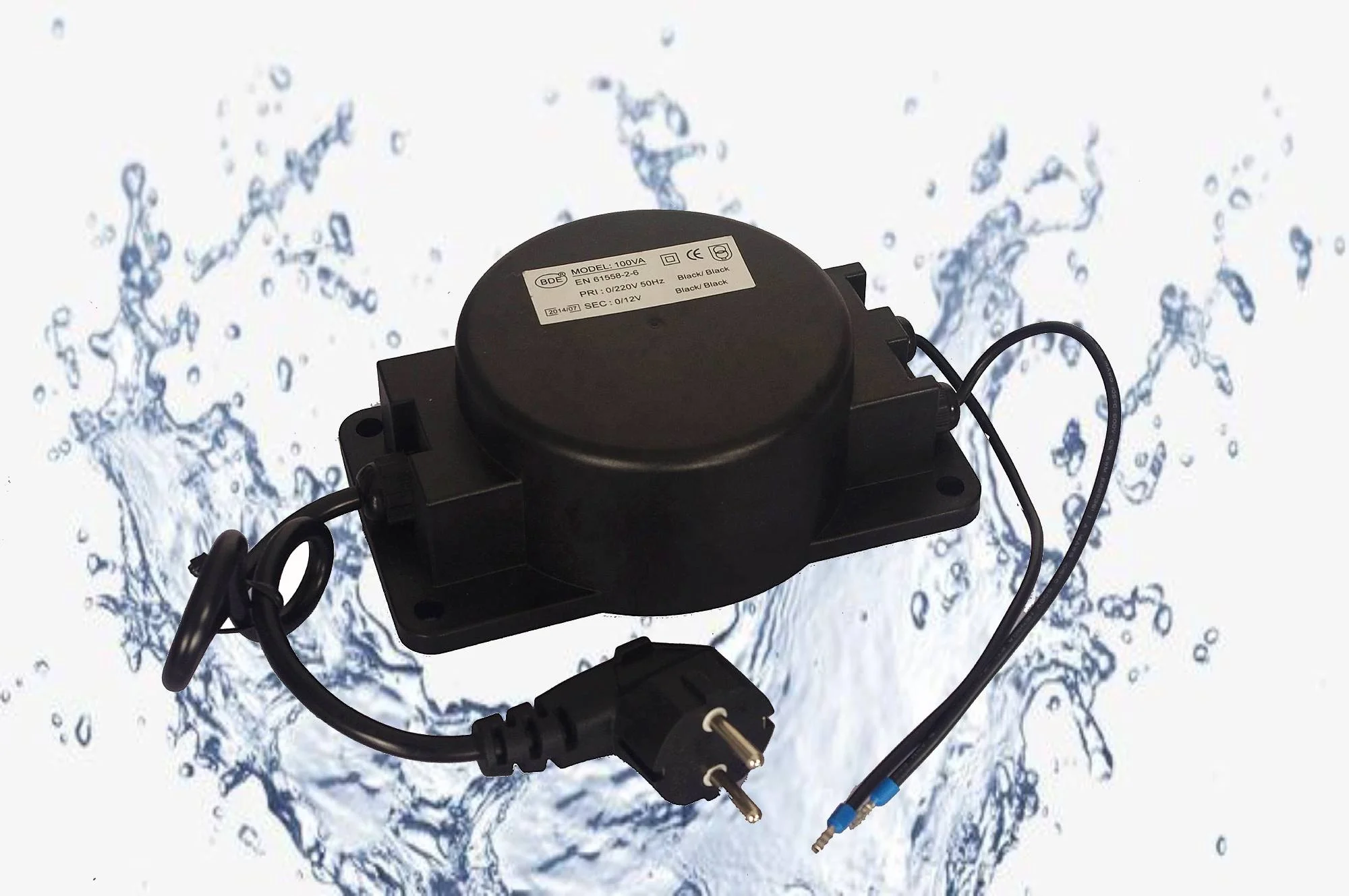

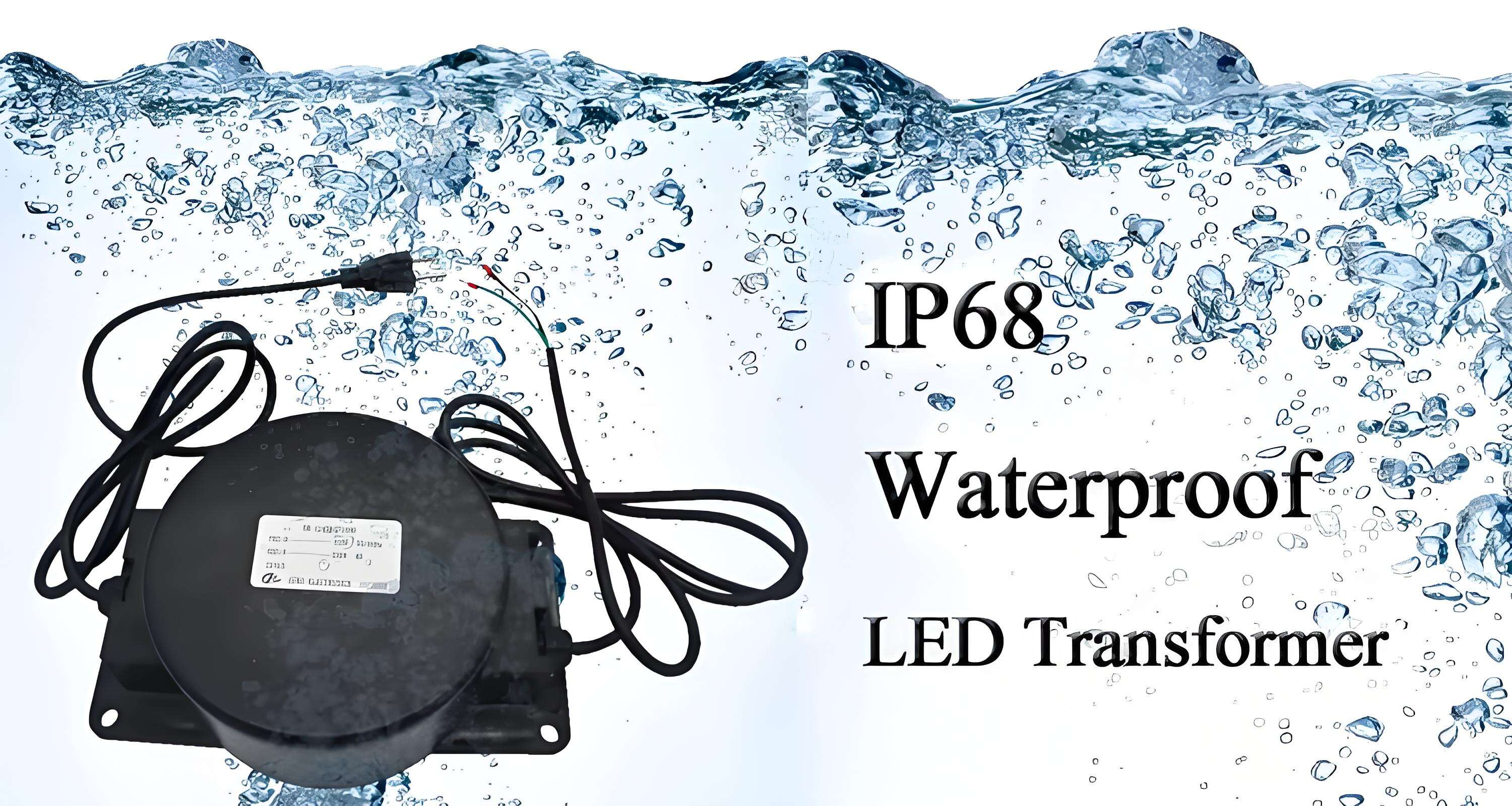

This high-quality safety transformer is designed to convert standard household voltage (110V-240V AC) to low voltage outputs of 12V, 24V, or 36V DC, making it ideal for powering halogen lamps and pool lighting systems. Built with durability in mind, its IP67-rated waterproof enclosure ensures reliable performance even in wet environments, while the integrated safety fuse provides essential protection against electrical faults. Perfect for both indoor and outdoor applications, this transformer delivers stable power output for underwater lights, garden lighting, and landscape illumination. The versatile input voltage range makes it suitable for use worldwide, while its compact design allows for easy installation and mounting. UL certified components and robust construction guarantee long-term reliability and peace of mind for your low-voltage lighting needs.
1.Weatherproof protection from water in all direction. |
2.Approved safe with IP68 rating for outdoor use. |
3.Fully water proof fuse designed to eliminate the possibility of an electrics shock. |
4. Included is a special safety fuse which eliminates the possibility of electrocution. |
5. Low Voltage Outdoor Safe, all AC rated not DC. |
6.· 1 Year warranty. |
7. Self resetting over load protection & safety fuse. |
8.· Customized models available. |
Product Name: |

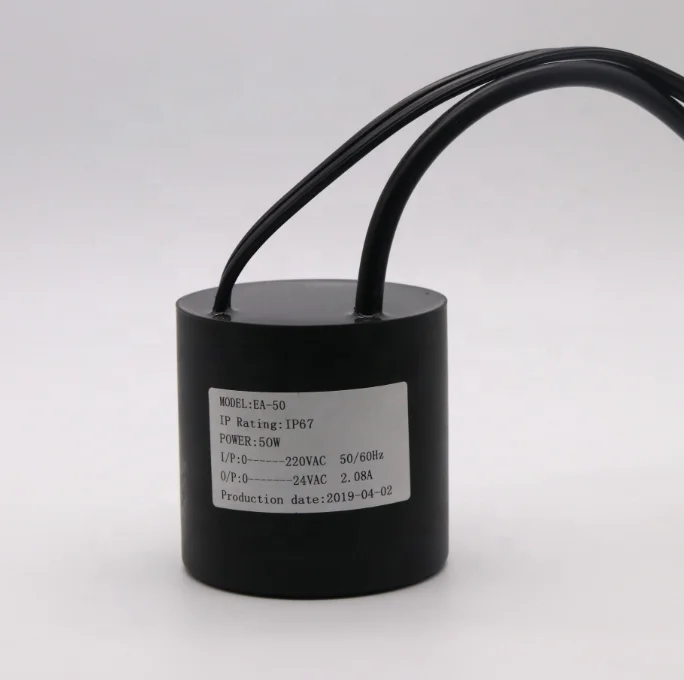

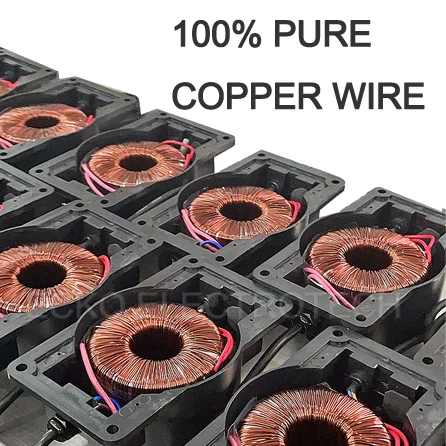

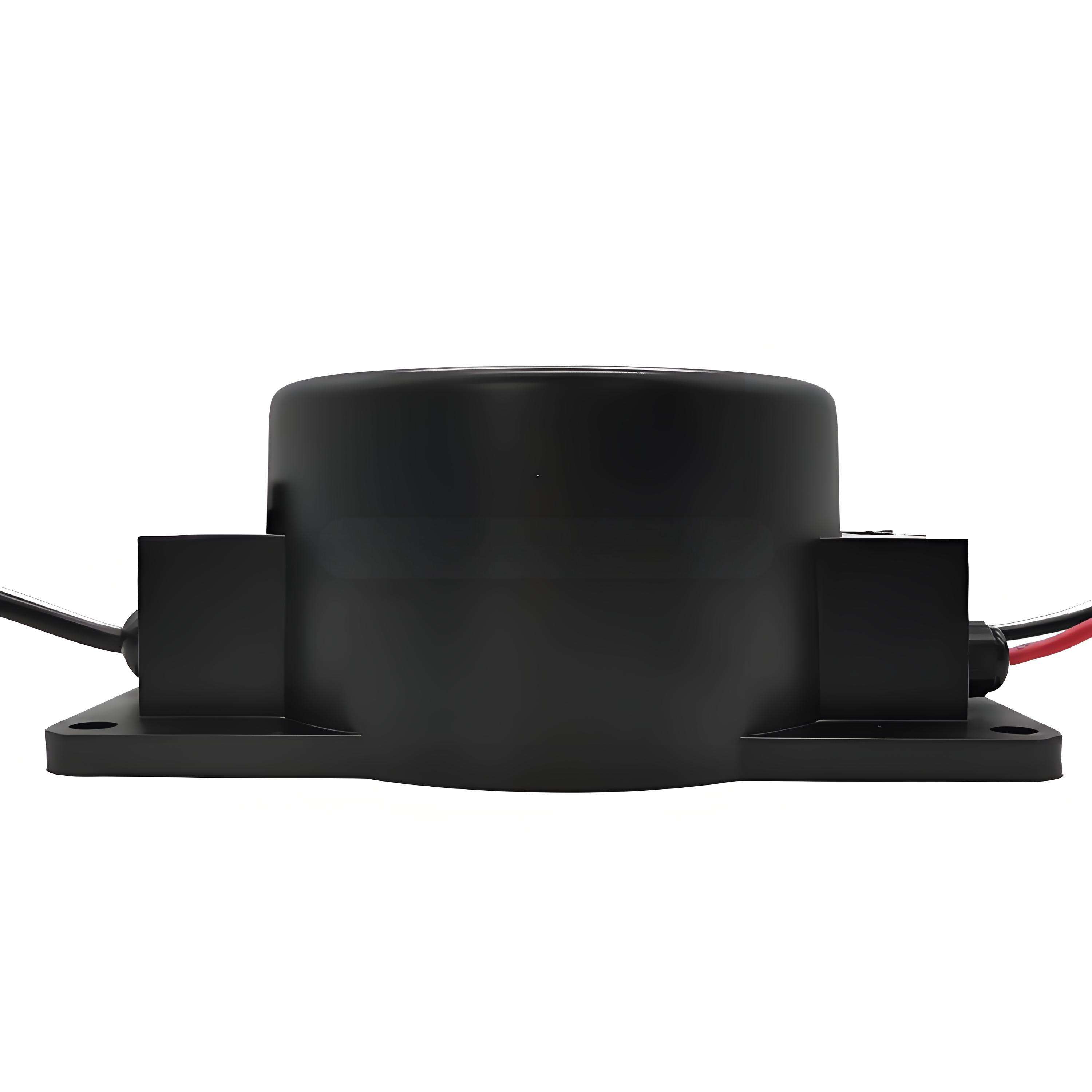

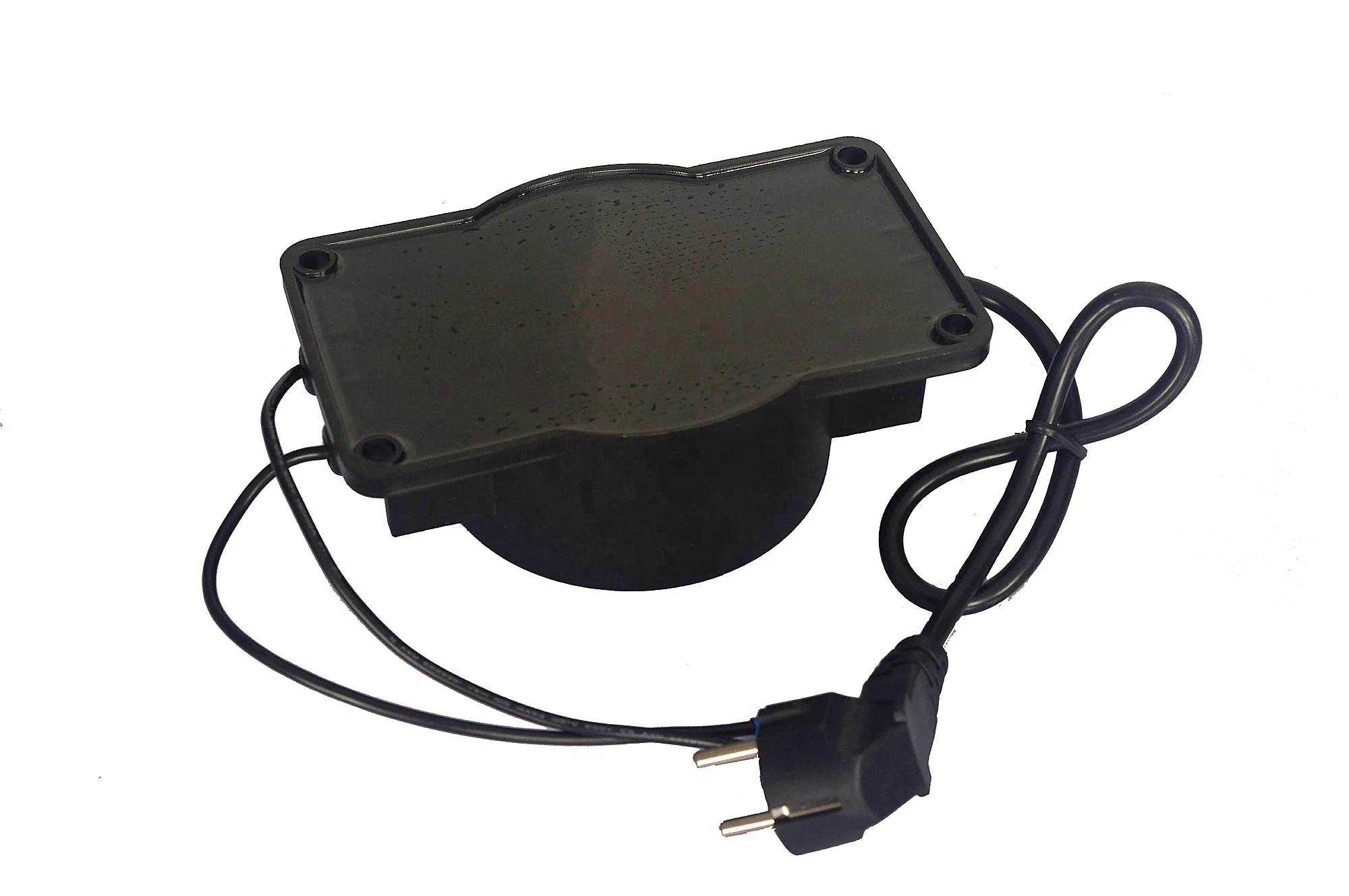

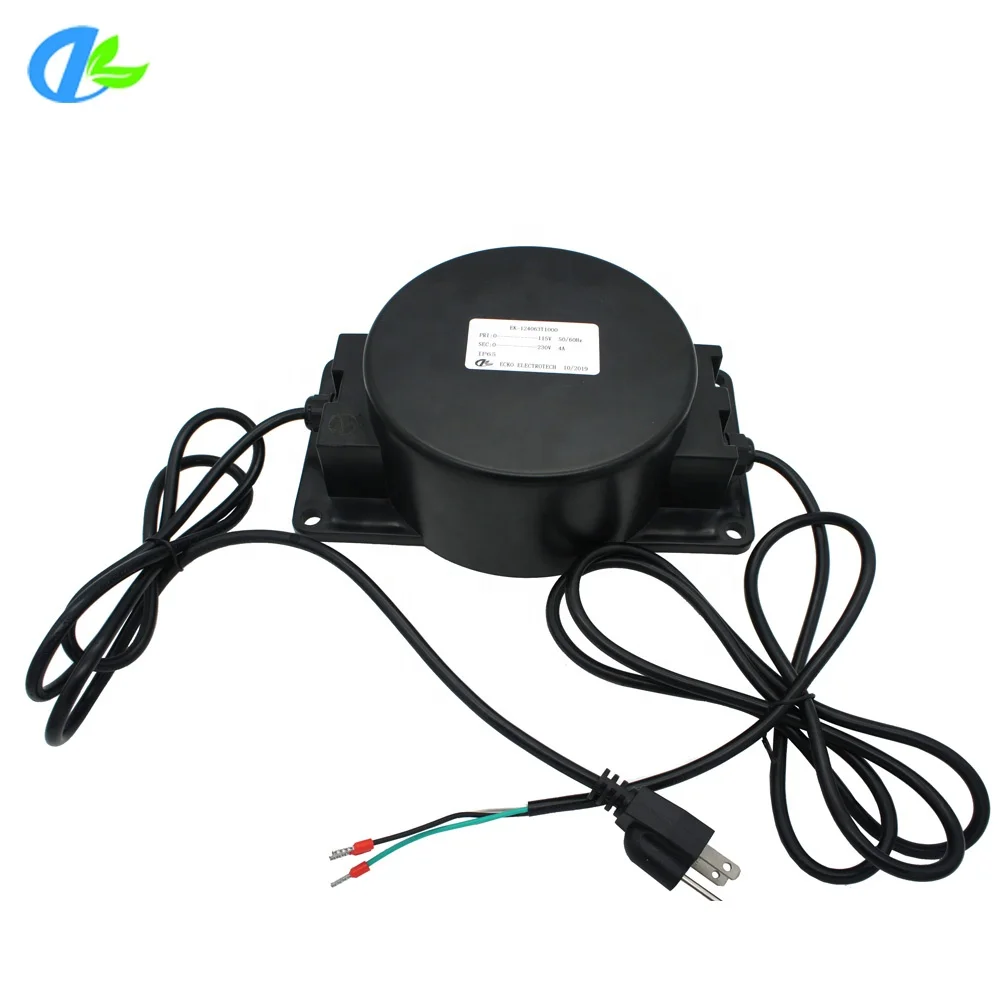

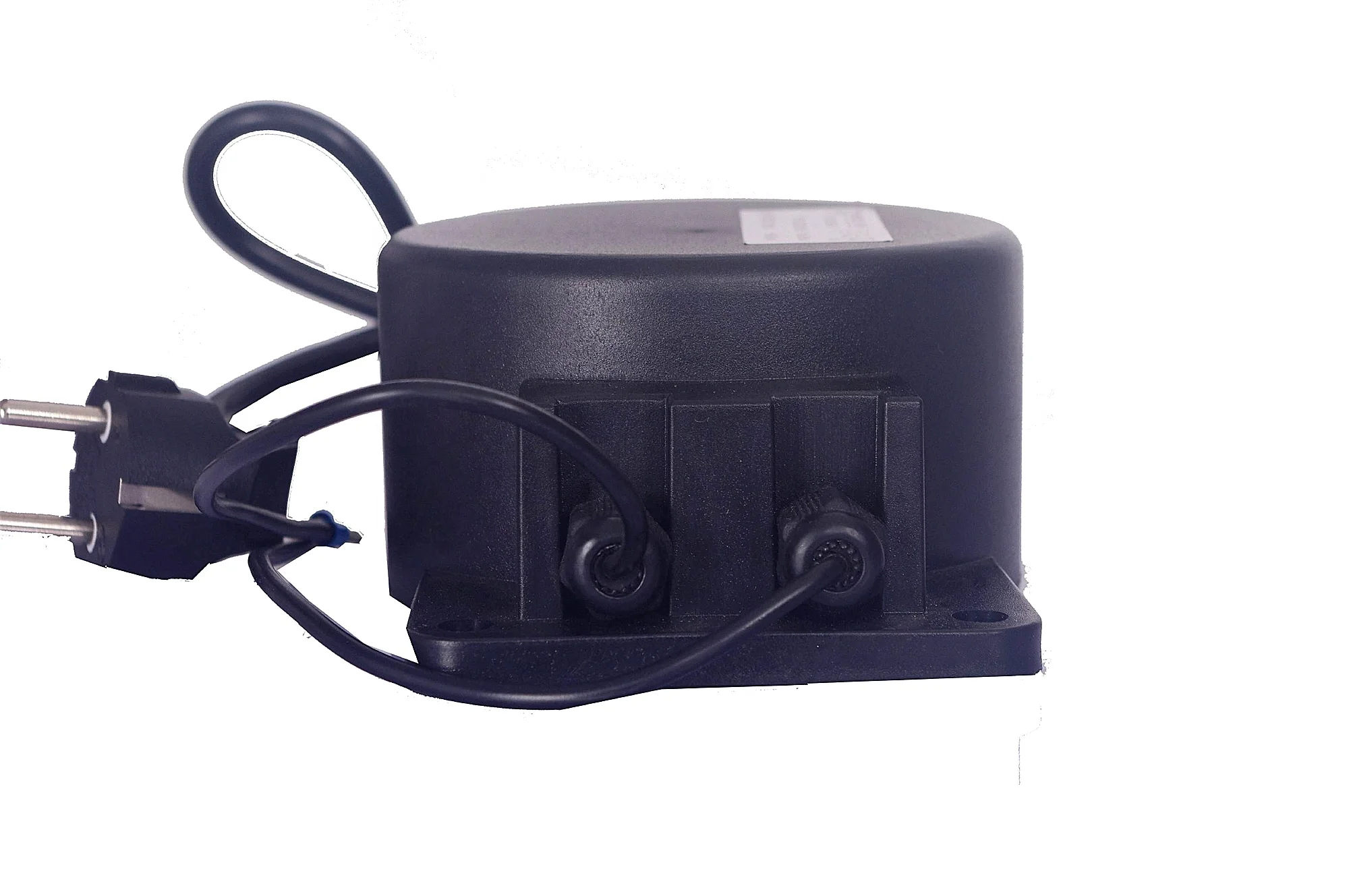

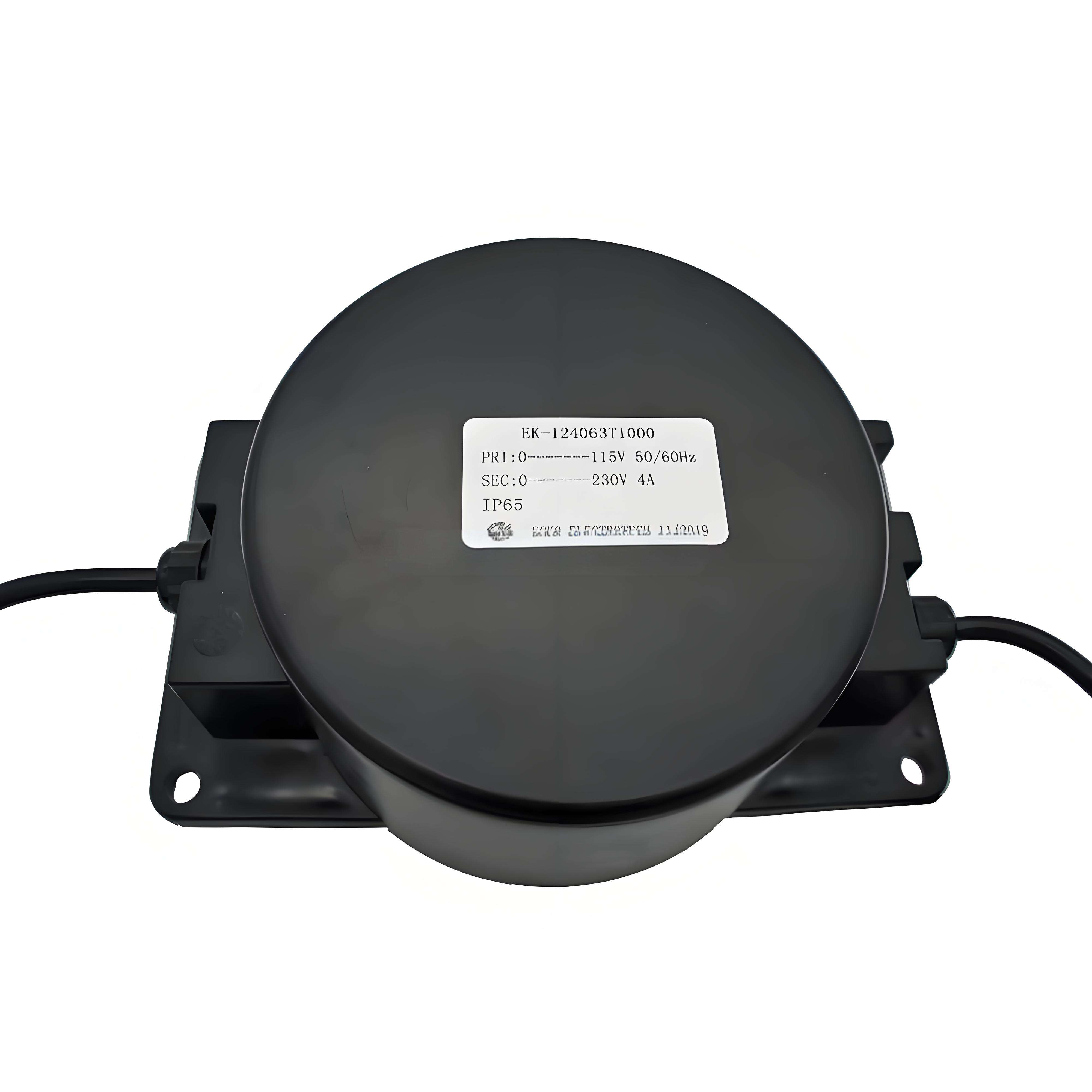

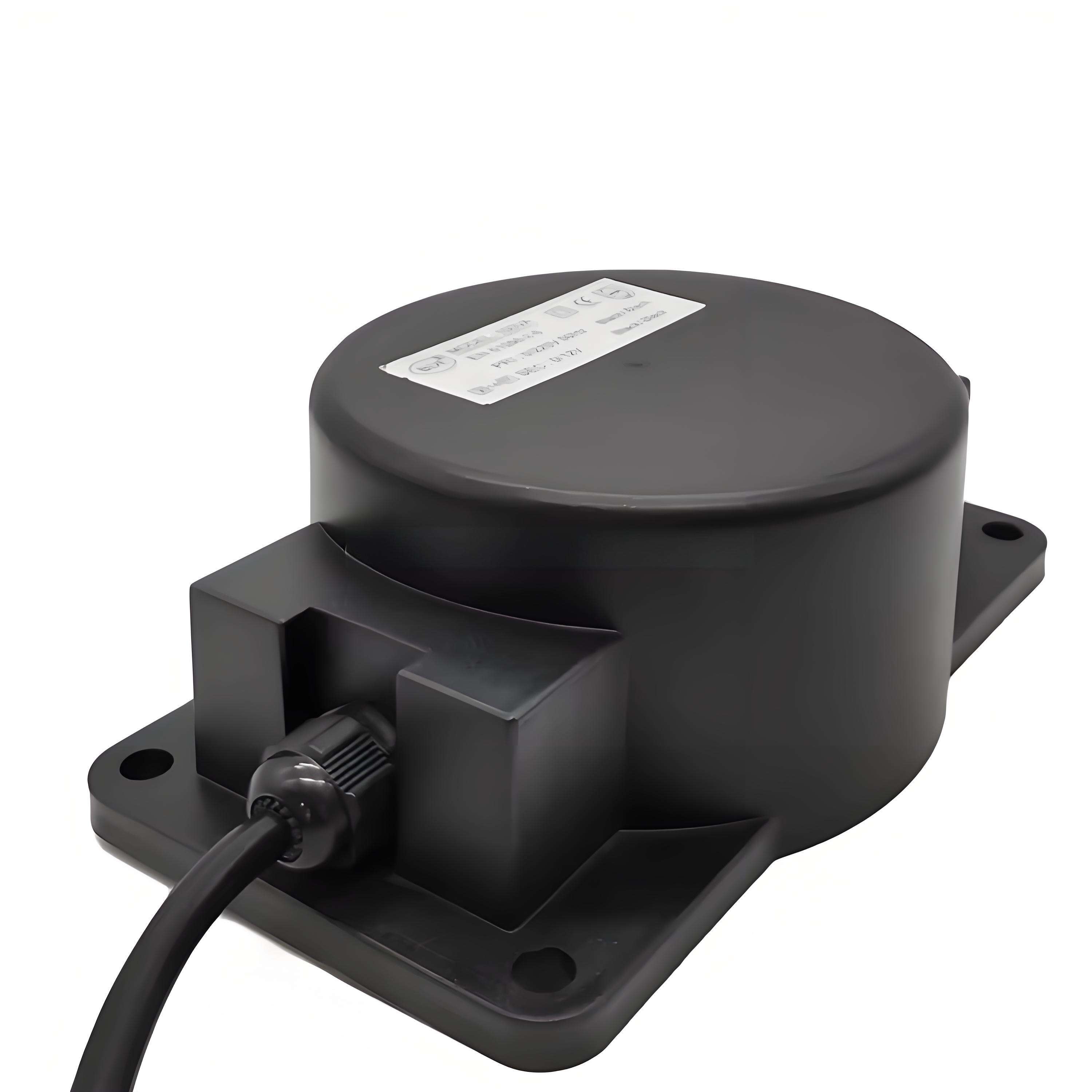

Waterproof Underwater Swimming Pool Light LED Encapsulated Toroidal Transformer |
Model Number: |
EKETCustom |
Input: |
120VAC/220VAC/230VAC (Custom available) |
Output: |
12VAC/24VAC/36VAC (Custom available) |
Power: |
50VA 105VA 200VA 300VA 400VA 500VA 600VA 800VA 1000VA |
Frequency: |
50/60Hz |
Degree of protection: |
IP65, IP66, IP67, IP68 |
Insulation Class: |
Class B/Class F/Class E |
Ambient temperature |
Ta=25°C |
HI-POT test |
4000VAC |
Protection: |
short circuit/overload/over voltage/over temperature(optional) |
Certificate: |
CE-ROHS, CE-ISO,CE-LVD |
Standard: |
EN61558, EN61000,IEC52321 |
OEM or ODM: |
Acceptable |
Custom made: |
Yes |
Application: |
Waterproof outdoor lights, garden lights, buried lights, underwater lights, waterproof lighting, LED lights, fountain lights,christmas lamps. pumps, motors, finger lights, etc |

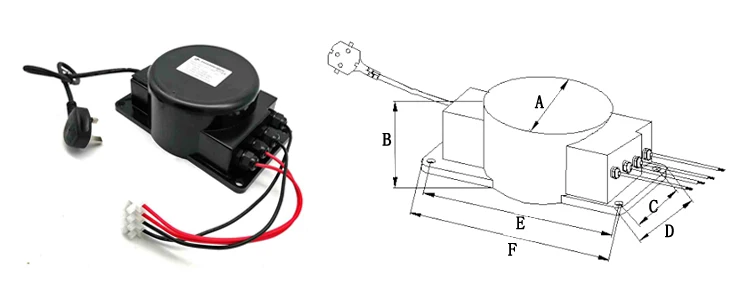

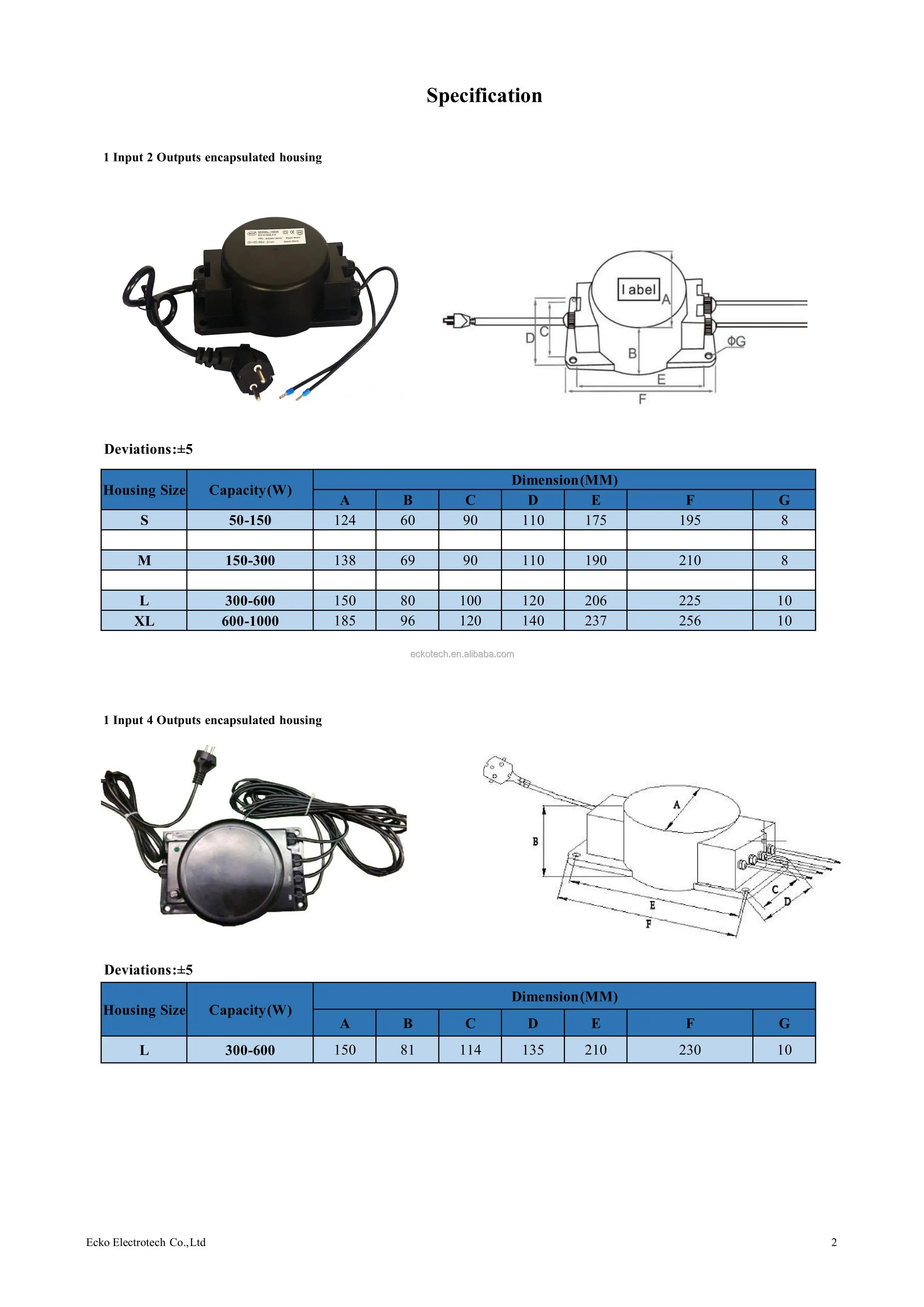

Power(VA)
|
Dimension(MM) |
Dimension |
|||||||||||
A |
B |
C |
D |
E |
F |
G |
|||||||
50VA-150VA |
124 |
60 |
90 |
110 |
175 |
195 |
8 |
||||||
150VA-300VA |
138 |
69 |
90 |
110 |
190 |
210 |
8 |
||||||
300VA-600VA |
150 |
80 |
90 |
120 |
206 |
225 |
10 |
||||||
600VA-1000VA |
185 |
96 |
120 |
140 |
237 |
256 |
10 |
Power(VA)
|
Dimension(MM) |
Dimension |
|||||||||||
A |
B |
C |
D |
E |
F |
G |
|||||||
300VA-600VA |
150 |
81 |
114 |
135 |
210 |
230 |
10 |

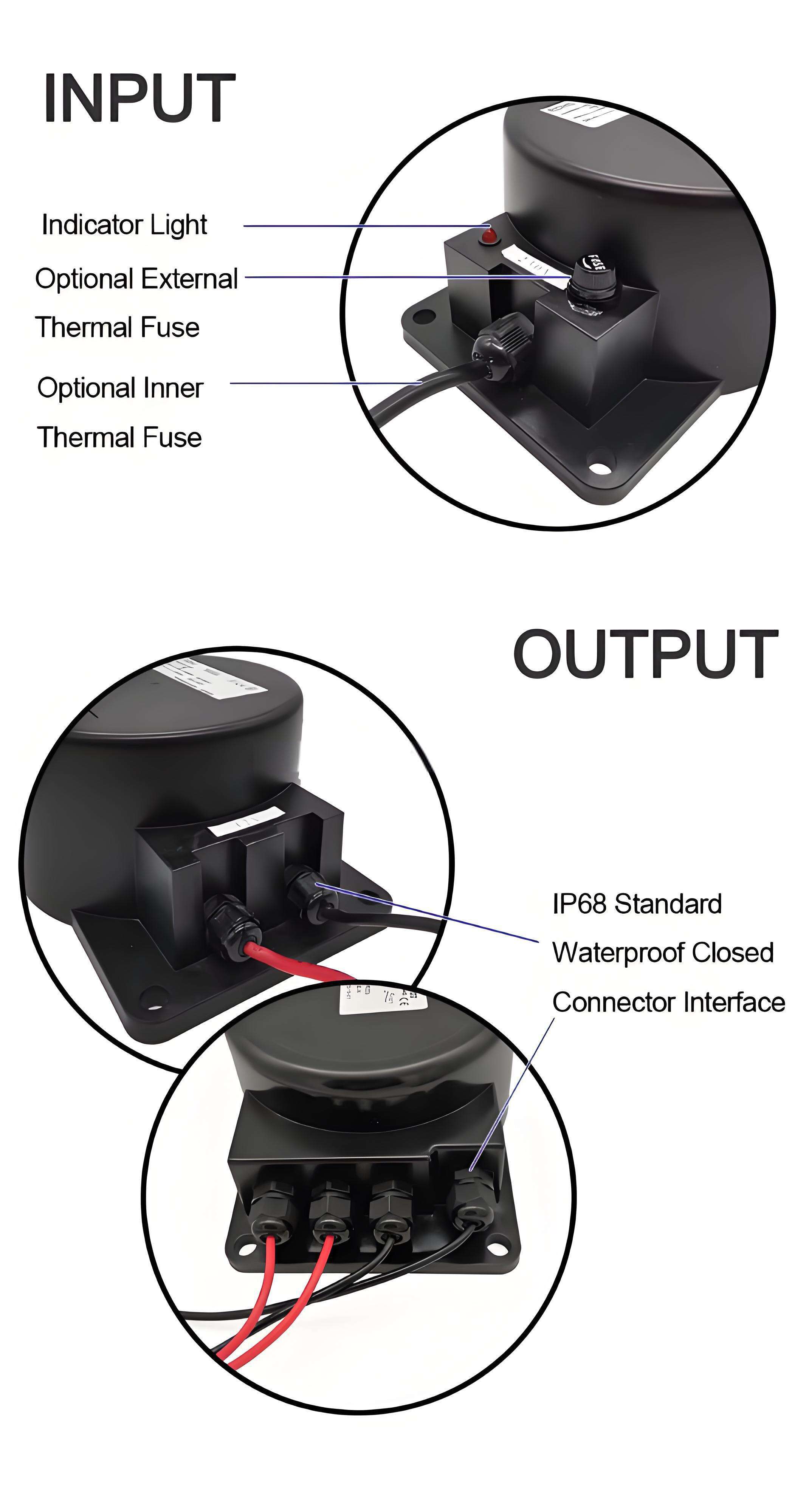

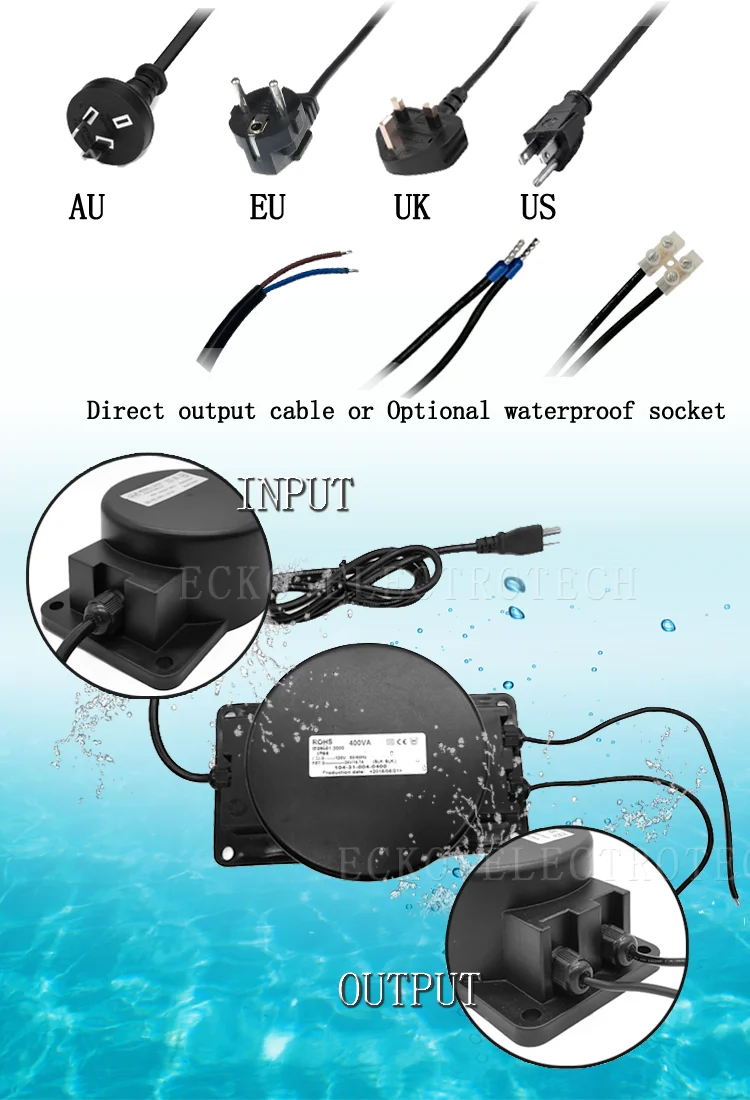

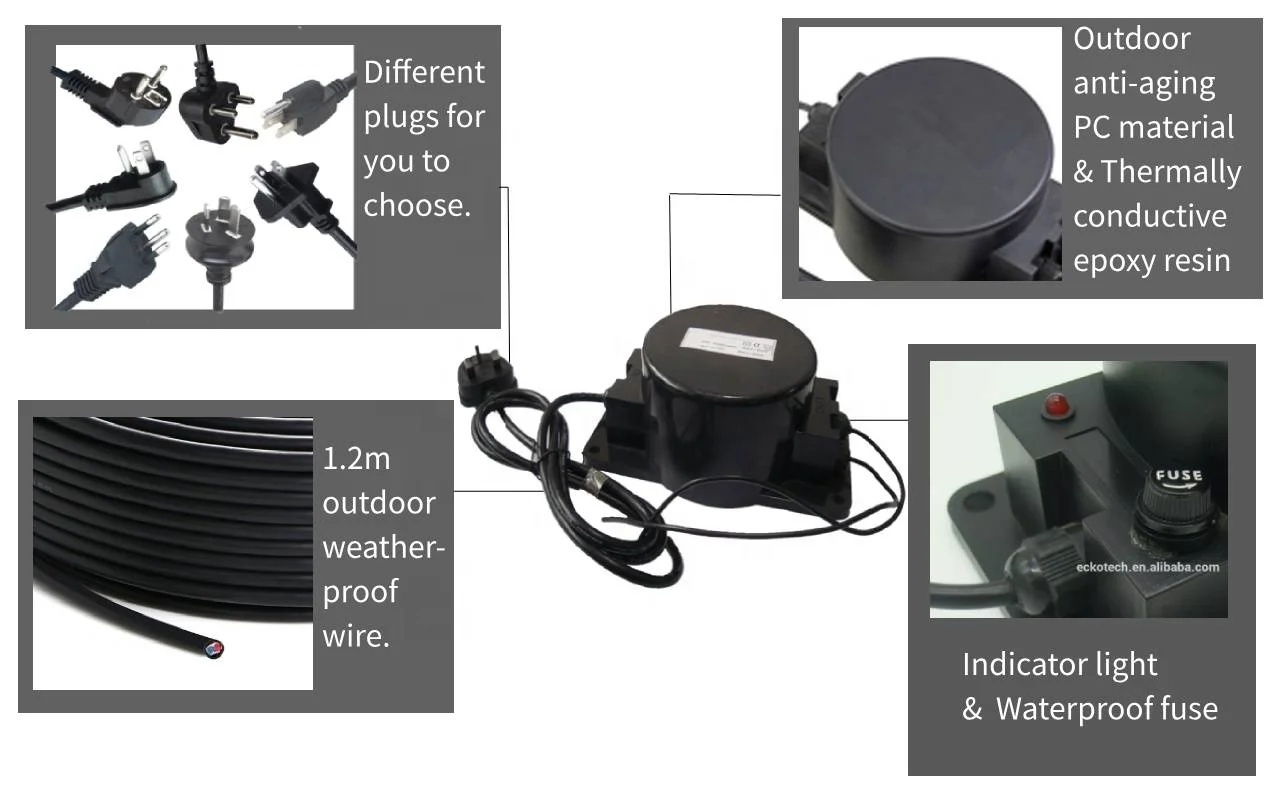

Input Cable |
Plug
|
Type |
UK, EU, US, AU, CN, Japan, Korea optional |
|
Certificate |
UL or CUL |
|||
Features |
Waterproof IP68 rate |
|||
Input Cable Length |
Standard 1.2M, custom available |
|||
Output Wire |
Socket |
lsolated with waterproof socket or direct output cable |
||
Output Wire Length |
Standard 20cm, custom available |

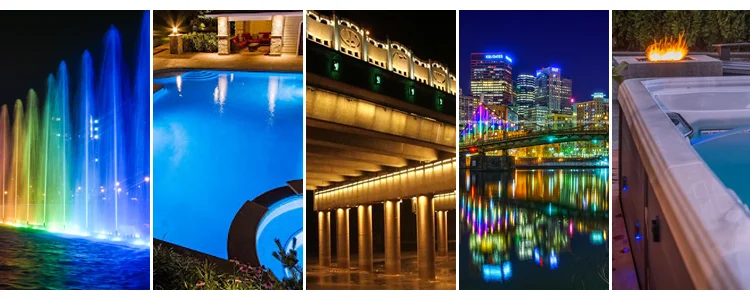

Pond |
Pool |
Square |
Riverside |
Spa |
Underwater lights
Fountain lights
|
Swimming pool lights |
Buried lights
Wall washer lights
|
Guardrail lights
Spotlights
|
Spa lights |
Strong design and development ability, our R&D team, more than 20 years of industry experience, we provide a full set of solutions. Make samples quickly,1day the soonest.
Our flexible production line and skilled workers,sample can be finished in 1-3 days,order within 10000pcs can be delivery in 10-20 days,negotiable according to issue.
100% inspection and testing before delivery, the products have passed the CE/ROHS/CUL certification,24 months quality assurance.
Global customers, no time barrier. Fast support on orders, production, tech & inquiries. Contact us or visit our factory.
