High Quality Customised 1000W BK Control Power Transformer Audio Amplifiers 36v-48v-110v-220v-480v 60Hz Frequency
This professional-grade control power transformer delivers reliable performance for audio amplification applications. Offering an impressive 1000W power rating, it provides stable voltage conversion across multiple input/output options including 36V, 48V, 110V, 220V, and 480V at 60Hz frequency. The BK control design ensures precise power regulation and minimal signal distortion, making it ideal for high-fidelity audio systems. Custom-engineered for durability and efficiency, this transformer features premium materials and robust construction to handle demanding audio applications. Its versatile configuration options allow seamless integration into various amplifier setups, while maintaining excellent thermal management and noise reduction. Perfect for professional audio installations, recording studios, and high-end sound systems where consistent, clean power delivery is essential. Backed by rigorous quality testing to ensure long-lasting, dependable operation.
- Overview
- Recommended Products

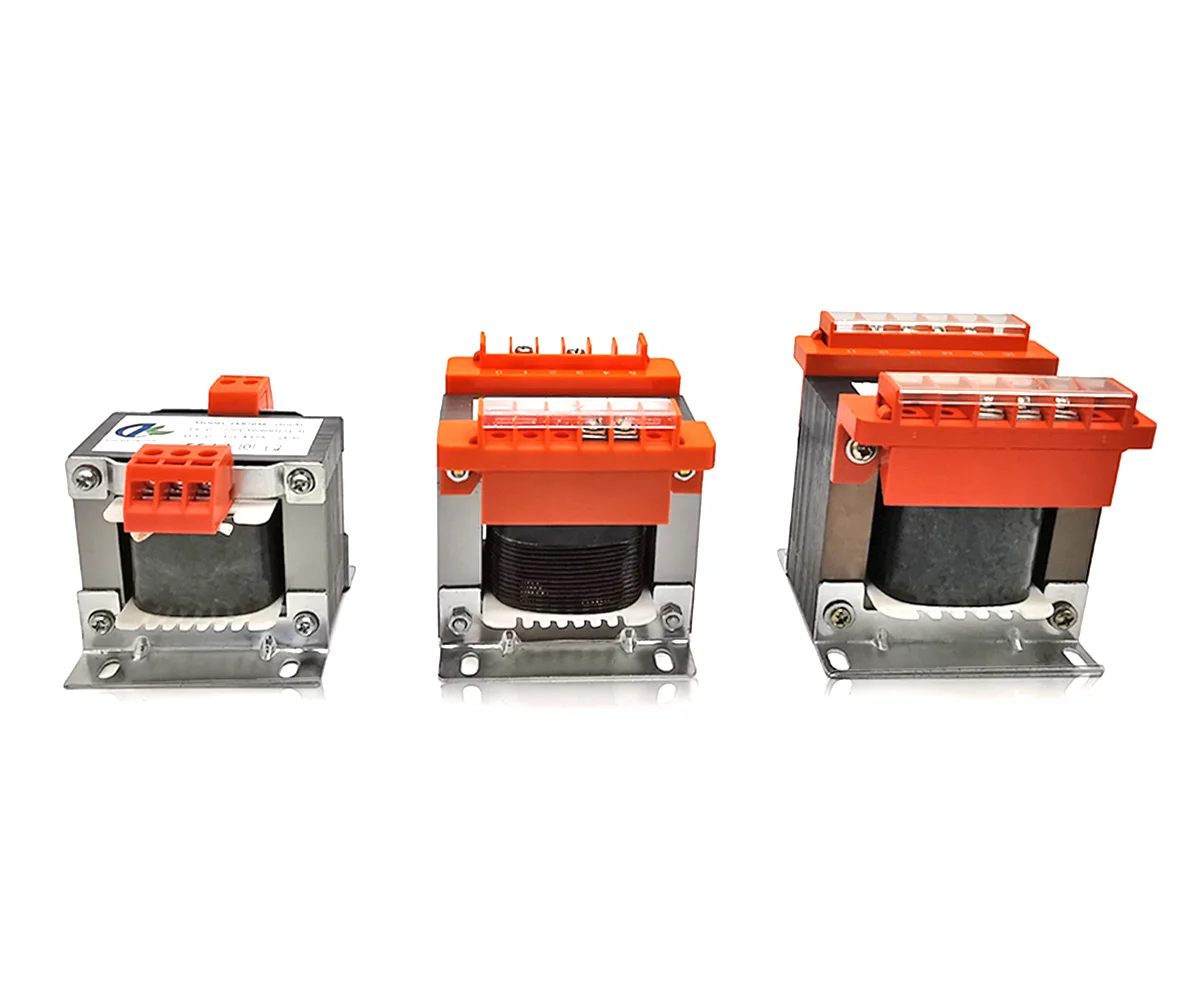

Ecko's control transformers range from 25VA through 5000VA in any class voltage combination designed and manufactured in
accordance with EN61558.
All designs are 50/60 Hz rated and are available in a 105⁰C, 130⁰C, 150⁰C or 180⁰C temperature class.
accordance with EN61558.
All designs are 50/60 Hz rated and are available in a 105⁰C, 130⁰C, 150⁰C or 180⁰C temperature class.

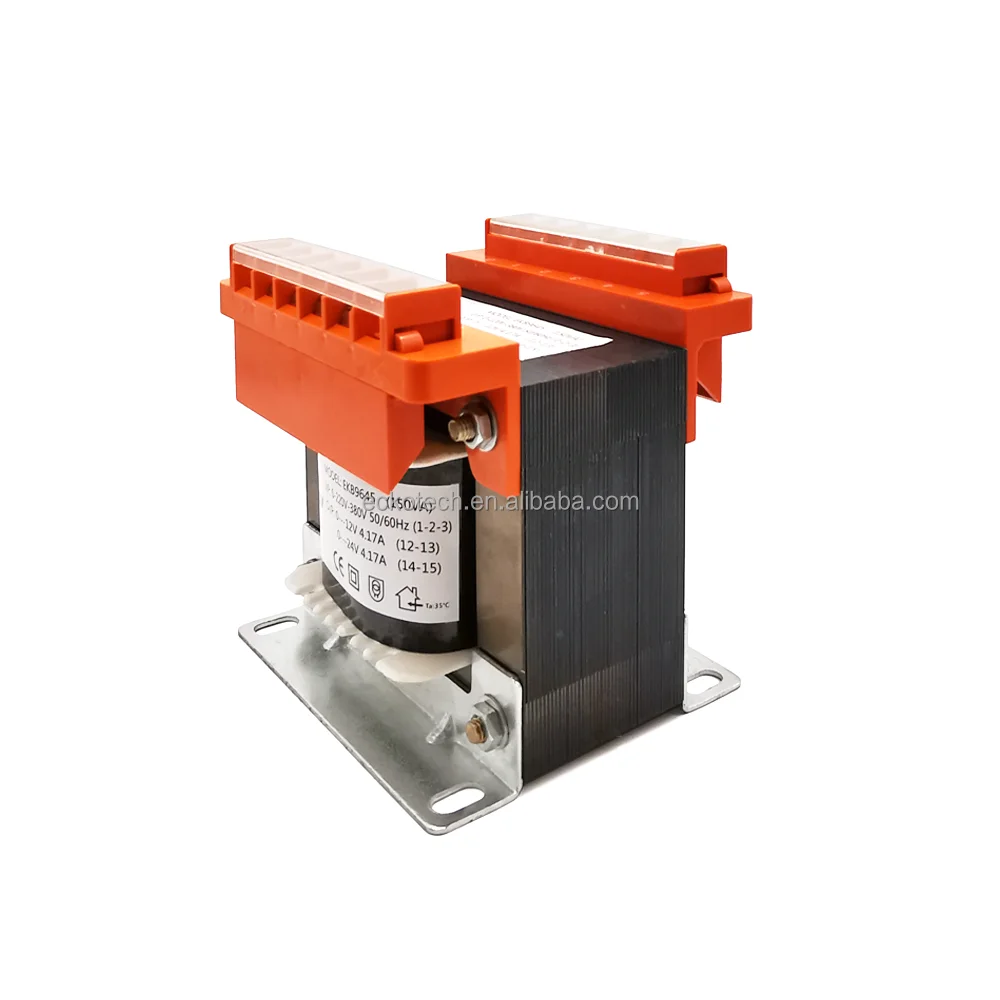

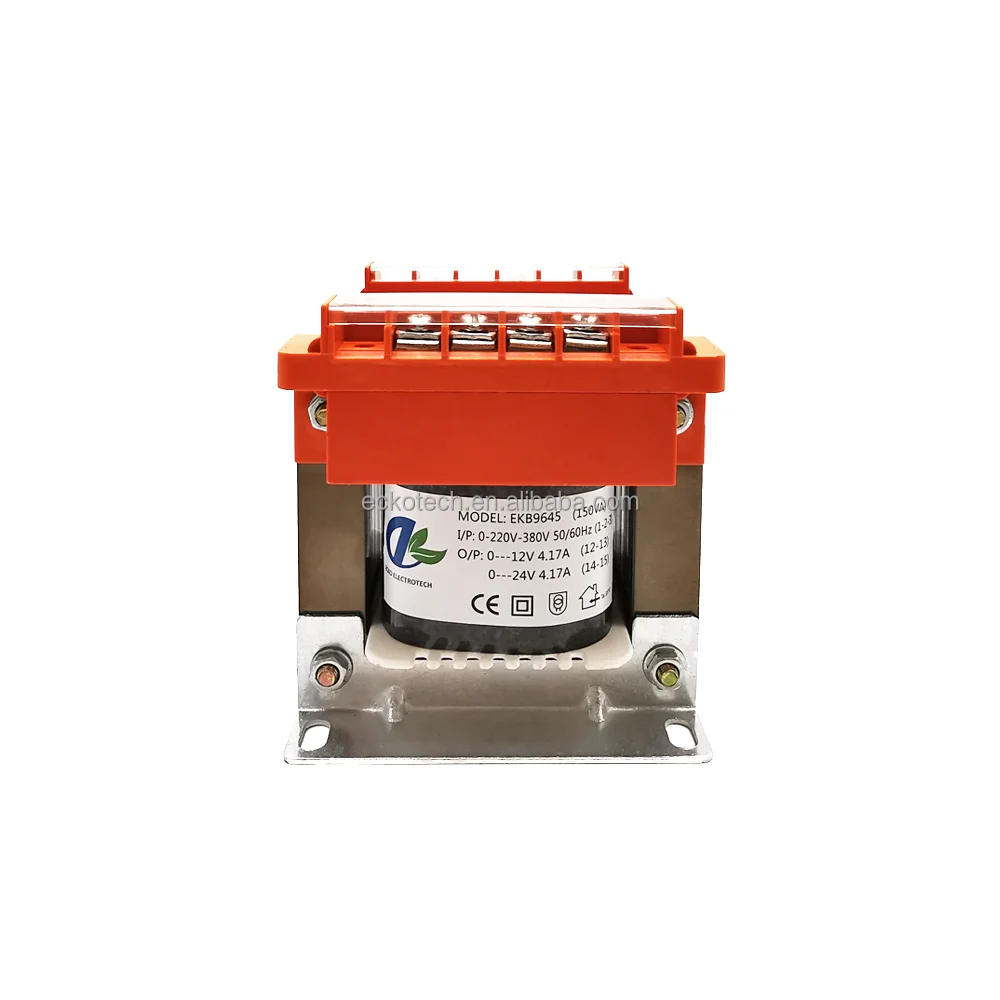

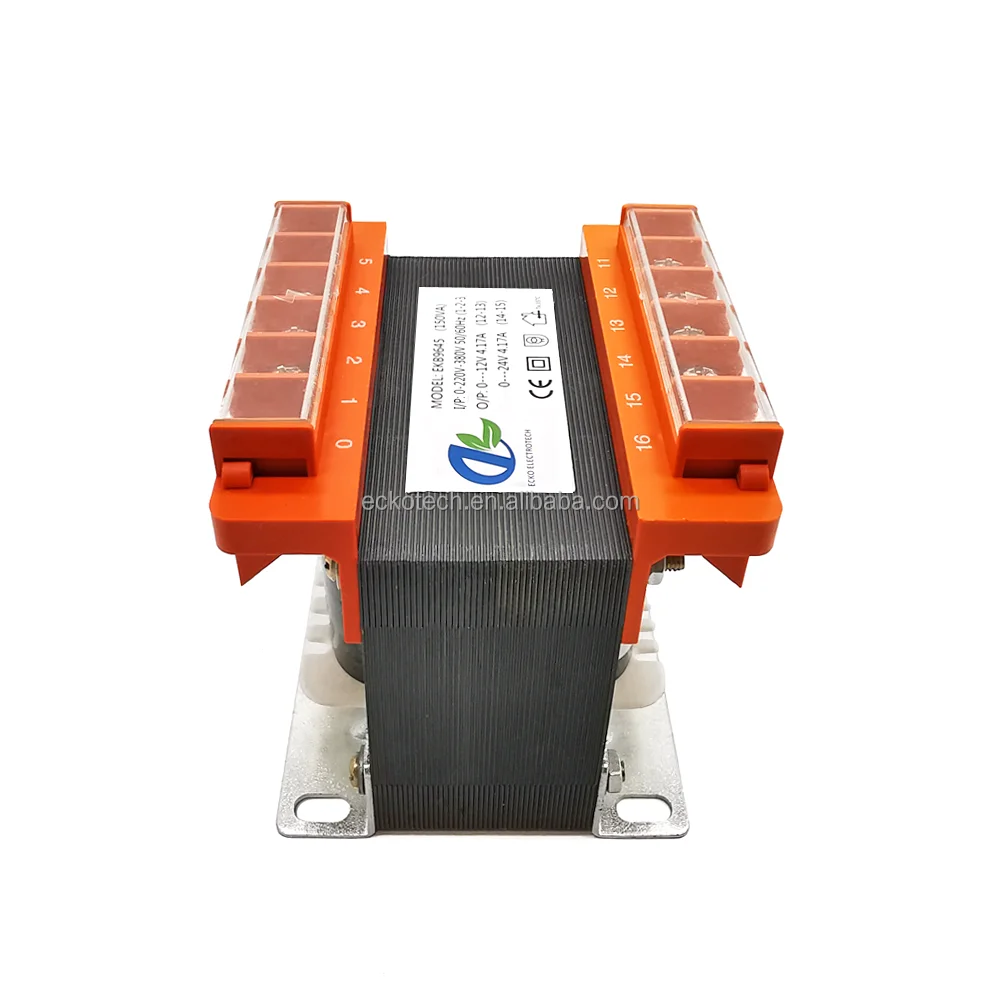

Product Name |
Single Phase EI Control BK Transformer |
Model No. |
EKB9645 |
Rated Input Voltage |
0-220V-380V (custom available) |
Rated Output Voltage |
0-12V 0-24V (custom available) |
Frequency |
50/60Hz |
Rated Power |
150VA (custom available) |
Dimension |
L105XW87XH108 MM |
Weight |
3.5 kgs |
Insulation Class |
Class B/Class F/Class E |
Ambient temperature |
Ta=25°C |
HI-POT test |
4000VAC |
Degree of protection |
IP00 |
Certificate |
CE-ROHS, CE-ISO,CE-LVD |
Standard |
EN61558, EN61000,IEC52321 |
Custom Made |
Yes |
Application |
Long-term continuous operation at nominal capacity, are widely used in machine tools and machinery in general electrical power source as a control, local lighting and power indication. |

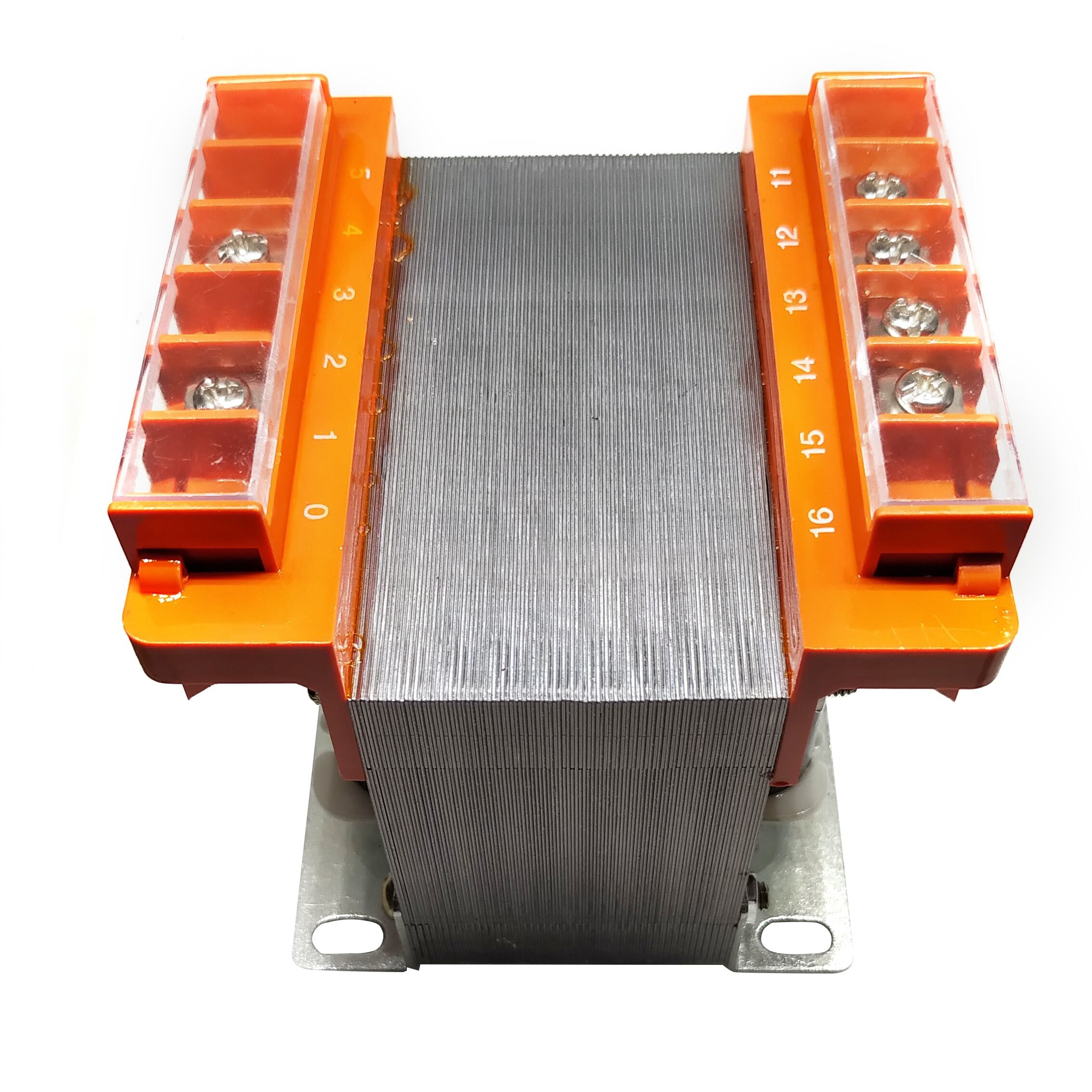

Grain Oriented Electrical EI Silicon Steel Lamination Sheet
Constructed with high quality silicon steel laminations that provide optimum performance and reliability. High saturation magnetic flux density, high efficiency, small excitation power, low loss, good temperature stability.
Flame retardant Nylon Coil Bobbin
Enameled Copper Wire Winding

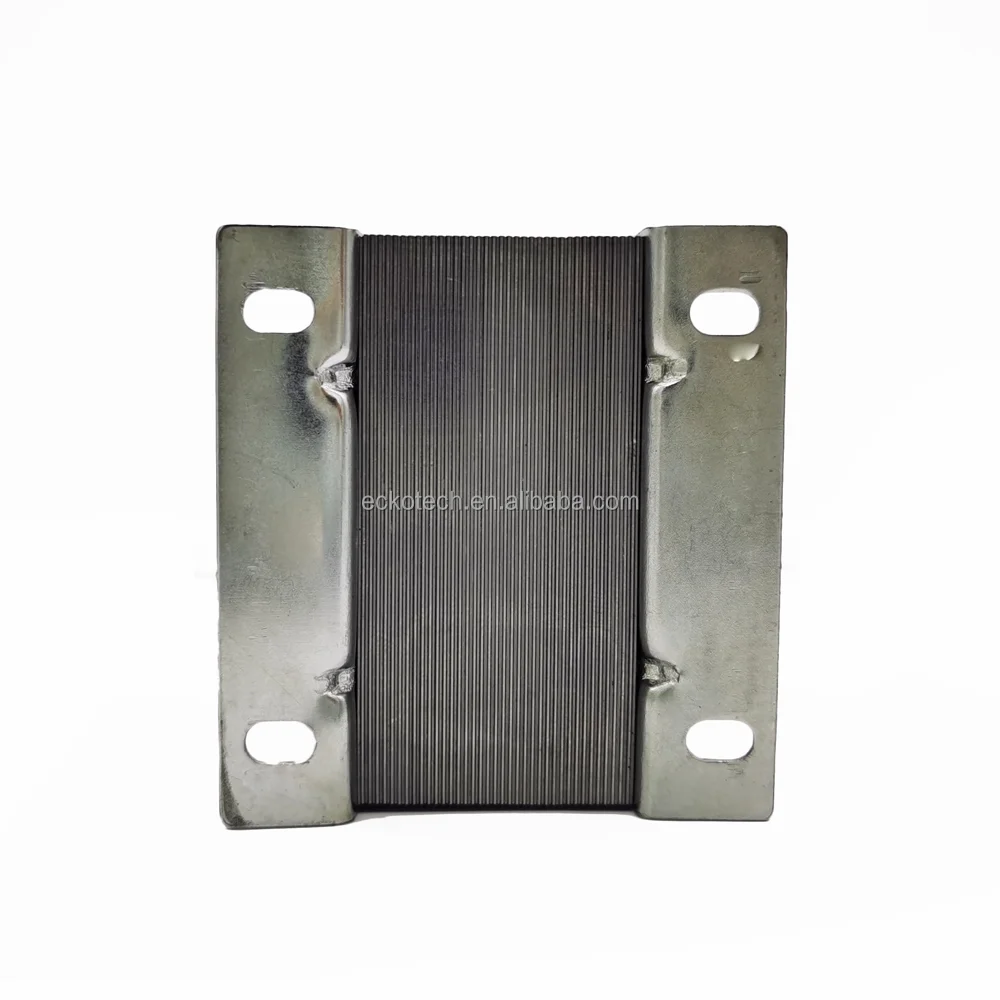

Solid Rolled Steel Mounting Brackets
Brackets vary in size to conform to the size of the transformer core.
Made of heavy steel and welded or bolted to the core,providing superior strength in a compact design.
