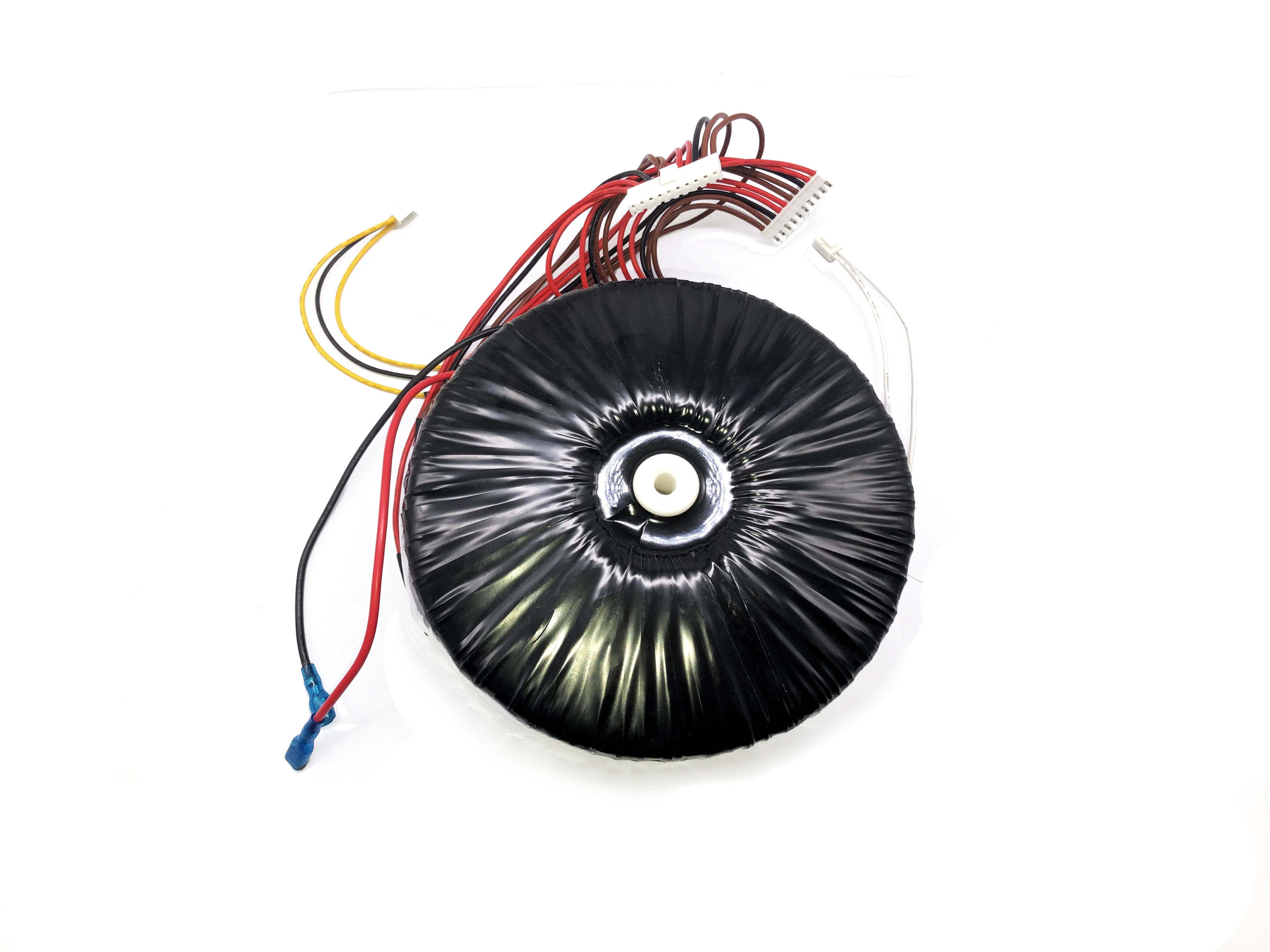

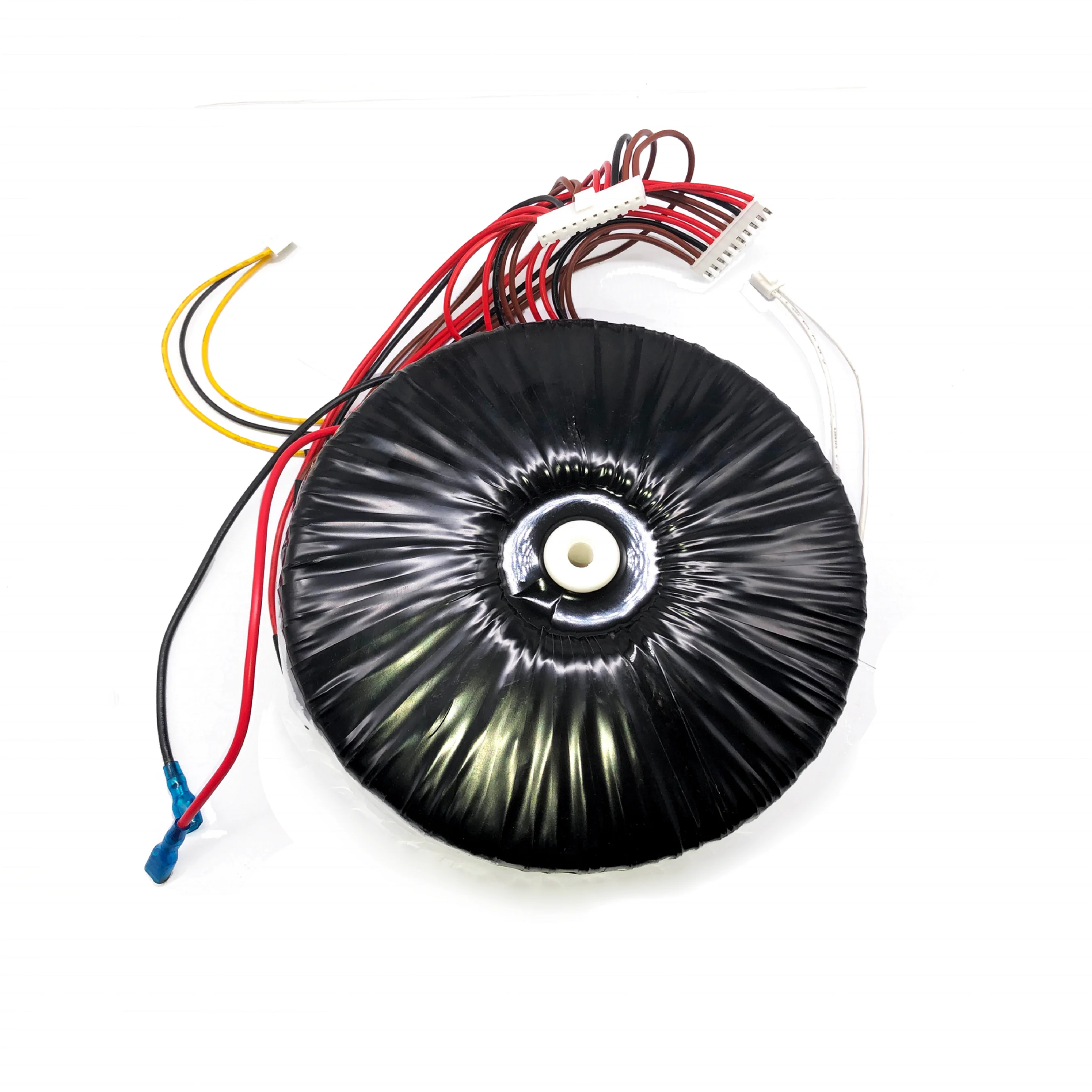

Customized High Quality Toroidal transformers for Solar Inverter 5kva Inverter Toroidal Transformer

Customized High Quality Toroidal transformers for Solar Inverter 5kva Inverter Toroidal Transformer

Solar Inverter-Specific 5kVA Performance: Optimized for residential and commercial solar power systems, delivers stable power conversion for sustainable energy solutions.
Low-Noise High-Efficiency Toroidal Design: Minimizes electromagnetic interference, reduces acoustic noise, and outperforms traditional transformer types.
Premium Core & Winding Build: High-grade silicon steel cores and pure copper windings ensure minimal power loss and excellent thermal management.
Customizable Global Compatibility: Multiple I/O configurations (240V input, 380V/480V output) with 50Hz/60Hz support for diverse regional needs.
Rigorous Quality & Durability: Undergoes strict testing; compact, lightweight construction guarantees long-term reliable operation for solar inverter manufacturers.

Overview
Recommended Products

This premium toroidal transformer is specifically engineered for 5kVA solar inverter applications, delivering exceptional performance and reliability. The toroidal design offers significant advantages including lower electromagnetic interference, reduced noise, and higher efficiency compared to traditional transformers. Built with high-grade silicon steel cores and pure copper windings, it ensures minimal power loss and excellent thermal management. The compact, lightweight construction saves valuable space while providing stable voltage regulation and superior power conversion. Each unit undergoes rigorous quality testing and can be customized to meet your exact specifications. Perfect for both residential and commercial solar power systems, this transformer combines durability with outstanding electrical characteristics to support sustainable energy solutions. Backed by our commitment to quality, it's an ideal choice for manufacturers seeking reliable components for their solar inverter products.

Customized High Quality Toroidal transformers for Solar Inverter 5kva Inverter Toroidal Transformer factory

Product Introduction

Customized High Quality Toroidal transformers for Solar Inverter 5kva Inverter Toroidal Transformer supplier

Frequency	50HZ/60HZ
Rated Power	20-25000VA
Wire	Copper
Process	Coil Winding
Insulation Class	Class B,Class F,Class E
Certification	CE,RoHs,ISO
Temperature rise	≤65°C
Core material	CRGO silicon steel core
Customized made	Yes

Application:
Medical equipment, Automatic control equipment, home appliances, audio amplifier, CCTV security, broadcasting system，solar power, wind power, telecommunications,etc

Product Features:
Long life
Energy conserving
High Efficiency
Low Temperature Operation
No Radiation, no noise
High standard, high quality

Customized High Quality Toroidal transformers for Solar Inverter 5kva Inverter Toroidal Transformer manufacture

Customized High Quality Toroidal transformers for Solar Inverter 5kva Inverter Toroidal Transformer details

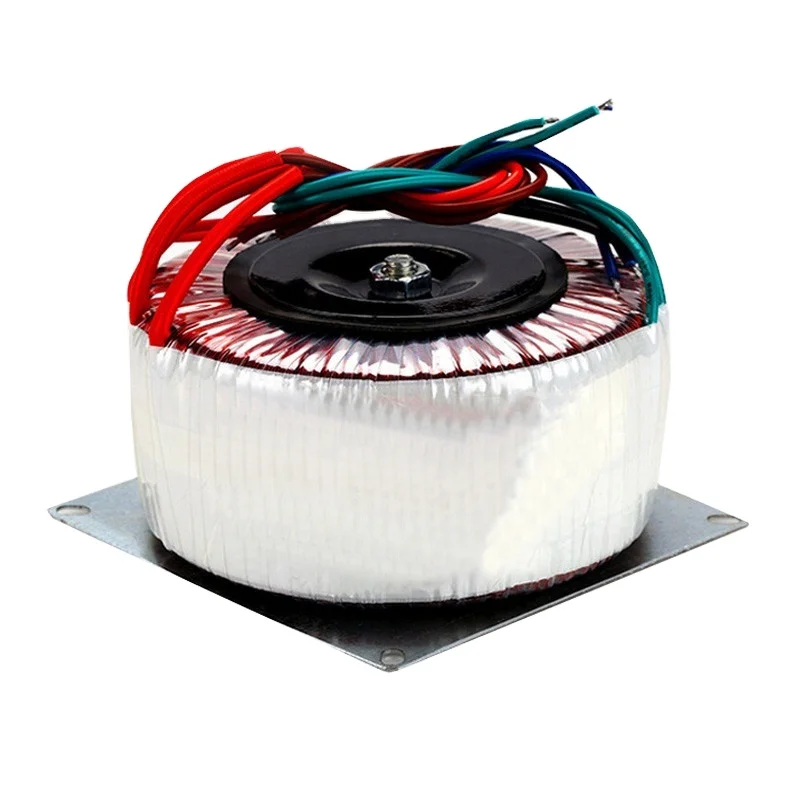

Single-phase toroidal transformers, power range from 20VA to 5000VA. Designed and tested according to EN61558. Suitable forinstallation in electronically equipment.

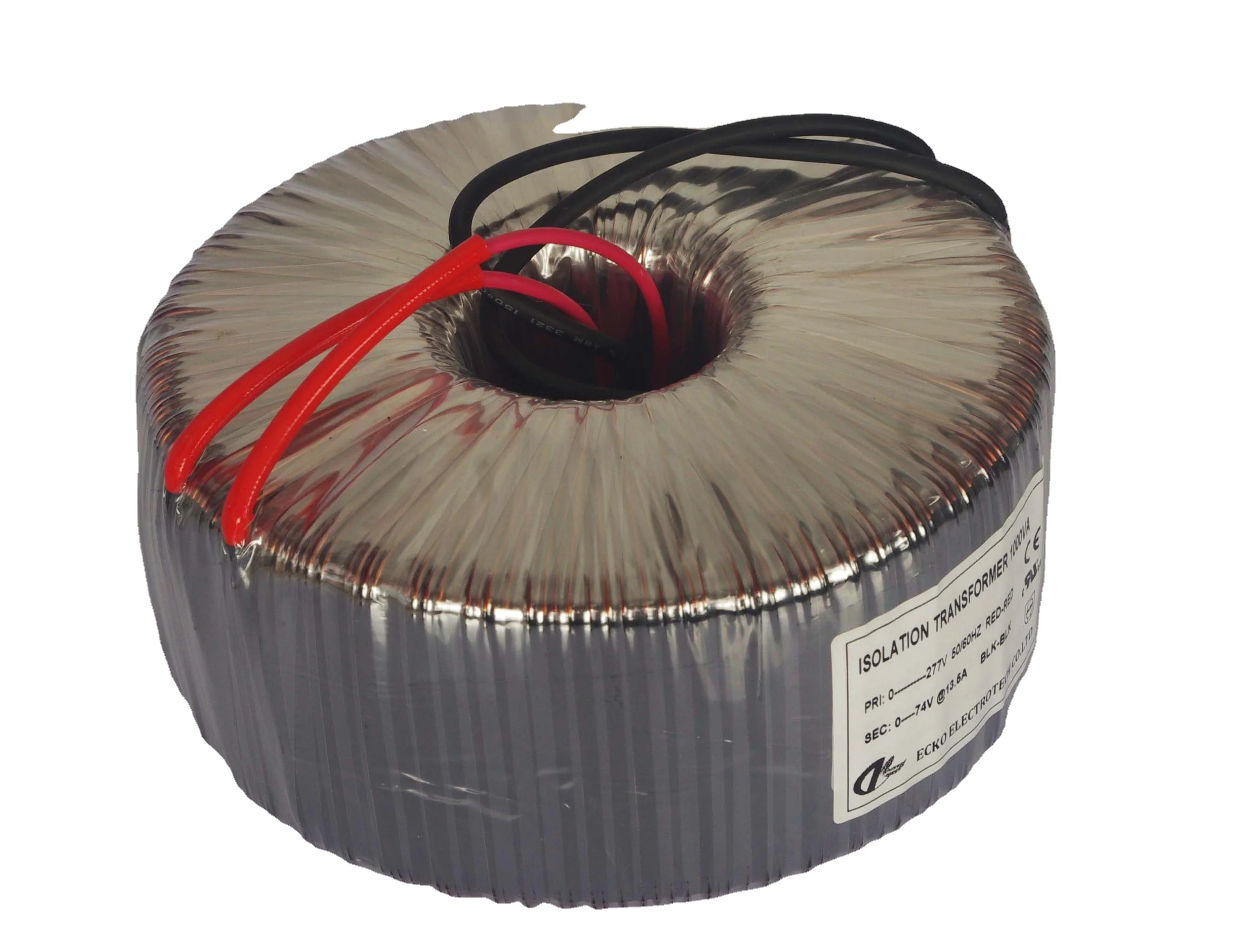

Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.
Short circuit and overload protected with thermal fuse(or thermal switch) on primary side. Up to 50% less weight than a similar conventional transformer.

Lower magnetisation currents and no-load losses.

High-end silicon steel core

Core insulation

Copper wire winding

Lead wire fitting

Finished product

Testing

Model	Power (VA)	Dimension(MM)			Weight(KG)
Model	Power (VA)			OD	Weight(KG)	Height
EKT020	20	63	28	0.3
EKT050	50	72	40	0.6
EKT080	80	78	47	0.9
EKT100	100	92	48	1.1
EKT120	120	89	52	1.4
EKT160	200	99	52	1.8
EKT200	200	108	52	2.1
EKT250	250	110	66	2.3
EKT300	300	112	66	2.7
EKT400	400	130	70	3.8
EKT500	500	140	75	4.7
EKT600	600	145	78	5.5
EKT800	800	160	80	7.2
EKT1000	1000	170	90	9
EKT2000	2000	205	95	13.5
EKT3000	3000	220	120	18.5
EKT4000	4000	260	125	24
EKT4500	4500	285	130	25.5
EKT5000	5000	295	138	28.5
EKT6000	6000	300	145	34
