Outdoor Lighting Project Waterproof Power Transformer 220V to 24V 200W Wide Temp Anti-Corrosion Stable Frequency 50Hz

Outdoor Lighting Project Waterproof Power Transformer 220V to 24V 200W Wide Temp Anti-Corrosion Stable Frequency 50Hz

This heavy-duty 200W power transformer is specifically engineered for outdoor lighting applications, offering reliable 220V to 24V voltage conversion with unwavering 50Hz frequency stability. Built to withstand harsh environmental conditions, it features comprehensive waterproof protection and anti-corrosion treatment, making it ideal for exposed outdoor installations. The transformer's wide temperature operating range ensures consistent performance in both extreme heat and cold, while its robust construction guarantees long-term durability. Perfect for commercial and residential outdoor lighting projects, landscape illumination, and architectural lighting systems where stable low-voltage power is essential. Its professional-grade design prioritizes safety and efficiency, providing reliable power conversion for multiple lighting fixtures while maintaining excellent electromagnetic compatibility. UL certified and compliant with international safety standards, this transformer delivers peace of mind for demanding outdoor applications.

Overview
Recommended Products

Outdoor Lighting Project Waterproof Power Transformer 220V to 24V 200W Wide Temp Anti-Corrosion Stable Frequency 50Hz details

Product Usage

Waterproof transformer suitable for plug lawn laser light, Christmas tree light string, LED lighting, LED light string, Copper string lights, Low-pressure
pumps, Motor toys, LED light-emitting module, Underwater system, Fountains, Swimming pools , Gardening...

Small appliances:

electronicrefrigerator, electric fan, mosquito lamp, air purifiers, humidifiers, meat grinder, oven etc.

Protection Level:

Working Status light: LED status light

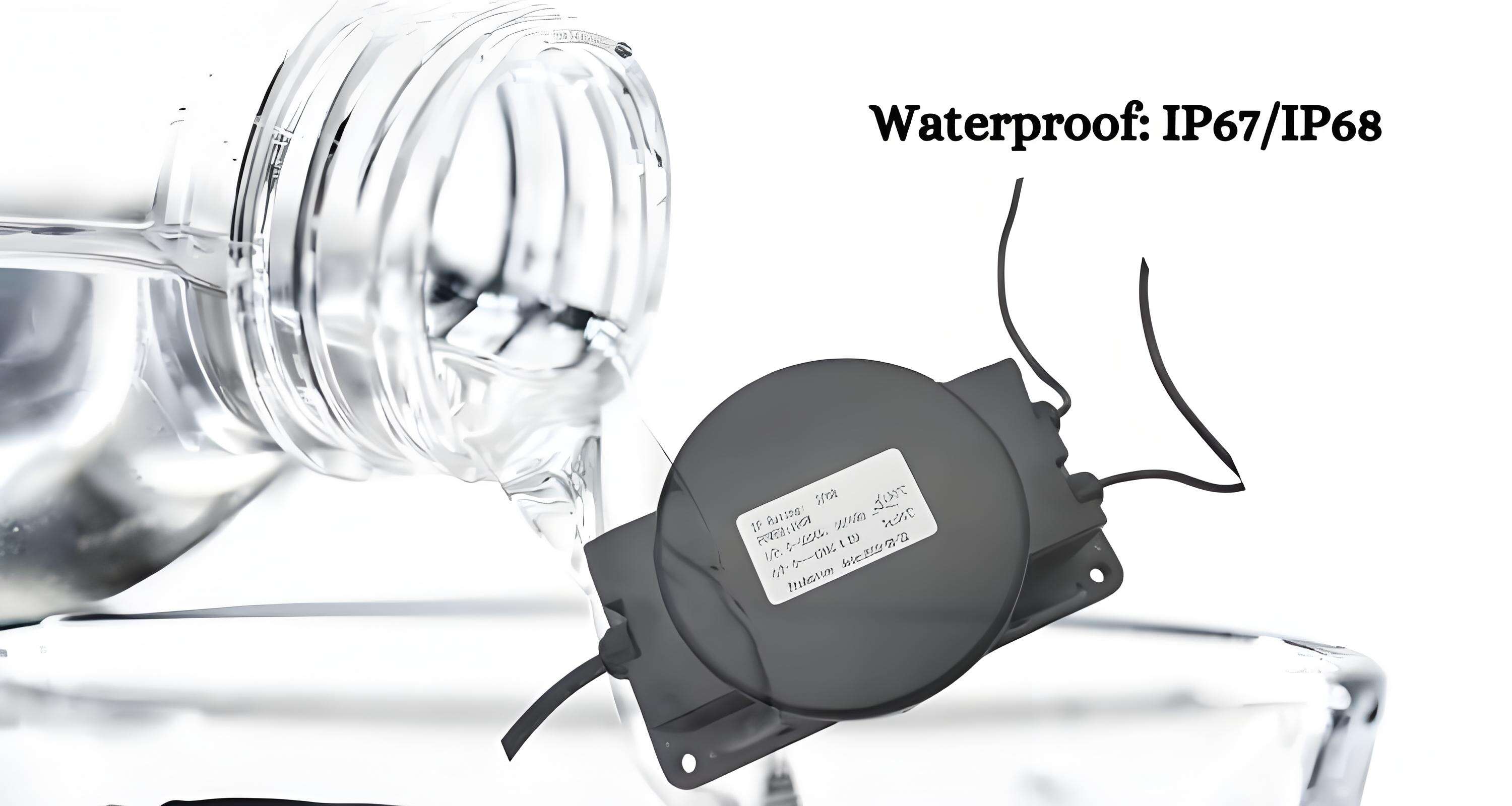

Waterproof grade: IP65/IP67/IP68
Epoxy resin potting: Heat conduction resin potting
Protection device: Temperature protection

Waterproof transformer is made of imported high magnetic flux low-loss silicon steel sheet with double-layer insulation and
high-strength lacquer wrap, which has excellent electrical characteristics.

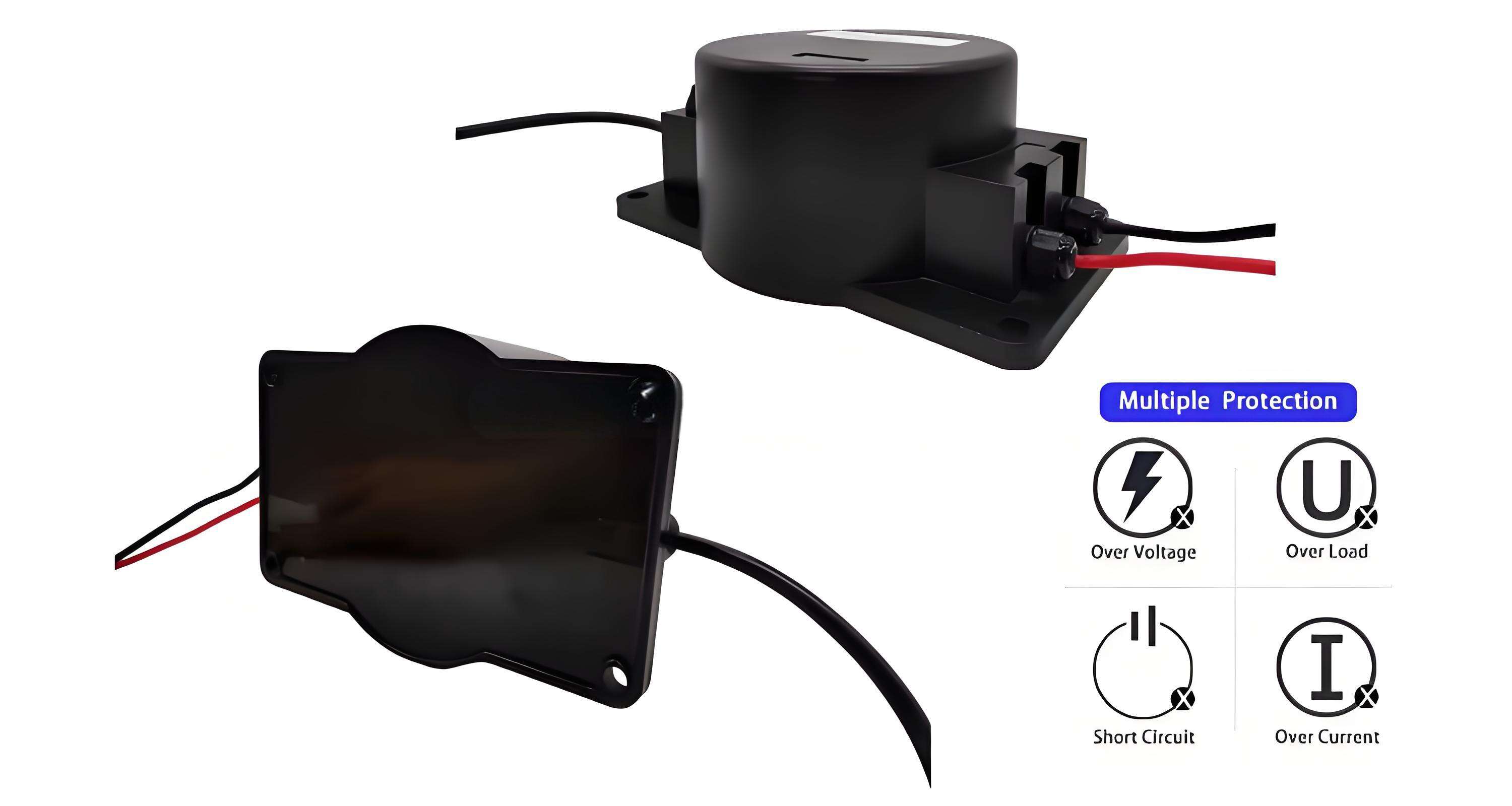

Advantage:

Short-circuit protection

Overload protection
Temperature protection

Outdoor Lighting Project Waterproof Power Transformer 220V to 24V 200W Wide Temp Anti-Corrosion Stable Frequency 50Hz manufacture

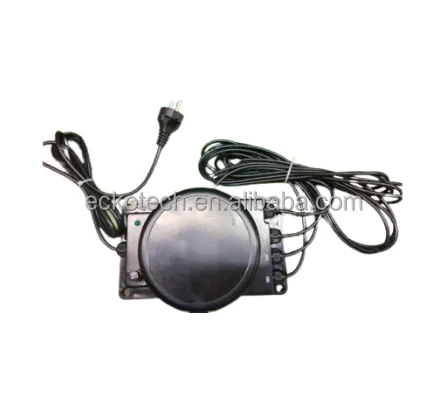

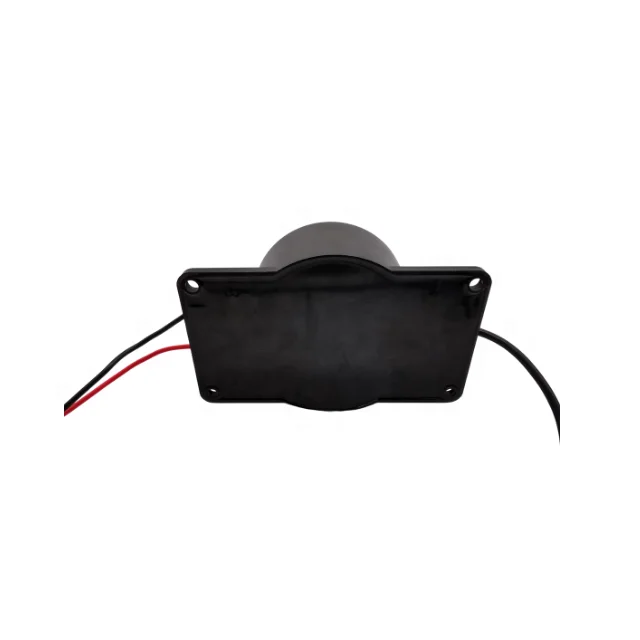

One cable in, 4 cable out

Technical specifications:

* Input voltage: Customized
* Frequency: 50-60Hz
* Output voltage: Customized
* According to: EN61558
* Test/insulating voltage: 4kV AC RMS
* Construction class: II
* Insulation class: B (130°C)
* Ambient temp. (ta): 25°C

Outdoor Lighting Project Waterproof Power Transformer 220V to 24V 200W Wide Temp Anti-Corrosion Stable Frequency 50Hz factory

_Model	Dimension(mm)								Power (VA/W)
_Model		A	B	C	D	E	F	G	Power (VA/W)
EKE50	124	60	90	110	175	195	8	50W-150W
EKE150	124	60	90	110	175	195	8	150W-300W
EKE300	138	69	90	110	190	210	10	300W-600W
EKE400	150	81	114	135	210	230	10	400W-600W
EKE600	150	81	114	135	210	230	10	300W-600W
EKE1000	185	96	120	140	237	256	10	600W-1000W

*The parameter is only for reference as typical data, customized are welcomed.
*We are able to provide you 20VA to 25KVA toroidal transformer.

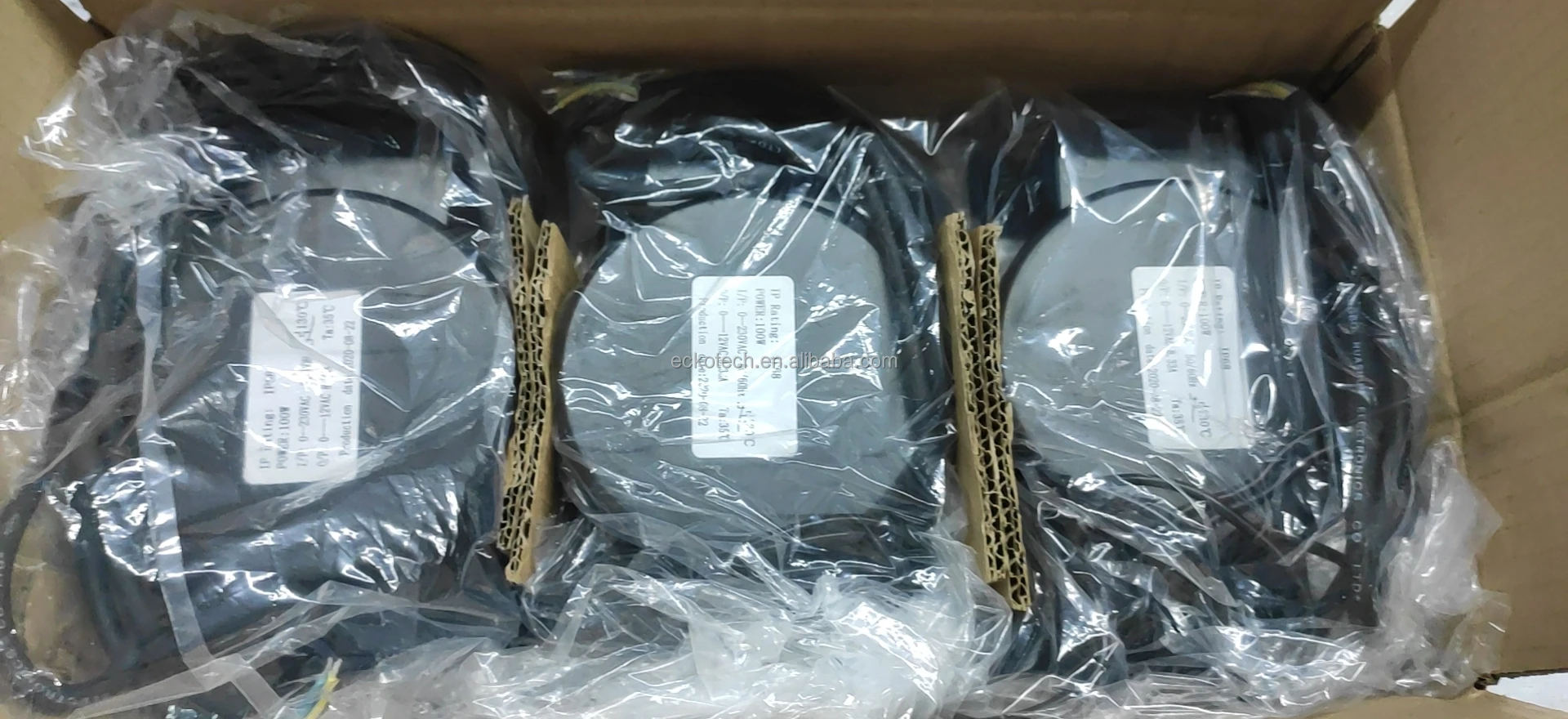

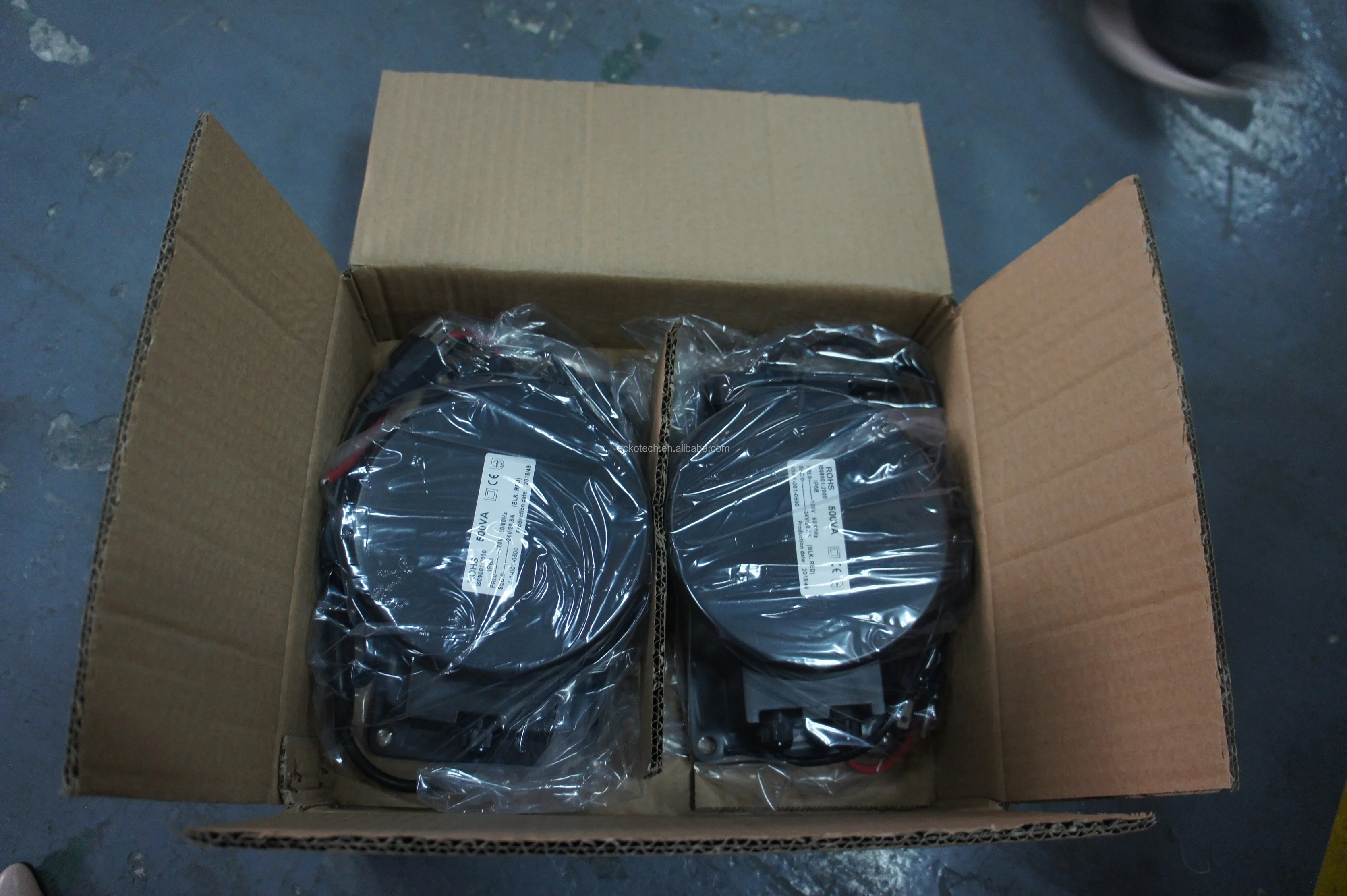

Packing&Shipping

Outdoor Lighting Project Waterproof Power Transformer 220V to 24V 200W Wide Temp Anti-Corrosion Stable Frequency 50Hz supplier

Our Services & Strength

R&D Team:

To develop different kinds of transformers to you

Strict Process & Control:

To better control the quality, lead time, cost for you.

100% Inspection:

To ensure the good quality for you.

Professional Exporting:

To deliver our best service and professional support to you.

Our business center has 24 hours online service:
customers from all over the world no time difference. we will be provide timely suggestions and solutions to orders, products
schedule, technology and inquiries. Welcome to contact with us and visit our factory
