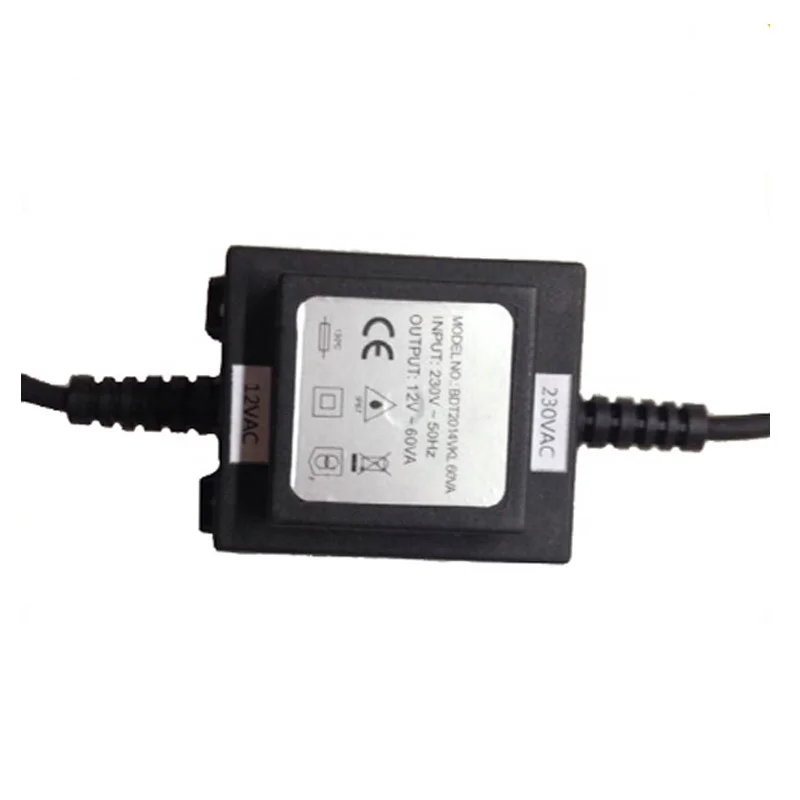

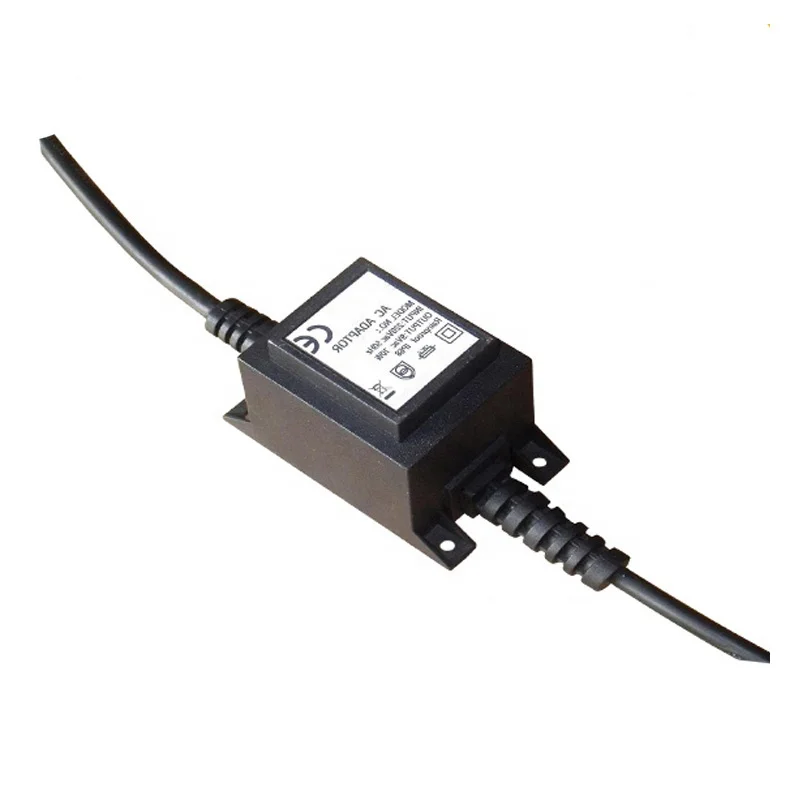

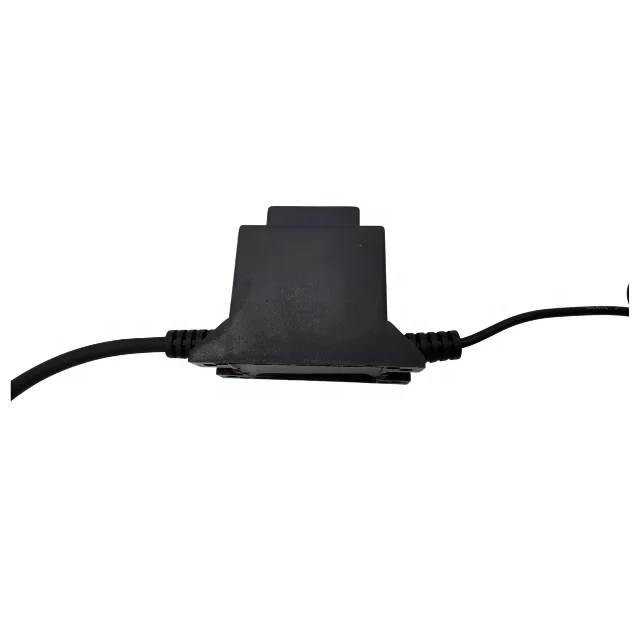

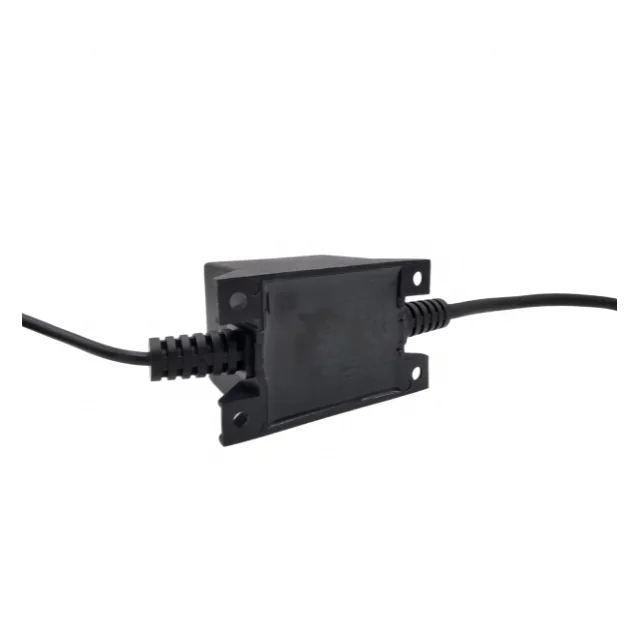

Factory Direct Square Waterproof Transformer 50/60 Hz IP68 Protection Multi Power Option 12V/24V Output From 220V/380V Input
This industrial-grade waterproof transformer delivers reliable power conversion with IP68 protection, making it ideal for outdoor and underwater applications. Engineered for maximum versatility, it efficiently converts 220V/380V input to either 12V or 24V DC output at 50/60 Hz frequency. The robust square design features complete encapsulation to prevent water ingress, ensuring safe and stable performance even in challenging environments. Perfect for outdoor lighting systems, fountain equipment, underwater installations, and other moisture-prone settings. Factory-direct pricing offers excellent value while maintaining high quality and safety standards. This transformer combines durability, flexibility, and dependable performance, making it an excellent choice for both commercial and industrial power conversion needs. All units undergo rigorous testing to meet international safety certifications.
- Overview
- Recommended Products
Waterproof transformer widely use in Landscape, outdoor engineering lighting, LED wall washer, LED underwater lamp,
LED underground lamp, etc.
Technical specifications:
* Input voltage: Customized
* Frequency: 50-60Hz
* Output voltage: Customized
* According to: EN61558
* Test/insulating voltage: 4kV AC RMS
* Construction class: II
* Insulation class: B (130°C)
* Ambient temp. (ta): 25°C
* Frequency: 50-60Hz
* Output voltage: Customized
* According to: EN61558
* Test/insulating voltage: 4kV AC RMS
* Construction class: II
* Insulation class: B (130°C)
* Ambient temp. (ta): 25°C
Model |
A |
B |
C |
D |
E |
F |
Power |
EKB-EI66 |
94.0 |
63.0 |
69.0 |
83.0 |
48.0 |
4.3 |
40-60W |
EKB-EI86 |
129.0 |
85.0 |
83.5 |
112.0 |
66.0 |
6.3 |
100-150W |
EKB-EI86 |
151.0 |
93.5 |
98.0 |
131.0 |
66.5 |
6.3 |
200-250W |
EKB-EI114 |
164.0 |
110.0 |
151.0 |
142.0 |
76.0 |
6.3 |
300-400W |
EKB-EI133 |
230.0 |
153.0 |
140.0 |
198.0 |
115.0 |
6.3 |
500-600W |
*The parameter is only for reference as typical data, customized are welcomed.
*We are able to provide you 20VA to 600VA squarewaterproof transformer.
*We are able to provide you 20VA to 600VA squarewaterproof transformer.
